Finex

Finex Air Spray Pressure Feed Gun, conventional, 0.039 in (1.0 mm) needle/ nozzle size

Part Number: 289252

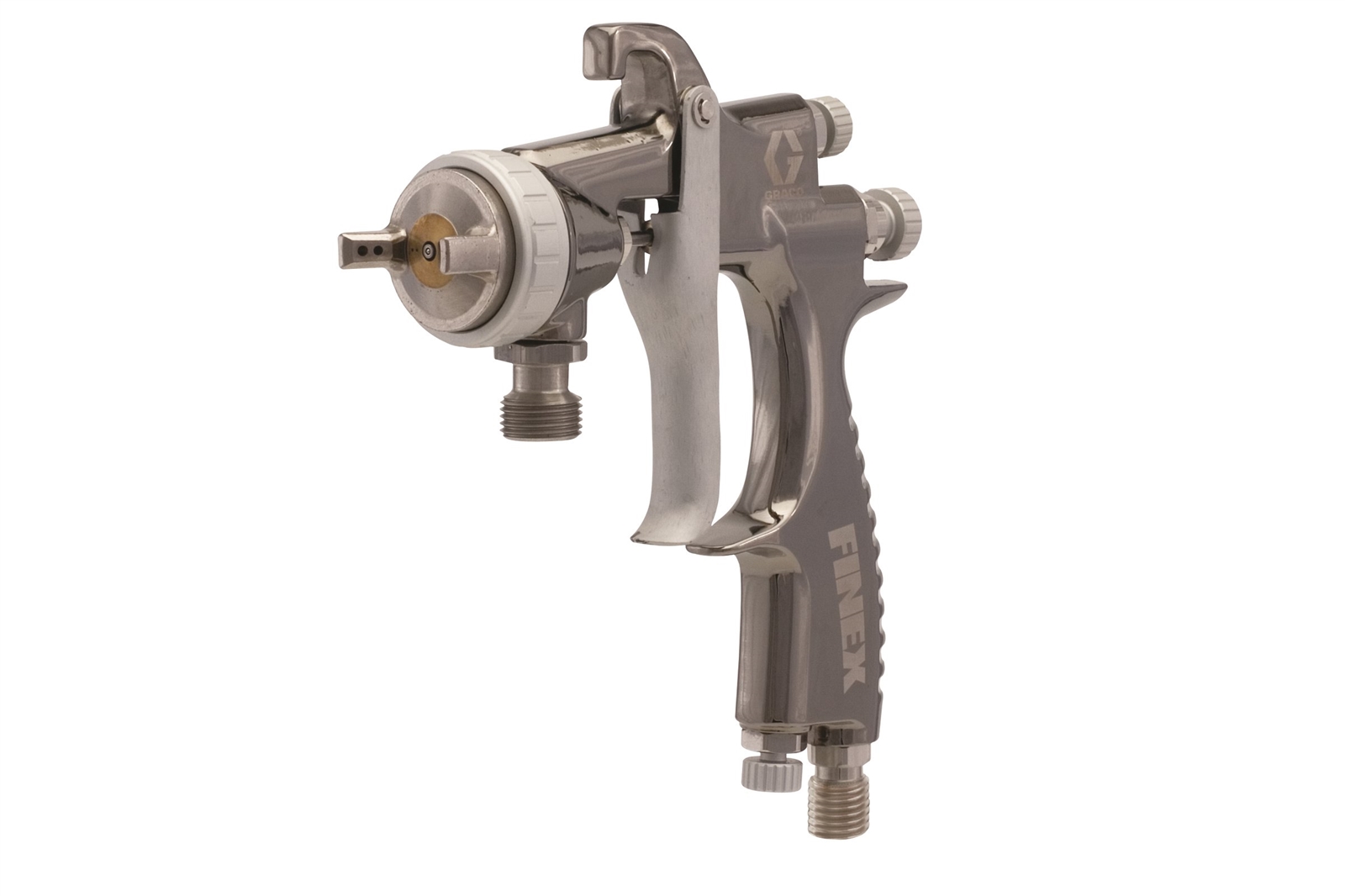

product image
Image is for illustrative purposes only.

Finex

Finex Air Spray Pressure Feed Gun, conventional, 0.039 in (1.0 mm) needle/ nozzle size

Part Number: 289252

Well-balanced and lightweight, the Finex gun design offers a more affordable way to spray. Available in either pressure feed or gravity feed guns options and HVLP or conventional technologies.
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
Well-balanced and lightweight, the Finex gun design offers a more affordable way to spray. Available in either pressure feed or gravity feed guns options and HVLP or conventional technologies.
  • Aircaps optimized for high quality spray performance
  • Lightweight, ergonomic gun
  • Lightest trigger pull in its category
  • Integrated air inlet adjustment

Specifications & Documents

Technical Specifications

Convert to Metric
Air Inlet Size (in) 1/4
Air Inlet Thread Type NPSM
Applicator Type Manual
Bleed Type Non-Bleeder
Body Material Metal
Compatible Material Epoxies, High Solids, Latex, Plural Component Materials, Sealants, Solventborne, Urethane, Waterborne
Feed Type Pressure Feed
Fluid Inlet Size (in) 3/8
Fluid Inlet Thread Type NPSM
Fluid Orifice Size (in) 0.039
Gun Activation Manual
Gun Included 1
Gun Type Conventional Gun
Gun Weight (lb) 0.8
Includes Air Cap, Needle Assembly, Nozzle, Tool Kit
Maximum Air Inlet Pressure (MPa) 0.7
Maximum Air Inlet Pressure (psi) 100
Maximum Air Pressure (MPa) 0.7
Maximum Air Pressure (psi) 100
Maximum Fluid Pressure (MPa) 0.7
Maximum Fluid Pressure (psi) 100
Maximum Fluid Temperature (°F) 109
Model Finex
Product Type Spray Gun
Spray Pattern Flat
Spray Type Air Spray
Technology Type Conventional
Trigger Lock Non-Locking
Trigger Type Two-Finger
Type Spray Gun
Air Inlet Size (cm) 0.635
Air Inlet Size (in) 1/4
Air Inlet Size (mm) 6.35
Air Inlet Thread Type NPSM
Applicator Type Manual
Bleed Type Non-Bleeder
Body Material Metal
Compatible Material Epoxies, High Solids, Latex, Plural Component Materials, Sealants, Solventborne, Urethane, Waterborne
Feed Type Pressure Feed
Fluid Inlet Size (cm) 0.9525
Fluid Inlet Size (in) 3/8
Fluid Inlet Size (mm) 9.525
Fluid Inlet Thread Type NPSM
Fluid Orifice Size (cm) 0.10
Fluid Orifice Size (in) 0.039
Fluid Orifice Size (mm) 1.0
Gun Activation Manual
Gun Included 1
Gun Type Conventional Gun
Gun Weight (kg) 0.37
Includes Air Cap, Needle Assembly, Nozzle, Tool Kit
Maximum Air Inlet Pressure (MPa) 0.7
Maximum Air Inlet Pressure (bar) 7
Maximum Air Inlet Pressure (kPa) 700
Maximum Air Inlet Pressure (psi) 100
Maximum Air Pressure (MPa) 0.7
Maximum Air Pressure (bar) 7
Maximum Air Pressure (kPa) 700
Maximum Air Pressure (psi) 100
Maximum Fluid Pressure (MPa) 0.7
Maximum Fluid Pressure (bar) 7
Maximum Fluid Pressure (kPa) 700
Maximum Fluid Pressure (psi) 100
Maximum Fluid Temperature (°C) 43
Model Finex
Product Type Spray Gun
Spray Pattern Flat
Spray Type Air Spray
Technology Type Conventional
Trigger Lock Non-Locking
Trigger Type Two-Finger
Type Spray Gun

Repair Parts

Part No. Description
24C314 HPTCM Fixed Hoseheat Wire Harness
