Wolverine ND
Wolverine® ND Fluid Module, 1/2 inch Plunger, FFKM Seals, Chromex Coated Rod
Part Number: 2A30603ND

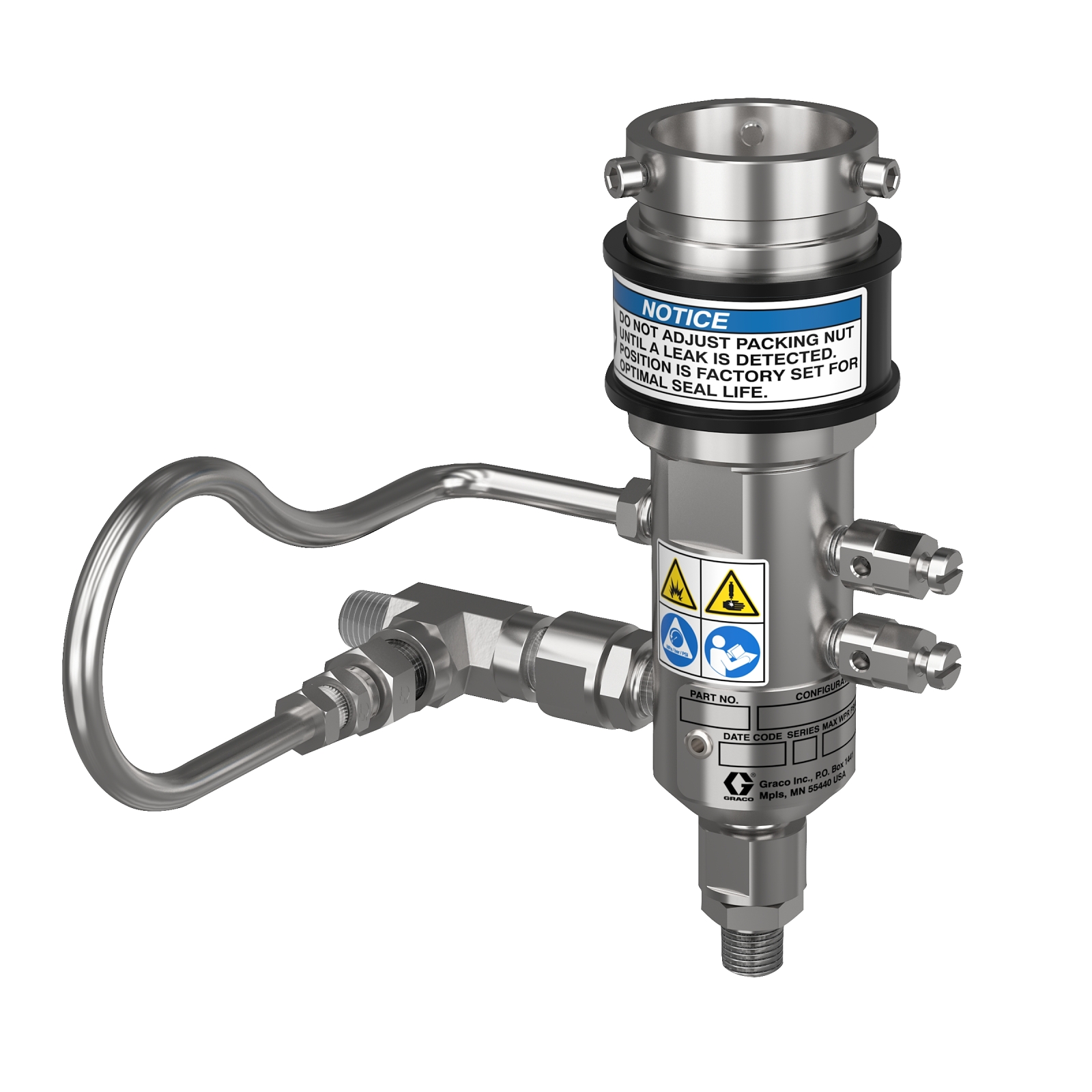

Image is for illustrative purposes only.
Wolverine ND
Wolverine® ND Fluid Module, 1/2 inch Plunger, FFKM Seals, Chromex Coated Rod
Part Number: 2A30603ND
Wellsite chemical spillage can pose significant environmental, safety and regulatory risks. Graco Wolverine ND fluid modules are designed to eliminate chemical leaks via a flexible return hose assembly, helping you to avoid hazardous maintenance and limit environmental impact.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
Wellsite chemical spillage can pose significant environmental, safety and regulatory risks. Graco Wolverine ND fluid modules are designed to eliminate chemical leaks via a flexible return hose assembly, helping you to avoid hazardous maintenance and limit environmental impact.
- Can be assembled on any Wolverine series pump or retrofit onto with 3rd party pumps.
- Flexible return hose assembly helps return chemicals to the module's suction side if they circumvent seals.
- Designed for quick installation and easy access to the v-packings.
- Second set of V-packing seals add protection and keeps chemicals out of the fluid chamber.
- Poppet style check valves for improved dosing accuracies.
- 316 stainless steel construction offers superior corrosion resistance and chemical compatibility.
- Spin-off design gives quick access to the pump plunger and packings
- Includes Fluid Module for Wolverine Pump only
Specifications & Documents
Technical Specifications
Convert to Metric| Approvals | N/A |
|---|---|
| Model | Wolverine |
| Plunger Size (in) | 1/2 |
| Pump Material | 316 Stainless Steel |
| Seal Material | FFKM |
| Series | ND |
| Standards Met | N/A |
| Type | Fluid Module |
| Voltage | N/A |
| Approvals | N/A |
| Model | Wolverine |
| Pump Material | 316 Stainless Steel |
| Seal Material | FFKM |
| Series | ND |
| Standards Met | N/A |
| Type | Fluid Module |
| Voltage | N/A |
Product Manuals
Sales Literature
Certifications
MSD201EN, Loctite 567 Low Strength Thread Sealant, Safety Data Sheet, English
(141 KB)
(English Only)
