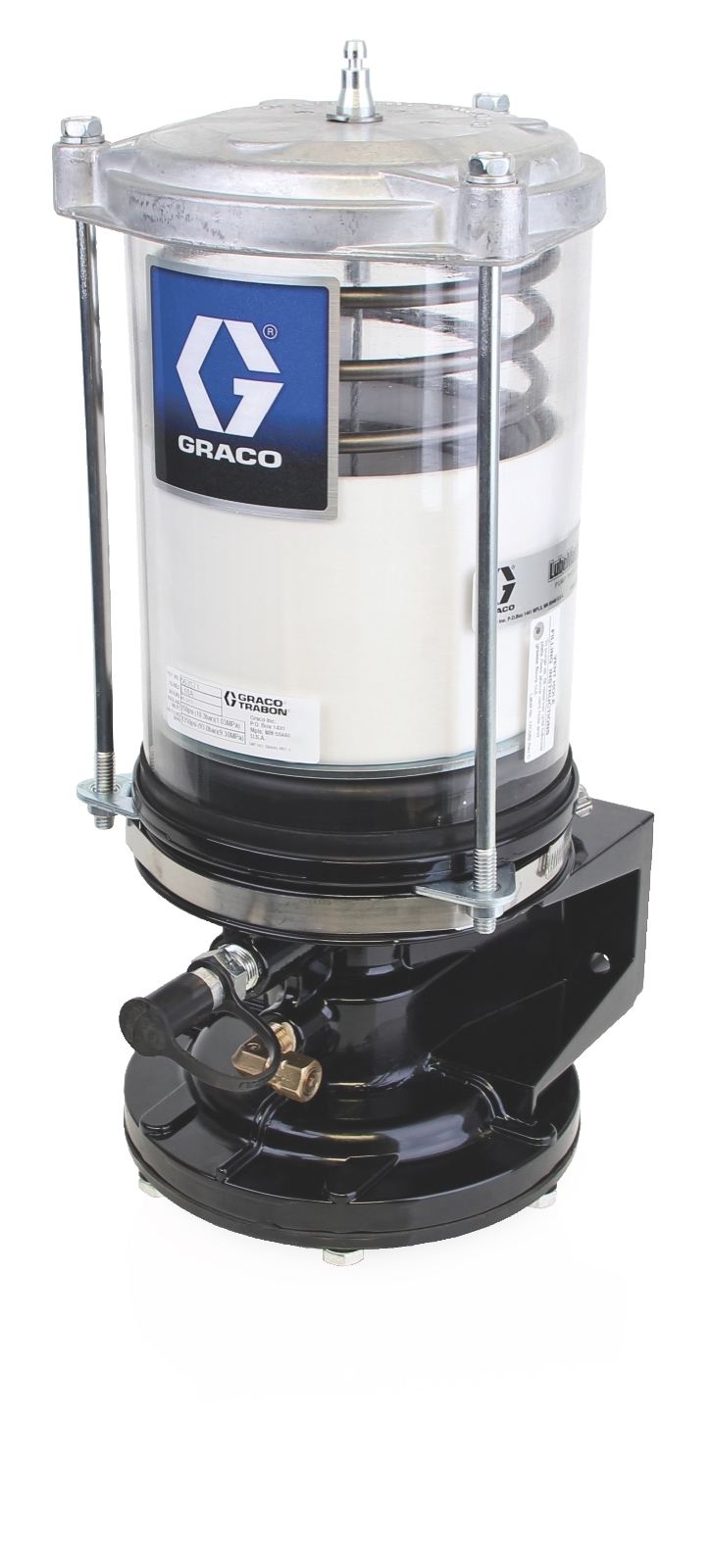

LubriSystem Standard Air Operated Pump with 6 lb. (2.72 kg) Plastic Cylindrical Reservoir - Grease
Part Number: 563571
LubriSystem
LubriSystem Standard Air Operated Pump with 6 lb. (2.72 kg) Plastic Cylindrical Reservoir - Grease
Part Number: 563571
Easy to design, modify and adjust for oil or grease applications large or small. Great for operation of piston distributors. Rugged construction maximizes your productivity - upgrading to the internal timer control completely automates the system. All packages include internal pressure relief, so no...
More InfoIf you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
Easy to design, modify and adjust for oil or grease applications large or small. Great for operation of piston distributors. Rugged construction maximizes your productivity - upgrading to the internal timer control completely automates the system. All packages include internal pressure relief, so no need to install extra parts with additional costs. Combine with LubriSystem injectors for easy, low cost system design solutions.
Air Operated Pump for Single Line Parallel Systems
- Ability to serve large systems - up to 100 lube points or more
- Efficient design promotes increased productivity and less downtime
- 6 lb (2.72 kg) reservoir for grease applications
- Lubriquip part number 550-000-050
Specifications & Documents
Technical Specifications
Convert to Metric| Application | In-Plant Machinery |
|---|---|
| Compatible Material | Grease |
| Compatible Metering Device | Single Line Parallel |
| Includes | LubriSystem Pump w/6 lb (2.72 kg) Plastic Cylindrical Reservoir |
| Material | Plastic |
| Maximum Air Inlet Pressure (psi) | 150 |
| Maximum Fluid Output Pressure (psi) | 1350 |
| Maximum NLGI Grade | #1 |
| Maximum Working Pressure (MPa) | 9.3 |
| Maximum Working Pressure (psi) | 1350 |
| Minimum Air Inlet Pressure (psi) | 40 |
| Model | LubriSystem |
| Power Type | Pneumatic |
| Reservoir Size (lb) | 6 |
| Type | Pneumatic Piston Pump |
| Application | In-Plant Machinery |
| Compatible Material | Grease |
| Compatible Metering Device | Single Line Parallel |
| Includes | LubriSystem Pump w/6 lb (2.72 kg) Plastic Cylindrical Reservoir |
| Material | Plastic |
| Maximum Air Inlet Pressure (bar) | 10.34 |
| Maximum Air Inlet Pressure (kPa) | 1034 |
| Maximum Air Inlet Pressure (psi) | 150 |
| Maximum Fluid Output Pressure (bar) | 93 |
| Maximum Fluid Output Pressure (psi) | 1350 |
| Maximum NLGI Grade | #1 |
| Maximum Working Pressure (MPa) | 9.3 |
| Maximum Working Pressure (bar) | 93.1 |
| Maximum Working Pressure (kPa) | 9310 |
| Maximum Working Pressure (psi) | 1350 |
| Minimum Air Inlet Pressure (psi) | 40 |
| Model | LubriSystem |
| Power Type | Pneumatic |
| Type | Pneumatic Piston Pump |
