Auto-Fill Shut Off Retrofit kit for Electric Dyna-Star Pump and Reservoir

Part Number: 77X521

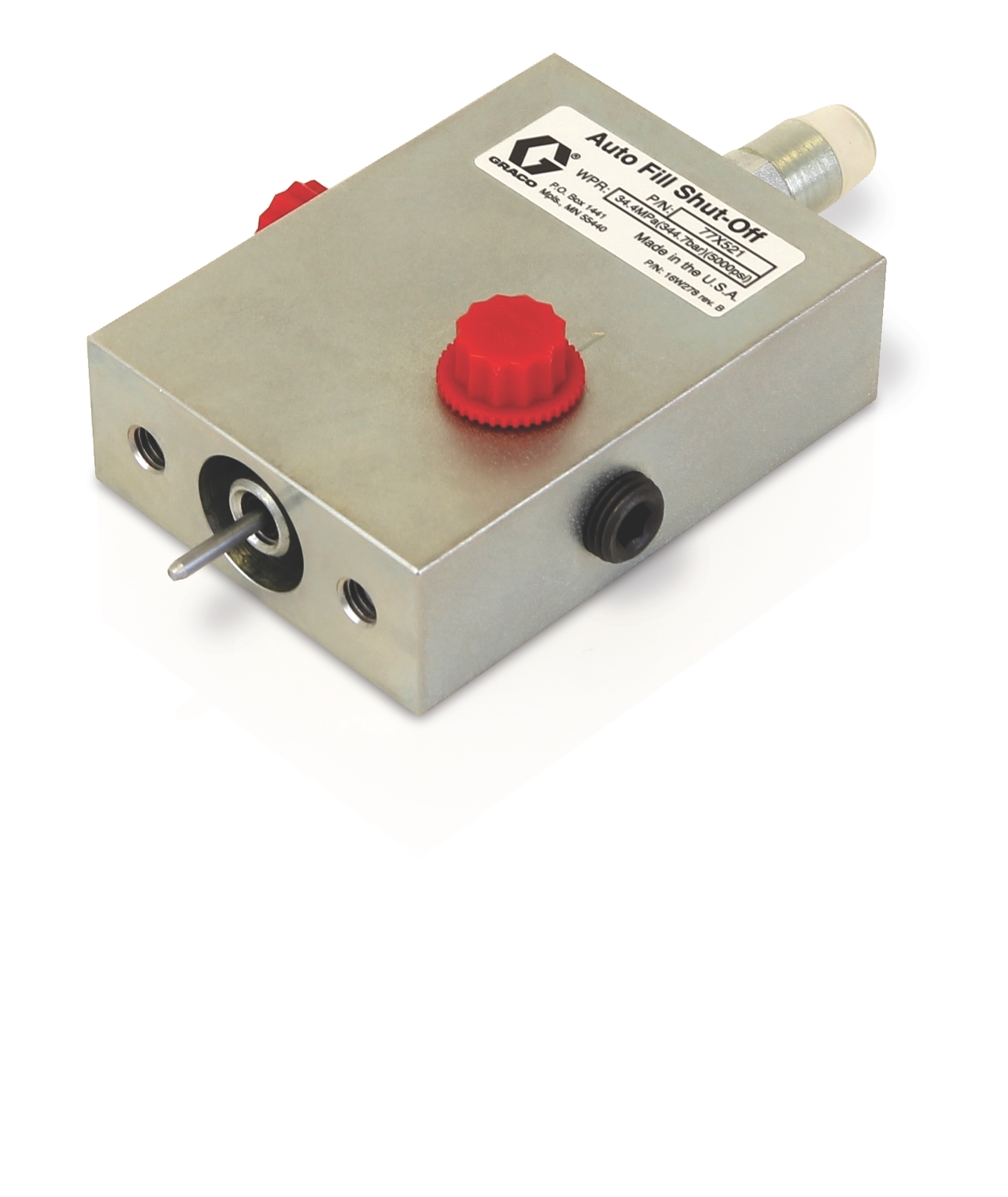

product image
Image is for illustrative purposes only.

Auto-Fill Shut Off Retrofit kit for Electric Dyna-Star Pump and Reservoir

Part Number: 77X521

Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure

For Electric Dyna-Star® Pump Systems

  • Remote Fill Manifold and Auto-Fill Shut Off Kit
  • Ground-level fill port eliminates climbing
  • Spill-free, single-person operations
  • Mechanical system enables mine-safety, powered-down, refilling best practices

Specifications & Documents

Technical Specifications

Convert to Metric
Application In-Plant Machinery, Off-Road Equipment
Compatible Material Grease
For Use With Electric Dyna-Star HP and HF Pumps
Includes Auto-Fill Shut Off Valve, Diaphragm Assembly, Tubes, Fittings, Hardware
Inlet Size (in) 3/8
Inlet Thread Gender Female
Inlet Thread Type NPT
Maximum Working Pressure (MPa) 34.5
Maximum Working Pressure (psi) 5000
Outlet Size (in) 3/8
Outlet Thread Gender Female
Outlet Thread Type NPT
Type Shut-Off Valve
Application In-Plant Machinery, Off-Road Equipment
Compatible Material Grease
For Use With Electric Dyna-Star HP and HF Pumps
Includes Auto-Fill Shut Off Valve, Diaphragm Assembly, Tubes, Fittings, Hardware
Inlet Size (cm) 0.9525
Inlet Size (in) 3/8
Inlet Size (mm) 9.525
Inlet Thread Gender Female
Inlet Thread Type NPT
Maximum Working Pressure (MPa) 34.5
Maximum Working Pressure (bar) 344
Maximum Working Pressure (kPa) 34400
Maximum Working Pressure (psi) 5000
Outlet Size (cm) 0.9525
Outlet Size (in) 3/8
Outlet Size (mm) 9.525
Outlet Thread Gender Female
Outlet Thread Type NPT
Type Shut-Off Valve
