Harrier® EZ-B controller
Part Number: B32707

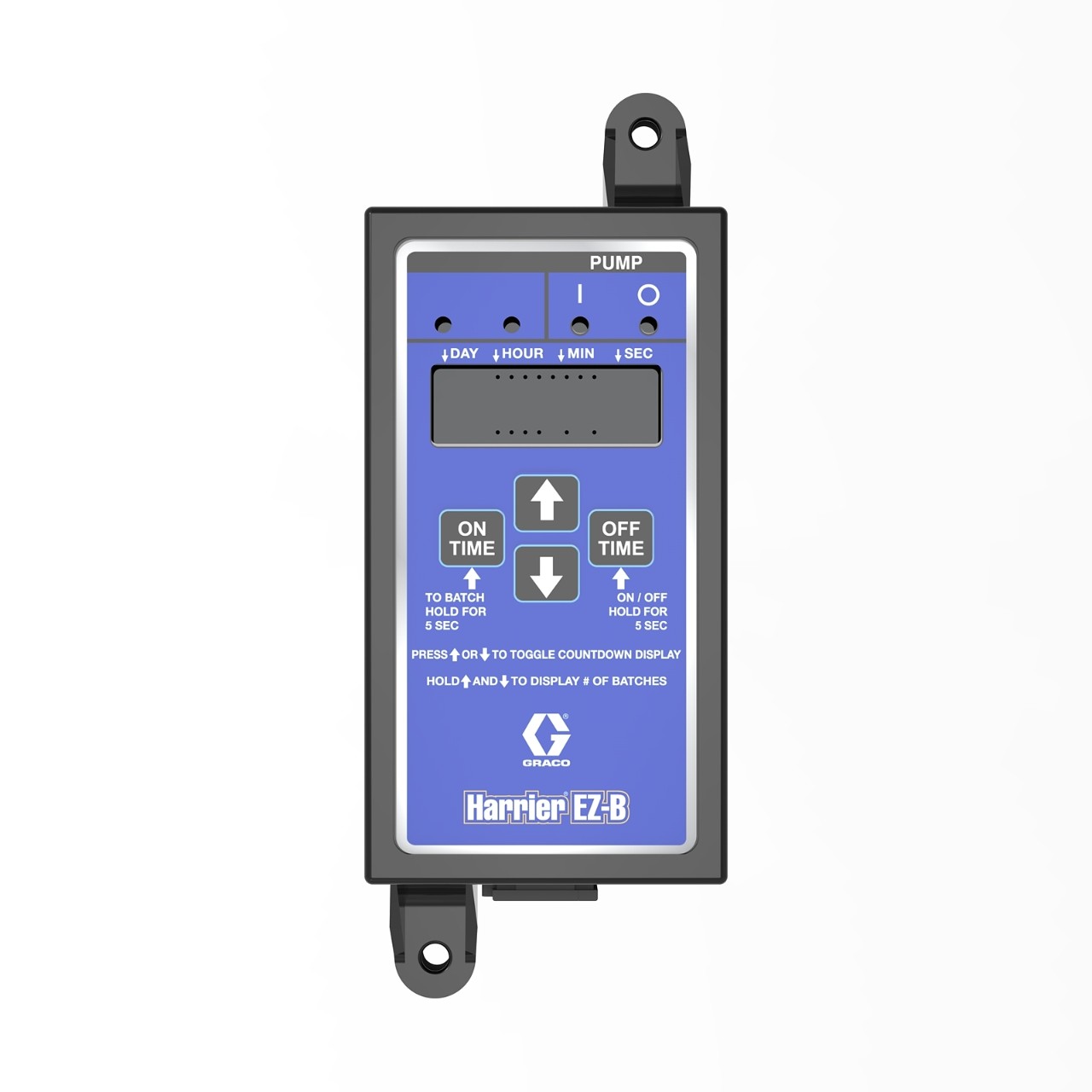

Image is for illustrative purposes only.
Harrier® EZ-B controller
Part Number: B32707
The Harrier EZ-B is a time based controller that can be used for batch treating. The interface is similar to the Harrier EZ so it's simple to setup and operate.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
The Harrier EZ-B is a time based controller that can be used for batch treating. The interface is similar to the Harrier EZ so it's simple to setup and operate.
The Harrier EZ-B Controller provides reliable and accurate means of injecting a single dose of chemical over a specified time duration. This is suitable for batch treating wells and pipelines.
- Batch treatment control
- Easy to use contoller interface
- Can be used with 3rd party pumps
- Similar feature to the Harrier EZ controller
Specifications & Documents
Technical Specifications
Convert to Metric| Amperage (A) | 16 |
|---|---|
| Application | Batch Treatment |
| Control Mode | Time Mode |
| Current Consumption (A) | 3 |
| Maximum Operating Temperature (°F) | 131 |
| Maximum Storage Temperature (°F) | 176 |
| Maximum Voltage (V dc) | 26 |
| Minimum Operating Temperature (°F) | -40 |
| Power Source | DC |
| Power Type | Solar |
| Product Type | Controller |
| Pump Control Max Switching Current (A) | 16 |
| Pump Control Voltage (VDC) | 26 |
| Type | Controller |
| Amperage (A) | 16 |
| Application | Batch Treatment |
| Control Mode | Time Mode |
| Current Consumption (A) | 3 |
| Maximum Operating Temperature (°C) | 55 |
| Maximum Storage Temperature (°C) | 80 |
| Maximum Voltage (V dc) | 26 |
| Minimum Operating Temperature (°C) | -40 |
| Power Source | DC |
| Power Type | Solar |
| Product Type | Controller |
| Pump Control Max Switching Current (A) | 16 |
| Pump Control Voltage (VDC) | 26 |
| Type | Controller |
Product Manuals
3A8606A, Manual, Harrier EZ Chemical Injection Controller, Instructions, English
(1 MB)
(English Only)
