Husky 205

Husky 205 AC Pump, Remote PP Center Section, AC Balls & SP Diaphragm

Part Number: D21026

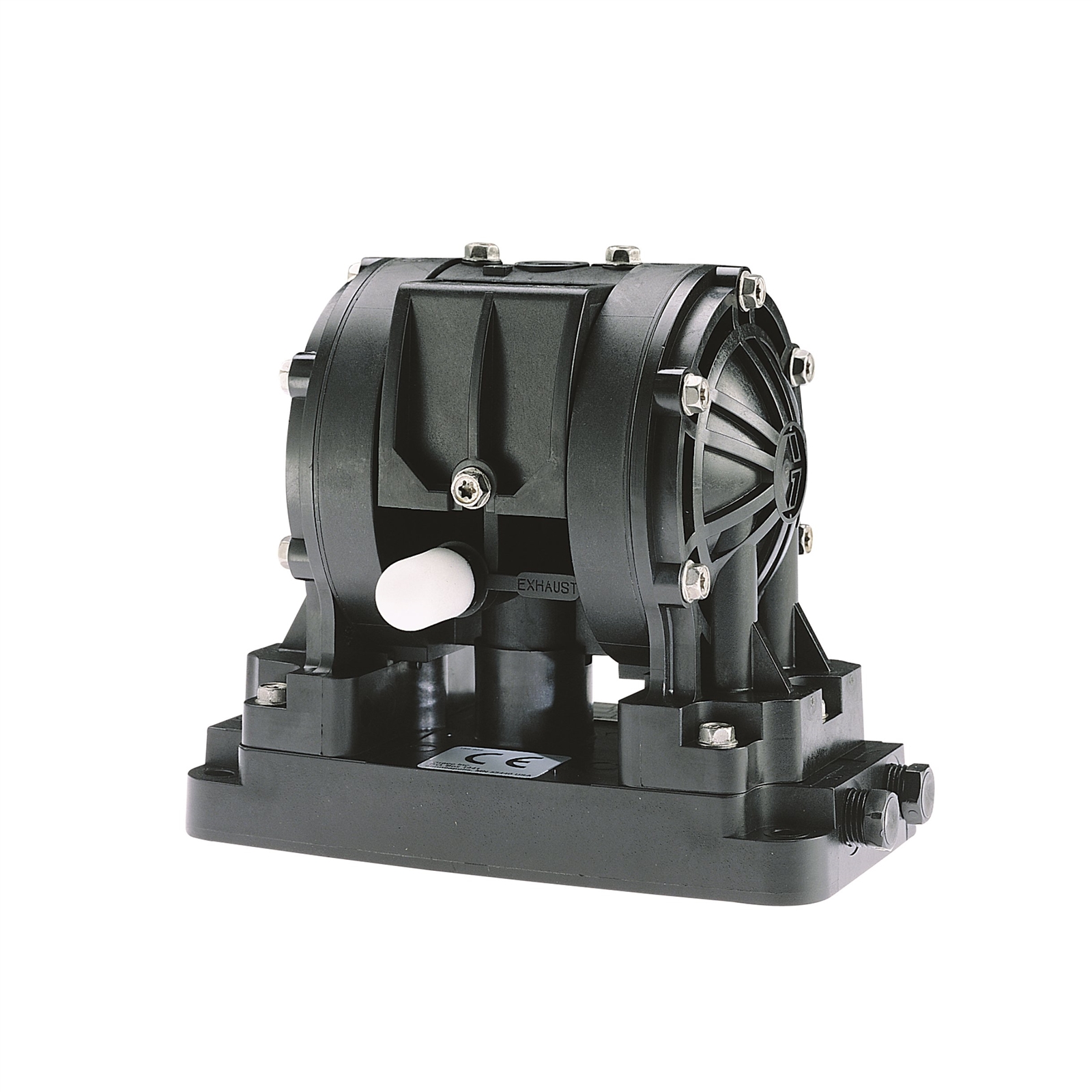

product image

Husky 205

Husky 205 AC Pump, Remote PP Center Section, AC Balls & SP Diaphragm

Part Number: D21026

Our Husky air-operated double diaphragm pumps are loaded with features to help you get the job done right, every time, and are built to save you money.

Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure

Our Husky air-operated double diaphragm pumps are loaded with features to help you get the job done right, every time, and are built to save you money.

The Husky 205 air-operated diaphragm pump features spring check valves for superior priming in any mounting configuration.

  • True-formed PTFE and Santoprene diaphragms for enhanced performance
  • Spring loaded checks allow the diaphragm pump to work in any orientation
  • Inlet and Outlet are interchangeable
  • Remote control option using an external controller
  • 1/4-in (6.35 mm) end-porting double diaphragm pump

Specifications & Documents

Technical Specifications

Convert to Metric
Air Exhaust Port Size (in) 1/4
Air Exhaust Port Thread Gender Female
Air Exhaust Port Thread Type NPT, BSP
Air Inlet Size (in) 1/4
Air Inlet Thread Gender Female
Air Inlet Thread Type NPT, BSP
Application Industrial
Ball Material Acetal
Center Section Material Polypropylene
Compatible Material Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Water - Wastewater Treatment, Water, Ink
Connection Type Threaded
Diaphragm Compatible Material Santoprene
Diaphragm Material Santoprene
Fluid Inlet Size (in) 1/4
Fluid Inlet Thread Gender Female
Fluid Inlet Thread Type NPT, BSPT
Fluid Outlet Size (in) 1/4
Fluid Outlet Thread Gender Female
Fluid Outlet Thread Type NPT, BSPT
Fluid Section Material Acetal
Manifold Configuration End Port
Manifold O-Ring Material PTFE Encapsulated Fluoroelastomer
Material Acetal
Maximum Air Consumption (SCFM) 9
Maximum Air Pressure (MPa) 0.69
Maximum Air Pressure (psi) 100
Maximum Cycle Rate (CPM) 320
Maximum Flow Rate (GPM) 5
Maximum Fluid Pressure (MPa) 0.69
Maximum Fluid Pressure (psi) 100
Maximum Operating Temperature (°F) 180
Maximum Solid Size (in) 0.06
Model Husky
Power Source Air
Seat Material Acetal
Series 205
Standards Met ATEX, CE
Type Pneumatic Diaphragm Pump
Weight (lb) 2.5
Air Exhaust Port Size (in) 1/4
Air Exhaust Port Thread Gender Female
Air Exhaust Port Thread Type NPT, BSP
Air Inlet Size (in) 1/4
Air Inlet Thread Gender Female
Air Inlet Thread Type NPT, BSP
Application Industrial
Ball Material Acetal
Center Section Material Polypropylene
Compatible Material Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Water - Wastewater Treatment, Water, Ink
Connection Type Threaded
Diaphragm Compatible Material Santoprene
Diaphragm Material Santoprene
Fluid Inlet Size (cm) 0.635
Fluid Inlet Size (in) 1/4
Fluid Inlet Size (mm) 6.35
Fluid Inlet Thread Gender Female
Fluid Inlet Thread Type NPT, BSPT
Fluid Outlet Size (cm) 0.635
Fluid Outlet Size (in) 1/4
Fluid Outlet Size (mm) 6.35
Fluid Outlet Thread Gender Female
Fluid Outlet Thread Type NPT, BSPT
Fluid Section Material Acetal
Manifold Configuration End Port
Manifold O-Ring Material PTFE Encapsulated Fluoroelastomer
Material Acetal
Maximum Air Pressure (MPa) 0.69
Maximum Air Pressure (bar) 6.9
Maximum Air Pressure (kPa) 690
Maximum Air Pressure (psi) 100
Maximum Cycle Rate (CPM) 320
Maximum Flow Rate (L/min) 18.9
Maximum Fluid Pressure (MPa) 0.69
Maximum Fluid Pressure (bar) 6.9
Maximum Fluid Pressure (kPa) 690
Maximum Fluid Pressure (psi) 100
Maximum Operating Temperature (°C) 82
Maximum Solid Size (cm) 0.15
Maximum Solid Size (mm) 1.5
Model Husky
Power Source Air
Seat Material Acetal
Series 205
Standards Met ATEX, CE
Type Pneumatic Diaphragm Pump

Repair Parts

Part No. Description
D01006 Diaphragm Kit
D01020 Ball Kit
238853 KIT, REPAIR, AIR, 205
D01026 KIT,205 IND --,AC,SP,PF-PT
