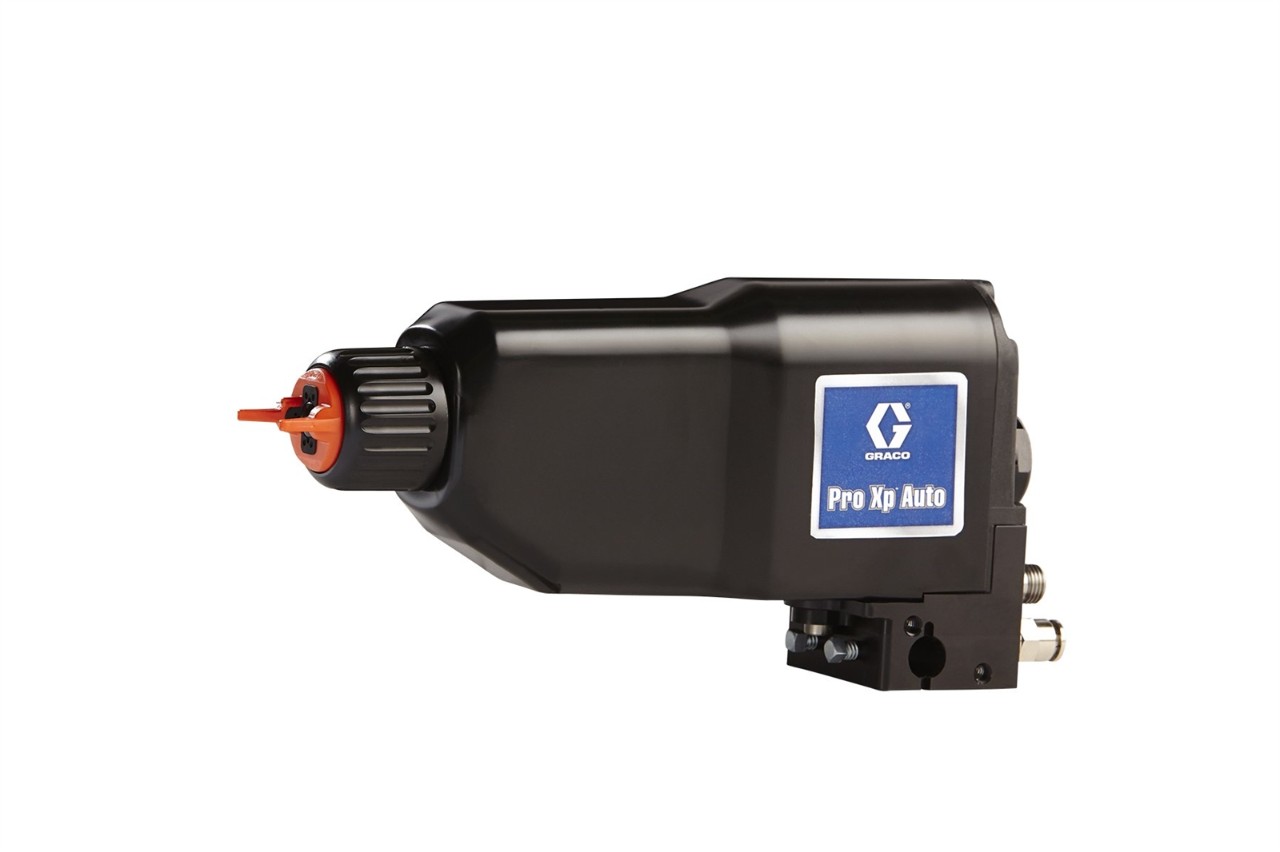

Pro Xp Auto Air-Assist Electrostatic Spray Gun, smart model, with rear manifold, 85 kV, includes AEM or AEF tip of choice

HA1M10

Pro Xp Auto

Pro Xp Auto Air-Assist Electrostatic Spray Gun, smart model, with rear manifold, 85 kV, includes AEM or AEF tip of choice

HA1M10

Pro Xp Auto Air-Assist has an 85 kV power supply and internal power so there’s no electrical cord to damage or replace. Smart gun models connect to a control module for kV control and displaying gun performance. Ideal for high pressure spraying designed to improve transfer efficiency and deliver a h... More Info
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
Pro Xp Auto Air-Assist has an 85 kV power supply and internal power so there’s no electrical cord to damage or replace. Smart gun models connect to a control module for kV control and displaying gun performance. Ideal for high pressure spraying designed to improve transfer efficiency and deliver a high quality finish.
  • Versatile product line gives you more models to choose from and greater spraying flexibility with air spray, air assist and waterborne guns
  • Manifold style fits almost any systems requirement - back manifold is ideal for stationary and reciprocator systems and bottom manifold is ideal for robot mounting
  • 85 kV power supply and internal power so there's no electrical cord to worry about damaging or replacing
  • Higher transfer efficiency equals less waste, saving you money on material
  • Durable components reduce cost of ownership, supported by a three year warranty

Specifications

Technical Specifications

Convert to Metric
Air Inlet Size (in) 1/4
Air Inlet Thread Gender Male
Air Inlet Thread Type NPSM
Application Electrostatic, Standard
Applicator Type Automatic
Coating Type Standard
Compatible Paint Type Solventborne
Display Type Smart
Fluid Inlet Size (in) 1/4
Fluid Inlet Thread Gender Male
Fluid Inlet Thread Type NPSM
For Use With Pro Xp Auto Control Module
Gun Activation Automatic
Gun Type Electrostatic
Gun Weight (lb) 2.64
Gun Weight (oz) 42.24
Manifold Type Rear
Maximum Fluid Pressure (MPa) 21
Maximum Fluid Pressure (psi) 3000
Maximum Fluid Temperature (°F) 120
Model Pro Xp
Overall Length (in) 11
Series Auto
Spray Type Electrostatic
Technology Type Air-Assisted
Type Electrostatic Gun
Voltage (kV) 85
Air Inlet Size (cm) 0.635
Air Inlet Size (mm) 6.35
Air Inlet Thread Gender Male
Air Inlet Thread Type NPSM
Application Electrostatic, Standard
Applicator Type Automatic
Coating Type Standard
Compatible Paint Type Solventborne
Display Type Smart
Fluid Inlet Thread Gender Male
Fluid Inlet Thread Type NPSM
For Use With Pro Xp Auto Control Module
Gun Activation Automatic
Gun Type Electrostatic
Gun Weight (g) 1197
Gun Weight (kg) 1.2
Manifold Type Rear
Maximum Fluid Pressure (MPa) 21
Maximum Fluid Pressure (bar) 210
Maximum Fluid Pressure (kPa) 21000
Maximum Fluid Temperature (°C) 48
Maximum Paint Resistivity (megohm/cm) Infinity
Minimum Paint Resistivity (megohm/cm) 3
Model Pro Xp
Overall Length (cm) 27.94
Overall Length (mm) 279.4
Series Auto
Spray Type Electrostatic
Technology Type Air-Assisted
Type Electrostatic Gun
Voltage (kV) 85

Repair Parts

Part No. Description
24N274 Air Cap, Black, short pattern, optimized for painting with overlapping passes, light to medium fluid viscosity, tapered end
24N277 Air Cap, Red, long pattern, optimized for painting large parts with overlapping passes, light to medium viscosity, tapered end
24N439 Air Cap, Black, use with 2.0 mm nozzles, medium and heavy viscosity and high solid coatings at high production rates, tapered end
24N453 Air Cap, Black, light to medium fluid viscosity, round end
24N613 Fluid Nozzle, for standard coatings, 0.75 mm (.029 inch) Orifice Size, Black
24N618 Fluid nozzle, for standard coatings, 2.0 mm (.079 inch) Orifice Size, Black
24N619 Fluid nozzle, for standard coatings, 0.55 mm (.022 inch) Orifice Size, Black
24N621 High Wear Fluid Nozzle for Abrasive Materials, 1.0 mm (.042 inch) Orifice Size, Blue
24N704 High Wear Electrode Needle Kit
24N706 Bearing Replacement Kit for Pro Xp™ Electrostatic Air Spray Gun
24W390 Air Seal Repair Kit
24R038 Voltage Tester Conversion Kit, converts the 245277 Test Fixture for use with the Pro Xp Gun alternator
24N275 Air Cap, Black, optimized for aerospace coatings, light to heavy viscosity and high solids coatings, tapered end
24N477 Air Cap, Black, 15-17 in (381-432 mm) length, light to medium viscosity, round end
24N616 Fluid Nozzle for Standard Materials, 1.5 mm Orifice Size
24N620 High Wear Fluid Nozzle for Abrasive Materials, 0.75 mm (.029 inch) Orifice Size, Blue
245895 Agitator Kit
245944 Fluid Regulator Kit
24N279 Air Cap, Black, optimized for medium and heavy viscosity and high solid coatings at standard production rates, round end
24N318 Round Spray Kit, to convert a standard air spray gun to a round spray pattern
24N376 Air Cap, Black, long pattern, optimized for painting large parts with overlapping passes, light to medium viscosity, tapered end
24N614 Fluid nozzle, for standard coatings, 1.0 mm (.042 inch) Orifice Size, Black
24N617 Fluid nozzle, for standard coatings, 1.8 mm (.070 inch) Orifice Size, Black
24N655 85 kV Packing Rod Assembly
24N664 Turbine Assembly Kit
24N727 Air Cap Assembly Kit for Pro Xp Air-Assisted Gun
24N625 High Wear Fluid Nozzle for Abrasive Materials, 2.0 mm (.079 inch) Orifice Size, Blue
24X287 WB100 Isolation Enclosure
24N278 Air Cap, Green, long pattern, optimized for painting large parts with overlapping passes, light to medium viscosity, tapered end
24N622 High Wear Fluid Nozzle for Abrasive Materials, 1.2 mm (.047 inch) Orifice Size, Blue
24W391 Fluid Seal Repair Kit
24X794 Large Pattern Round Spray Kit, to convert a standard air spray gun to a round spray air cap
24N276 Air Cap, Blue, long pattern, optimized for painting large parts with overlapping passes, light to medium viscosity, tapered end
24N623 High Wear Fluid Nozzle for Abrasive Materials- 1.50 mm Orifice Size
24N624 High Wear Fluid Nozzle for Abrasive Materials, 1.8 mm (.070 inch) Orifice Size, Blue
24N319 Round Spray Kit, to convert a standard air-assisted spray gun to a round spray pattern
24N438 Air Cap, Black, similar to the standard air cap with an alternate arrangement of atomizing air, light to medium viscosity, round end
24N615 Fluid Nozzle for Standard Materials- 1.20 mm Orifice Size
