Pro Xp 40

Pro Xp40 Air Spray Manual Electrostatic General Gun Model, 40 kV, 0.055 in (1.5 mm) nozzle, standard display, standard coatings

L40T10

Pro Xp 40

Pro Xp40 Air Spray Manual Electrostatic General Gun Model, 40 kV, 0.055 in (1.5 mm) nozzle, standard display, standard coatings

L40T10

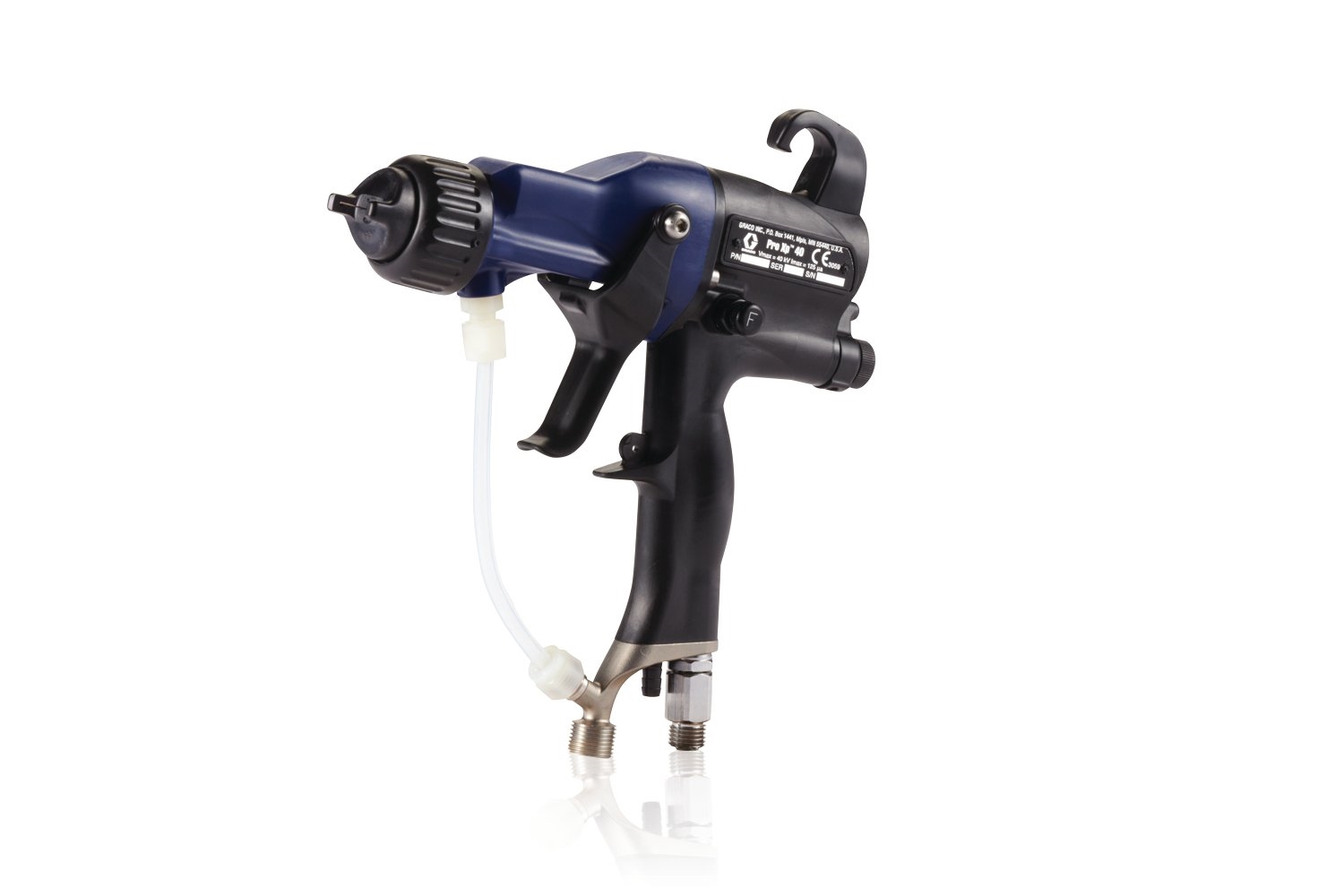

This 40 kV electrostatic air spray gun comes in a compact, lightweight package.
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
This 40 kV electrostatic air spray gun comes in a compact, lightweight package.
  • Each paint spray gun meets strict requirements for spray pattern, mechanical and electrical performance.
  • Durable, easy-to-repair components are backed by a three-year warranty and A+ Service.
  • Painters experience less muscle strain and fatigue when using ergonomic, lightweight gun.
  • Smooth, curved ergonomic handle fits nicely in your hand for more comfortable spraying
  • Rugged, dependable design supported by a three year warranty
  • Every gun is tested and delivered with a certificate indicating the spray pattern, mechanical performance and electrical performance meets Graco's requirements

Specifications

Technical Specifications

Convert to Metric
Air Inlet Size (in) 1/4
Air Inlet Thread Gender Male
Air Inlet Thread Type NPSM
Application Electrostatic, Standard
Applicator Type Manual
Coating Type Standard, Specialty
Compatible Paint Type Automotive, Base Coat, Clear Coat, Enamels, High Solids, Metallics, Plural Component Materials, Primers, Solventborne, Urethanes
Display Type Standard
Fluid Inlet Size (in) 3/8
Fluid Inlet Thread Gender Male
Fluid Inlet Thread Type NPSM
Gun Activation Manual
Gun Type Electrostatic
Gun Weight (lb) 1.23
Gun Weight (oz) 19.75
Includes Air Cap, Nozzle, Tool Kit, Gun Cover, Exhaust Tube
Maximum Fluid Pressure (MPa) 0.7
Maximum Fluid Pressure (psi) 100
Maximum Fluid Temperature (°F) 120
Model Pro Xp
Nozzle Size (in) 0.055
Overall Length (in) 8.7
Series 40
Spray Type Electrostatic
Technology Type Air Spray
Type Electrostatic Gun
Voltage (kV) 40
Air Inlet Size (cm) 0.635
Air Inlet Size (mm) 6.35
Air Inlet Thread Gender Male
Air Inlet Thread Type NPSM
Application Electrostatic, Standard
Applicator Type Manual
Coating Type Standard, Specialty
Compatible Paint Type Automotive, Base Coat, Clear Coat, Enamels, High Solids, Metallics, Plural Component Materials, Primers, Solventborne, Urethanes
Display Type Standard
Fluid Inlet Thread Gender Male
Fluid Inlet Thread Type NPSM
Gun Activation Manual
Gun Type Electrostatic
Gun Weight (g) 560
Gun Weight (kg) 0.56
Includes Air Cap, Nozzle, Tool Kit, Gun Cover, Exhaust Tube
Maximum Fluid Pressure (MPa) 0.7
Maximum Fluid Pressure (bar) 7.0
Maximum Fluid Pressure (kPa) 700
Maximum Fluid Pressure (kg/cm²) 7.14
Maximum Fluid Temperature (°C) 48
Maximum Paint Resistivity (megohm/cm) Infinity
Minimum Paint Resistivity (megohm/cm) 25
Model Pro Xp
Nozzle Size (cm) 0.15
Nozzle Size (mm) 1.5
Overall Length (cm) 22.1
Overall Length (mm) 221
Series 40
Spray Type Electrostatic
Technology Type Air Spray
Type Electrostatic Gun
Voltage (kV) 40

Repair Parts

Part No. Description
24N276 Air Cap, Blue, long pattern, optimized for painting large parts with overlapping passes, light to medium viscosity, tapered end
24N278 Air Cap, Green, long pattern, optimized for painting large parts with overlapping passes, light to medium viscosity, tapered end
24N376 Air Cap, Black, long pattern, optimized for painting large parts with overlapping passes, light to medium viscosity, tapered end
24N614 Fluid nozzle, for standard coatings, 1.0 mm (.042 inch) Orifice Size, Black
24N617 Fluid nozzle, for standard coatings, 1.8 mm (.070 inch) Orifice Size, Black
24N618 Fluid nozzle, for standard coatings, 2.0 mm (.079 inch) Orifice Size, Black
24N623 High Wear Fluid Nozzle for Abrasive Materials- 1.50 mm Orifice Size
24N634 Standard Fan Air Adjustment Valve Kit
24N636 Low Profile Atomizing Air Restrictor Valve (adjusted with a hex tool)
24N727 Air Cap Assembly Kit for Pro Xp Air-Assisted Gun
24N733 Atomizing Air Restrictor Valve Assembly for large pattern round spray guns
24P171 Four Finger Trigger Kit, to convert Pro Xp air spray guns to a four finger trigger
24P172 Quick adjust fan valve for quick change of fan size
24R038 Voltage Tester Conversion Kit, converts the 245277 Test Fixture for use with the Pro Xp Gun alternator
26A294 ES On/Off Valve with Air Restrictor for high atomization air applications
24N274 Air Cap, Black, short pattern, optimized for painting with overlapping passes, light to medium fluid viscosity, tapered end
24N319 Round Spray Kit, to convert a standard air-assisted spray gun to a round spray pattern
24N477 Air Cap, Black, 15-17 in (381-432 mm) length, light to medium viscosity, round end
24N625 High Wear Fluid Nozzle for Abrasive Materials, 2.0 mm (.079 inch) Orifice Size, Blue
24N630 ES On-Off and Fluid Adjustment Valve Kit
24N704 High Wear Electrode Needle Kit
26A160 ES On/Off Valve Restrictor for high atomizing air applications
24N654 60 kV Packing Packing Rod Assembly
24N790 Fluid Seal Repair Kit
24N275 Air Cap, Black, optimized for aerospace coatings, light to heavy viscosity and high solids coatings, tapered end
24N453 Air Cap, Black, light to medium fluid viscosity, round end
24N613 Fluid Nozzle, for standard coatings, 0.75 mm (.029 inch) Orifice Size, Black
24N620 High Wear Fluid Nozzle for Abrasive Materials, 0.75 mm (.029 inch) Orifice Size, Blue
24N621 High Wear Fluid Nozzle for Abrasive Materials, 1.0 mm (.042 inch) Orifice Size, Blue
24N629 High Conductivity Fluid Tube Kit for 85 kV guns, to convert a standard Pro Xp air spray gun to a HC gun
24N664 Turbine Assembly Kit
24N706 Bearing Replacement Kit for Pro Xp™ Electrostatic Air Spray Gun
24N615 Fluid Nozzle for Standard Materials- 1.20 mm Orifice Size
24N632 ES On-Off and Fixed Fluid Valve
24N732 Fan air adjustment valve for large pattern round spray
24P312 Gun Washer Kit, to convert existing gun washers to clean Pro Xp guns
24N318 Round Spray Kit, to convert a standard air spray gun to a round spray pattern
24N439 Air Cap, Black, use with 2.0 mm nozzles, medium and heavy viscosity and high solid coatings at high production rates, tapered end
24N616 Fluid Nozzle for Standard Materials, 1.5 mm Orifice Size
24N622 High Wear Fluid Nozzle for Abrasive Materials, 1.2 mm (.047 inch) Orifice Size, Blue
24N627 High Conductivity Fluid Tube Kit for 40 kV guns, to convert a standard Pro Xp air spray gun to a HC gun
24N633 Plastic Trigger Kit
24N653 40 kV Packing Rod Assembly
24N789 Air Seal Repair Kit
24T304 Atomizing Air Restrictor Valve Assembly
24N277 Air Cap, Red, long pattern, optimized for painting large parts with overlapping passes, light to medium viscosity, tapered end
24N279 Air Cap, Black, optimized for medium and heavy viscosity and high solid coatings at standard production rates, round end
24N438 Air Cap, Black, similar to the standard air cap with an alternate arrangement of atomizing air, light to medium viscosity, round end
24N619 Fluid nozzle, for standard coatings, 0.55 mm (.022 inch) Orifice Size, Black
24N624 High Wear Fluid Nozzle for Abrasive Materials, 1.8 mm (.070 inch) Orifice Size, Blue
24N628 60 kV High Conductivity Kit
24N642 Ball Swivel, for gun air inlet, 1/4 npsm (left-hand thread)
24N655 85 kV Packing Rod Assembly
24P170 Metal Trigger Kit
