Pro Xp 40
Pro Xp40 Air Spray Manual Electrostatic Gun, 40 kV Booster, standard display, 0.055 in (1.5 mm) high wear nozzle, high conductivity tube
Part Number: L40T15

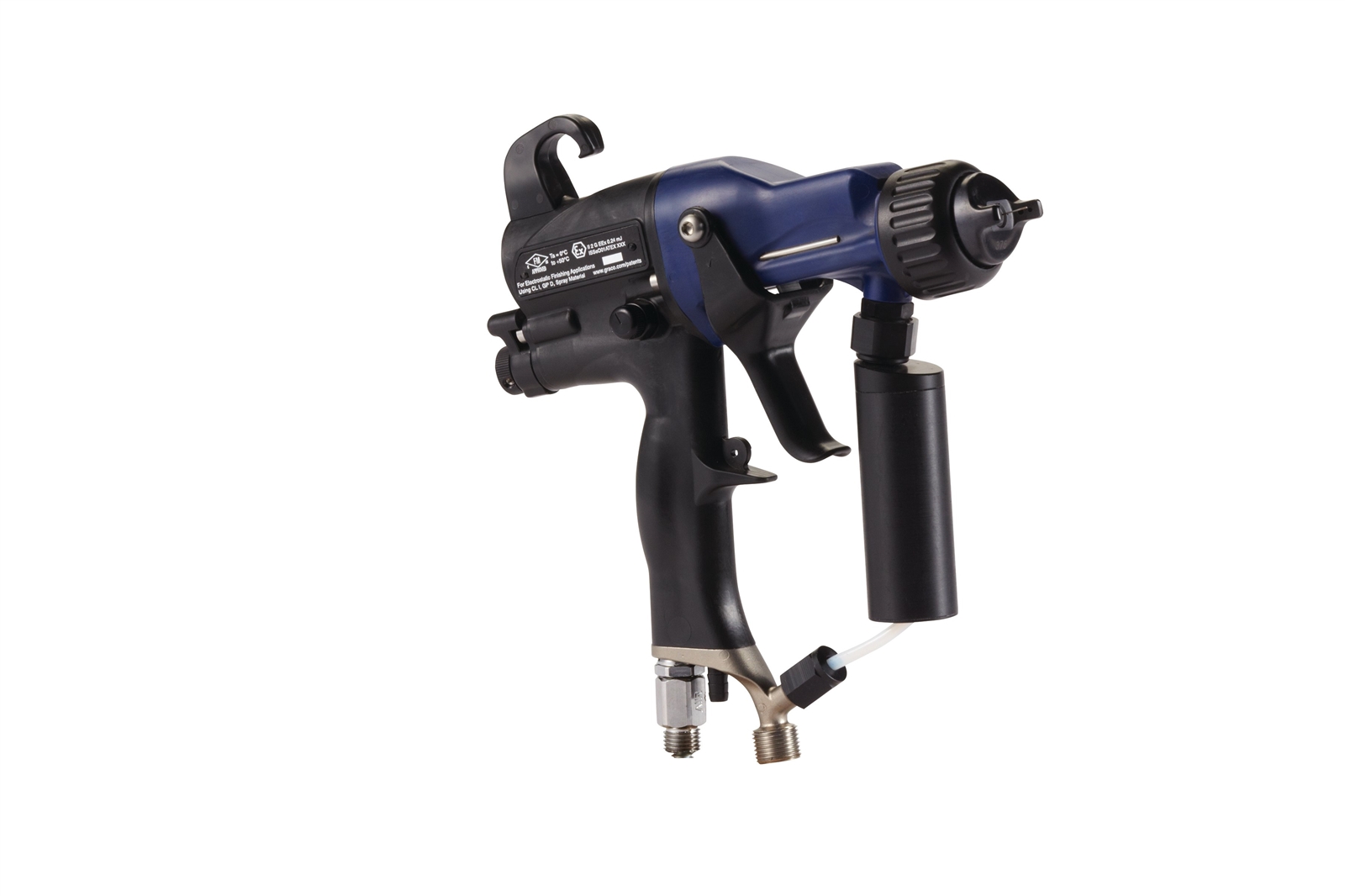

Image is for illustrative purposes only.
Pro Xp 40
Pro Xp40 Air Spray Manual Electrostatic Gun, 40 kV Booster, standard display, 0.055 in (1.5 mm) high wear nozzle, high conductivity tube
Part Number: L40T15
Gain the transfer efficiency of a 60 kV electrostatic gun in the compact size of a 40 kV air spray gun. The longer high conductivity fluid tube lets you spray lower resistivity material.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
Gain the transfer efficiency of a 60 kV electrostatic gun in the compact size of a 40 kV air spray gun. The longer high conductivity fluid tube lets you spray lower resistivity material.
- Smaller and lighter ergonomics make the manual electrostatic spray gun ideal for painters who work in tight spaces.
- Metal tip precision high-wear nozzle, high-wear electrode, and more durable fluid tube improve longevity.
- Durable components are backed by a three-year warranty and A+ Service.
- Made in the USA
- Smooth, curved ergonomic handle fits nicely in your hand for more comfortable spraying
- Every gun is tested and delivered with a certificate indicating the spray pattern, mechanical performance and electrical performance meets Graco's requirements
Specifications & Documents
Technical Specifications
Convert to Metric| Air Inlet Size (in) | 1/4 |
|---|---|
| Air Inlet Thread Gender | Male |
| Air Inlet Thread Type | NPSM |
| Application | Electrostatic, High Conductivity, High Wear |
| Applicator Type | Manual |
| Coating Type | High Conductivity, High Wear |
| Compatible Paint Type | Automotive, Base Coat, Clear Coat, Enamels, High Solids, Metallics, Plural Component Materials, Primers, Solventborne, Urethanes |
| Display Type | Standard |
| Fluid Inlet Size (in) | 3/8 |
| Fluid Inlet Thread Gender | Male |
| Fluid Inlet Thread Type | NPSM |
| Gun Activation | Manual |
| Gun Type | Electrostatic |
| Gun Weight (lb) | 1.23 |
| Gun Weight (oz) | 19.75 |
| Includes | Air Cap, Nozzle, Tool Kit, Gun Cover, Exhaust Tube |
| Maximum Fluid Pressure (MPa) | 0.7 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Fluid Temperature (°F) | 120 |
| Model | Pro Xp |
| Nozzle Size (in) | 0.055 |
| Overall Length (in) | 8.7 |
| Series | 40 |
| Spray Type | Electrostatic |
| Technology Type | Air Spray |
| Type | Electrostatic Gun |
| Voltage (kV) | 40 |
| Air Inlet Size (cm) | 0.635 |
| Air Inlet Size (in) | 1/4 |
| Air Inlet Size (mm) | 6.35 |
| Air Inlet Thread Gender | Male |
| Air Inlet Thread Type | NPSM |
| Application | Electrostatic, High Conductivity, High Wear |
| Applicator Type | Manual |
| Coating Type | High Conductivity, High Wear |
| Compatible Paint Type | Automotive, Base Coat, Clear Coat, Enamels, High Solids, Metallics, Plural Component Materials, Primers, Solventborne, Urethanes |
| Display Type | Standard |
| Fluid Inlet Size (in) | 3/8 |
| Fluid Inlet Thread Gender | Male |
| Fluid Inlet Thread Type | NPSM |
| Gun Activation | Manual |
| Gun Type | Electrostatic |
| Gun Weight (g) | 560 |
| Gun Weight (kg) | 0.56 |
| Gun Weight (oz) | 19.75 |
| Includes | Air Cap, Nozzle, Tool Kit, Gun Cover, Exhaust Tube |
| Maximum Fluid Pressure (MPa) | 0.7 |
| Maximum Fluid Pressure (bar) | 7.0 |
| Maximum Fluid Pressure (kPa) | 700 |
| Maximum Fluid Pressure (kg/cm²) | 7.14 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Fluid Temperature (°C) | 48 |
| Maximum Paint Resistivity (megohm/cm) | 25 |
| Minimum Paint Resistivity (megohm/cm) | 1 |
| Model | Pro Xp |
| Nozzle Size (cm) | 0.15 |
| Nozzle Size (mm) | 1.5 |
| Overall Length (cm) | 22.1 |
| Overall Length (mm) | 221 |
| Series | 40 |
| Spray Type | Electrostatic |
| Technology Type | Air Spray |
| Type | Electrostatic Gun |
| Voltage (kV) | 40 |
Repair Parts
| Part No. | Description |
|---|---|
| 24N614 | Fluid nozzle, for standard coatings, 1.0 mm (.042 inch) Orifice Size, Black |
| 24N664 | Turbine Assembly Kit |
| 24N616 | Fluid Nozzle for Standard Materials, 1.5 mm Orifice Size |
| 24N628 | 60 kV High Conductivity Kit |
| 24N704 | High Wear Electrode Needle Kit |
| 24N655 | 85 kV Packing Rod Assembly |
| 24N438 | Air Cap, Black, similar to the standard air cap with an alternate arrangement of atomizing air, light to medium viscosity, round end |
| 24N617 | Fluid nozzle, for standard coatings, 1.8 mm (.070 inch) Orifice Size, Black |
| 24N654 | 60 kV Packing Packing Rod Assembly |
| 24T304 | Atomizing Air Restrictor Valve Assembly |
| 24N279 | Air Cap, Black, optimized for medium and heavy viscosity and high solid coatings at standard production rates, round end |
| 24N477 | Air Cap, Black, 15-17 in (381-432 mm) length, light to medium viscosity, round end |
| 24N623 | High Wear Fluid Nozzle for Abrasive Materials- 1.50 mm Orifice Size |
| 24N376 | Air Cap, Black, long pattern, optimized for painting large parts with overlapping passes, light to medium viscosity, tapered end |
| 24N615 | Fluid Nozzle for Standard Materials- 1.20 mm Orifice Size |
| 24N622 | High Wear Fluid Nozzle for Abrasive Materials, 1.2 mm (.047 inch) Orifice Size, Blue |
| 24N633 | Plastic Trigger Kit |
| 24N634 | Standard Fan Air Adjustment Valve Kit |
| 24N727 | Air Cap Assembly Kit for Pro Xp Air-Assisted Gun |
| 24N789 | Air Seal Repair Kit |
| 24N629 | High Conductivity Fluid Tube Kit for 85 kV guns, to convert a standard Pro Xp air spray gun to a HC gun |
| 24N630 | ES On-Off and Fluid Adjustment Valve Kit |
| 24N653 | 40 kV Packing Rod Assembly |
| 24N706 | Bearing Replacement Kit for Pro Xp™ Electrostatic Air Spray Gun |
| 24N790 | Fluid Seal Repair Kit |
Recommended Accessories
Setup & Service Videos
Learn how to keep your Pro Xp Air Spray Electrostatic Gun performing well. Air spray service video playlist starts with parts animation, continues with gun setup and prime, disassembly, assembly, and then ends with gun controls overview.
