Pro Xp 60
Pro Xp60 Air Spray Manual Electrostatic Gun, 60 kV, standard display, round spray nozzle/air cap large pattern
Part Number: L60T11

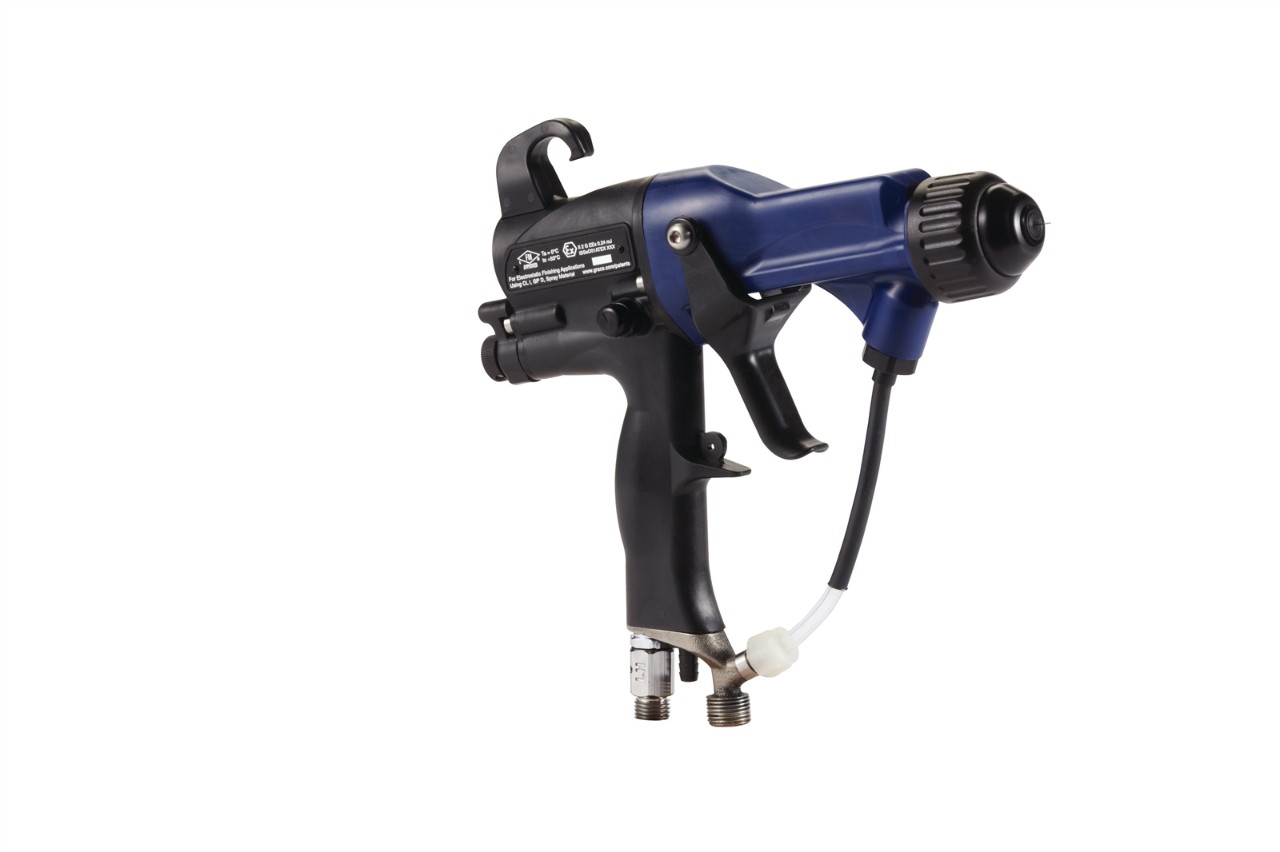

Image is for illustrative purposes only.
Pro Xp 60
Pro Xp60 Air Spray Manual Electrostatic Gun, 60 kV, standard display, round spray nozzle/air cap large pattern
Part Number: L60T11
The 60 kV electrostatic air spray gun is the smallest profile gun with an internal power supply on the market. Its round spray nozzle and air cap boost transfer efficiency.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
The 60 kV electrostatic air spray gun is the smallest profile gun with an internal power supply on the market. Its round spray nozzle and air cap boost transfer efficiency.
For round spray applications that require a large pattern
- Bell-like round spray and electrostatics maximize wrap around cylindrical objects.
- Round spray components form desired patterns at lower fluid flow rates with less airflow, improving finish quality.
- Smart Controls help you analyze performance, adapt to your voltage needs and make troubleshooting easier
- Every gun is tested and delivered with a certificate indicating the spray pattern, mechanical performance and electrical performance meets Graco's requirements.
Specifications & Documents
Technical Specifications
Convert to Metric| Air Inlet Size (in) | 1/4 |
|---|---|
| Air Inlet Thread Gender | Male |
| Air Inlet Thread Type | NPSM |
| Application | Electrostatic, Standard |
| Applicator Type | Manual |
| Coating Type | Standard |
| Compatible Paint Type | Automotive, Base Coat, Clear Coat, Enamels, High Solids, Metallics, Plural Component Materials, Primers, Solventborne, Urethanes |
| Display Type | Standard |
| Fluid Inlet Size (in) | 3/8 |
| Fluid Inlet Thread Gender | Male |
| Fluid Inlet Thread Type | NPSM |
| Gun Activation | Manual |
| Gun Type | Electrostatic |
| Gun Weight (lb) | 1.32 |
| Gun Weight (oz) | 21.16 |
| Includes | Round Spray air cap, Nozzle, Tool Kit, Gun Cover, Exhaust Tube |
| Maximum Fluid Pressure (MPa) | 0.7 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Fluid Temperature (°F) | 120 |
| Model | Pro Xp |
| Overall Length (in) | 9.5 |
| Series | 60 |
| Spray Type | Electrostatic |
| Technology Type | Air Spray |
| Type | Electrostatic Gun |
| Voltage (kV) | 60 |
| Air Inlet Size (cm) | 0.635 |
| Air Inlet Size (in) | 1/4 |
| Air Inlet Size (mm) | 6.35 |
| Air Inlet Thread Gender | Male |
| Air Inlet Thread Type | NPSM |
| Application | Electrostatic, Standard |
| Applicator Type | Manual |
| Coating Type | Standard |
| Compatible Paint Type | Automotive, Base Coat, Clear Coat, Enamels, High Solids, Metallics, Plural Component Materials, Primers, Solventborne, Urethanes |
| Display Type | Standard |
| Fluid Inlet Size (in) | 3/8 |
| Fluid Inlet Thread Gender | Male |
| Fluid Inlet Thread Type | NPSM |
| Gun Activation | Manual |
| Gun Type | Electrostatic |
| Gun Weight (g) | 600 |
| Gun Weight (kg) | 0.6 |
| Gun Weight (oz) | 21.16 |
| Includes | Round Spray air cap, Nozzle, Tool Kit, Gun Cover, Exhaust Tube |
| Maximum Fluid Pressure (MPa) | 0.7 |
| Maximum Fluid Pressure (bar) | 7.0 |
| Maximum Fluid Pressure (kPa) | 700 |
| Maximum Fluid Pressure (kg/cm²) | 7.14 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Fluid Temperature (°C) | 48 |
| Maximum Paint Resistivity (megohm/cm) | Infinity |
| Minimum Paint Resistivity (megohm/cm) | 25 |
| Model | Pro Xp |
| Overall Length (cm) | 24.13 |
| Overall Length (mm) | 241.3 |
| Series | 60 |
| Spray Type | Electrostatic |
| Technology Type | Air Spray |
| Type | Electrostatic Gun |
| Voltage (kV) | 60 |
Repair Parts
| Part No. | Description |
|---|---|
| 24N376 | Air Cap, Black, long pattern, optimized for painting large parts with overlapping passes, light to medium viscosity, tapered end |
| 24N616 | Fluid Nozzle for Standard Materials, 1.5 mm Orifice Size |
| 24N628 | 60 kV High Conductivity Kit |
| 24N629 | High Conductivity Fluid Tube Kit for 85 kV guns, to convert a standard Pro Xp air spray gun to a HC gun |
| 24N653 | 40 kV Packing Rod Assembly |
| 24N654 | 60 kV Packing Packing Rod Assembly |
| 24N704 | High Wear Electrode Needle Kit |
| 24N727 | Air Cap Assembly Kit for Pro Xp Air-Assisted Gun |
| 24T304 | Atomizing Air Restrictor Valve Assembly |
| 24N438 | Air Cap, Black, similar to the standard air cap with an alternate arrangement of atomizing air, light to medium viscosity, round end |
| 24N477 | Air Cap, Black, 15-17 in (381-432 mm) length, light to medium viscosity, round end |
| 24N614 | Fluid nozzle, for standard coatings, 1.0 mm (.042 inch) Orifice Size, Black |
| 24N634 | Standard Fan Air Adjustment Valve Kit |
| 24N790 | Fluid Seal Repair Kit |
| 24N622 | High Wear Fluid Nozzle for Abrasive Materials, 1.2 mm (.047 inch) Orifice Size, Blue |
| 24N623 | High Wear Fluid Nozzle for Abrasive Materials- 1.50 mm Orifice Size |
| 24N630 | ES On-Off and Fluid Adjustment Valve Kit |
| 24N706 | Bearing Replacement Kit for Pro Xp™ Electrostatic Air Spray Gun |
| 24N615 | Fluid Nozzle for Standard Materials- 1.20 mm Orifice Size |
| 24N789 | Air Seal Repair Kit |
| 24N279 | Air Cap, Black, optimized for medium and heavy viscosity and high solid coatings at standard production rates, round end |
| 24N617 | Fluid nozzle, for standard coatings, 1.8 mm (.070 inch) Orifice Size, Black |
| 24N633 | Plastic Trigger Kit |
| 24N655 | 85 kV Packing Rod Assembly |
| 24N664 | Turbine Assembly Kit |
Recommended Accessories
Setup & Service Videos
Learn how to keep your Pro Xp Air Spray Electrostatic Gun performing well. Air spray service video playlist starts with parts animation, continues with gun setup and prime, disassembly, assembly, and then ends with gun controls overview.
