Pro Xp 85

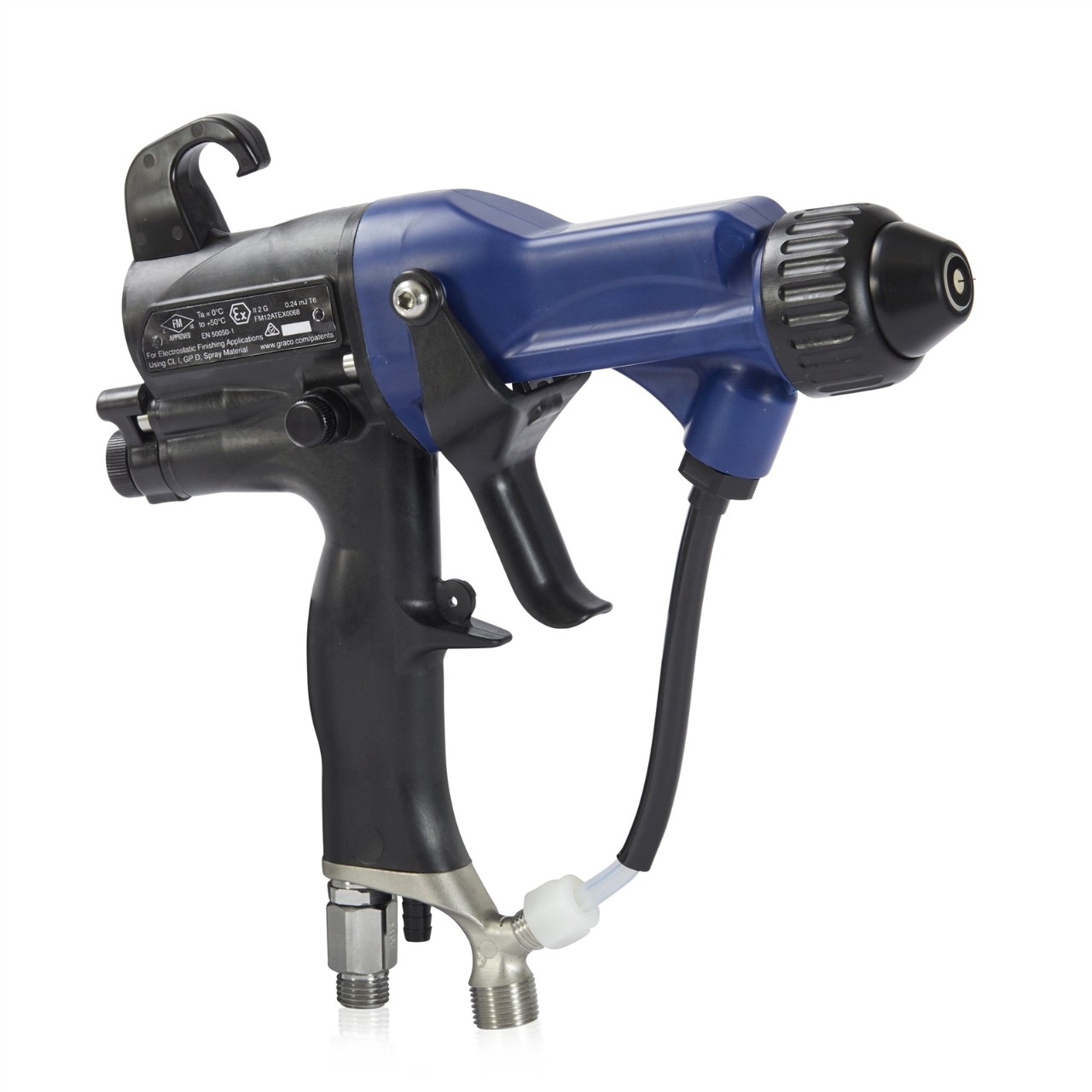

Pro Xp85 Air Spray Manual Electrostatic Gun, 85 kV, standard display, round spray nozzle/air cap medium pattern
Part Number: L85T32
Image is for illustrative purposes only.
Pro Xp 85
Pro Xp85 Air Spray Manual Electrostatic Gun, 85 kV, standard display, round spray nozzle/air cap medium pattern
Part Number: L85T32
This 85 kV electrostatic spray gun improves transfer efficiency with an efficient round spray nozzle and air cap combination.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
This 85 kV electrostatic spray gun improves transfer efficiency with an efficient round spray nozzle and air cap combination.
For round spray applications that require a medium pattern
- Bell-like round spray and electrostatics maximize wrap around cylindrical objects.
- Round spray components form small to medium patterns at lower fluid flow rates with less airflow. This improves finish quality on small, light objects.
Specifications & Documents
Technical Specifications
Convert to Metric| Air Inlet Size (in) | 1/4 |
|---|---|
| Air Inlet Thread Gender | Male |
| Air Inlet Thread Type | NPSM |
| Application | Electrostatic, Standard |
| Applicator Type | Manual |
| Coating Type | Standard |
| Compatible Paint Type | Automotive, Base Coat, Clear Coat, Enamels, High Solids, Metallics, Plural Component Materials, Primers, Solventborne, Urethanes |
| Display Type | Standard |
| Fluid Inlet Size (in) | 3/8 |
| Fluid Inlet Thread Gender | Male |
| Fluid Inlet Thread Type | NPSM |
| Gun Activation | Manual |
| Gun Type | Electrostatic |
| Gun Weight (lb) | 1.49 |
| Gun Weight (oz) | 23.81 |
| Includes | Round Spray air cap, Nozzle, Tool Kit, Gun Cover, Exhaust Tube |
| Maximum Fluid Pressure (MPa) | 0.7 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Fluid Temperature (°F) | 120 |
| Model | Pro Xp |
| Overall Length (in) | 10.5 |
| Product Series | A |
| Series | 85 |
| Spray Type | Electrostatic |
| Technology Type | Air Spray |
| Type | Electrostatic Gun |
| Voltage (kV) | 85 |
| Air Inlet Size (cm) | 0.635 |
| Air Inlet Size (in) | 1/4 |
| Air Inlet Size (mm) | 6.35 |
| Air Inlet Thread Gender | Male |
| Air Inlet Thread Type | NPSM |
| Application | Electrostatic, Standard |
| Applicator Type | Manual |
| Coating Type | Standard |
| Compatible Paint Type | Automotive, Base Coat, Clear Coat, Enamels, High Solids, Metallics, Plural Component Materials, Primers, Solventborne, Urethanes |
| Display Type | Standard |
| Fluid Inlet Size (in) | 3/8 |
| Fluid Inlet Thread Gender | Male |
| Fluid Inlet Thread Type | NPSM |
| Gun Activation | Manual |
| Gun Type | Electrostatic |
| Gun Weight (g) | 676 |
| Gun Weight (kg) | 0.675 |
| Gun Weight (oz) | 23.81 |
| Includes | Round Spray air cap, Nozzle, Tool Kit, Gun Cover, Exhaust Tube |
| Maximum Fluid Pressure (MPa) | 0.7 |
| Maximum Fluid Pressure (bar) | 7.0 |
| Maximum Fluid Pressure (kPa) | 700 |
| Maximum Fluid Pressure (kg/cm²) | 7.14 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Fluid Temperature (°C) | 48 |
| Maximum Paint Resistivity (megohm/cm) | Infinity |
| Minimum Paint Resistivity (megohm/cm) | 25 |
| Model | Pro Xp |
| Overall Length (cm) | 26.67 |
| Overall Length (mm) | 266.7 |
| Product Series | A |
| Series | 85 |
| Spray Type | Electrostatic |
| Technology Type | Air Spray |
| Type | Electrostatic Gun |
| Voltage (kV) | 85 |
Setup & Service Videos
Learn how to keep your Pro Xp Air Spray Electrostatic Gun performing well. Air spray service video playlist starts with parts animation, continues with gun setup and prime, disassembly, assembly, and then ends with gun controls overview.
