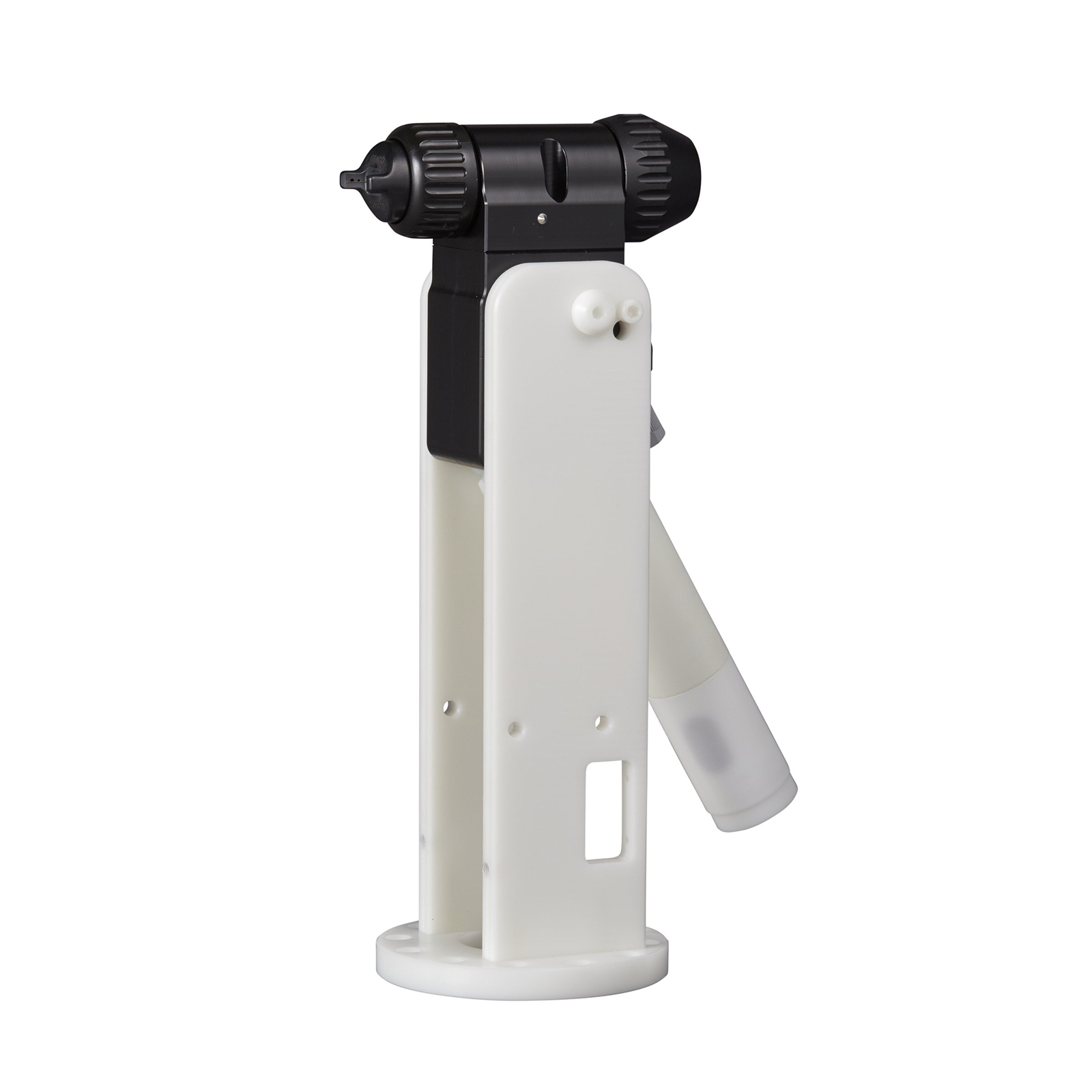

Pro Xpc Automatic Electrostatic Air Spray Gun, bottom manifold for solventborne material, 100 kV

Part Number: LC2020

product image product image
Image is for illustrative purposes only.
Image is for illustrative purposes only.

Pro Xpc Auto

Pro Xpc Automatic Electrostatic Air Spray Gun, bottom manifold for solventborne material, 100 kV

Part Number: LC2020

Pro Xpc Auto is safe, durable, PLC controllable, designed for efficient system integration and comes with a serialized certificate of performance. The system has 250 user settable presets and maintenance reminders that can be controlled from a PLC or switchbox control. This improves the flexibility ... More Info
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
Pro Xpc Auto is safe, durable, PLC controllable, designed for efficient system integration and comes with a serialized certificate of performance. The system has 250 user settable presets and maintenance reminders that can be controlled from a PLC or switchbox control. This improves the flexibility of the client, who can spray with a wide variety of shapes and sizes.
  • Robot friendly with a weight and size that allows robots greater reach capabilities
  • Improve processes with switch box that makes spraying flexible
  • Invest in safer equipment with design features that reduce risks
  • Maximize profits with patent pending charge points for high transfer efficiency and reduced material usage
  • System integration with nozzle tips to assemble a robot movement system or fixture

Specifications & Documents

Technical Specifications

Convert to Metric
Air Inlet Size (in) 1/4
Application Electrostatic, Solventborne
Applicator Type Automatic
Coating Type Solventborne
Compatible Paint Type Solventborne
Fluid Inlet Size (in) 1/4
For Use With Pro Xpc Auto Control Module
Gun Activation Automatic
Gun Type Electrostatic
Gun Weight (lb) 1.2
Gun Weight (oz) 19.22
Manifold Type Bottom
Maximum Fluid Pressure (MPa) 0.7
Maximum Fluid Pressure (psi) 100
Maximum Fluid Temperature (°F) 120
Model Pro Xpc
Nozzle Size (in) 0.055
Overall Length (in) 5.7
Series Auto
Spray Type Electrostatic
Technology Type Air Spray
Type Electrostatic Gun
Voltage (kV) 100
Air Inlet Size (cm) 0.635
Air Inlet Size (in) 1/4
Air Inlet Size (mm) 6.35
Application Electrostatic, Solventborne
Applicator Type Automatic
Coating Type Solventborne
Compatible Paint Type Solventborne
Fluid Inlet Size (in) 1/4
For Use With Pro Xpc Auto Control Module
Gun Activation Automatic
Gun Type Electrostatic
Gun Weight (g) 545
Gun Weight (kg) 0.545
Gun Weight (oz) 19.22
Manifold Type Bottom
Maximum Fluid Pressure (MPa) 0.7
Maximum Fluid Pressure (bar) 7
Maximum Fluid Pressure (kPa) 700
Maximum Fluid Pressure (psi) 100
Maximum Fluid Temperature (°C) 48
Maximum Paint Resistivity (megohm/cm) Infinity
Minimum Paint Resistivity (megohm/cm) 1
Model Pro Xpc
Nozzle Size (cm) 0.15
Nozzle Size (mm) 1.5
Overall Length (cm) 14.48
Overall Length (mm) 144.8
Series Auto
Spray Type Electrostatic
Technology Type Air Spray
Type Electrostatic Gun
Voltage (kV) 100

Repair Parts

Part No. Description
LC1020 Pro Xpc Automatic Electrostatic Air Spray Gun, rear manifold for solventborne material, 100 kV
LC2028 Pro Xpc Automatic Electrostatic Air Spray Gun, bottom manifold for waterborne material, 60 kV
LC1028 Pro Xpc Automatic Electrostatic Air Spray Gun, rear manifold for waterborne material, 60 kV
24N704 High Wear Electrode Needle Kit

Setup & Service Videos

Learn how to set up your Pro Xpc automatic electrostatic spray gun and keep it working well. Playlist begins with three videos about setting up the controller and connections. The last two videos show disassembly and assembly for service and maintenance.
