ProMix V

ProMix V Acid Catalyst Meter Package with G3000 meters and WiFi module, 5 colors/1 catalyst, for non-hazardous locations

Part Number: PVMNM24

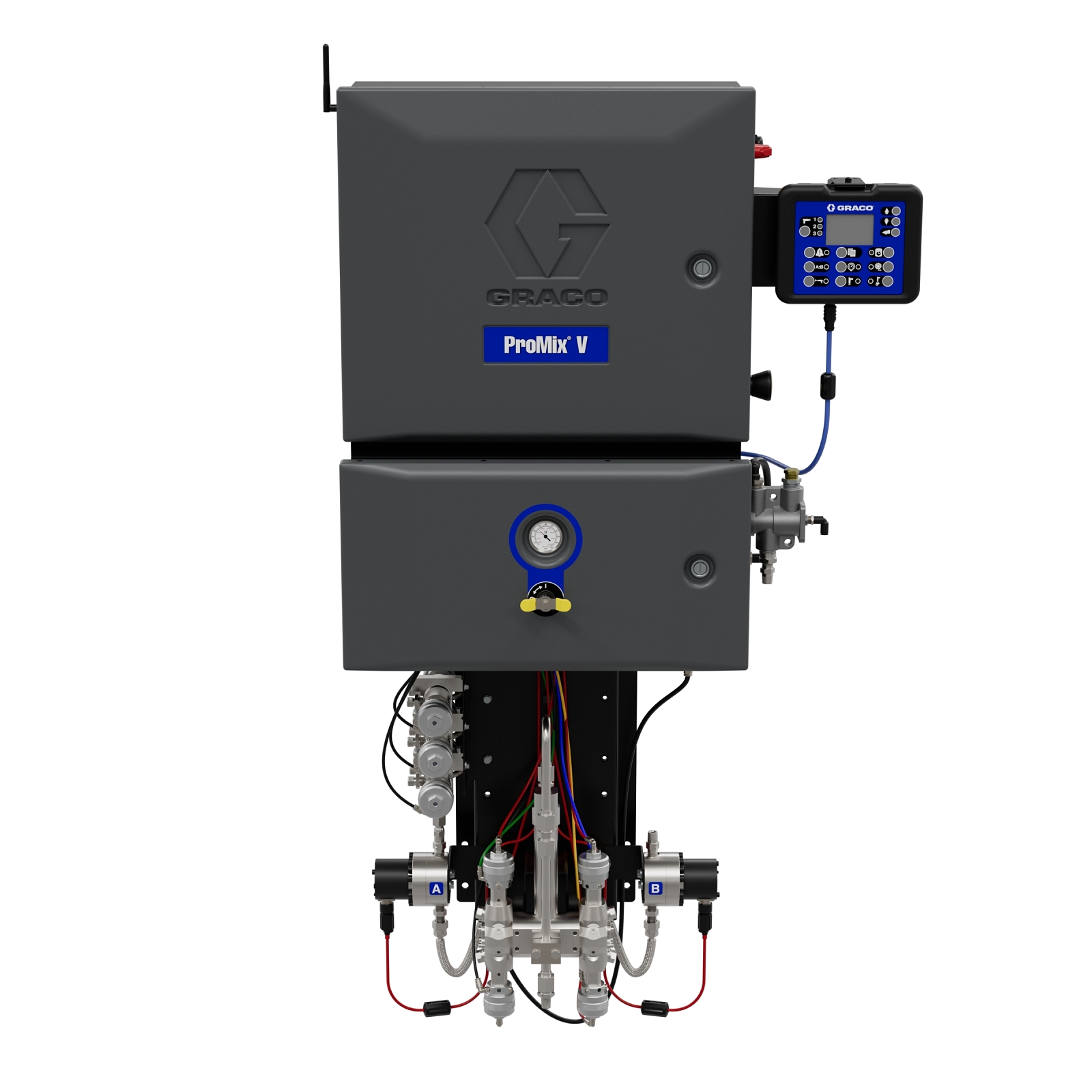

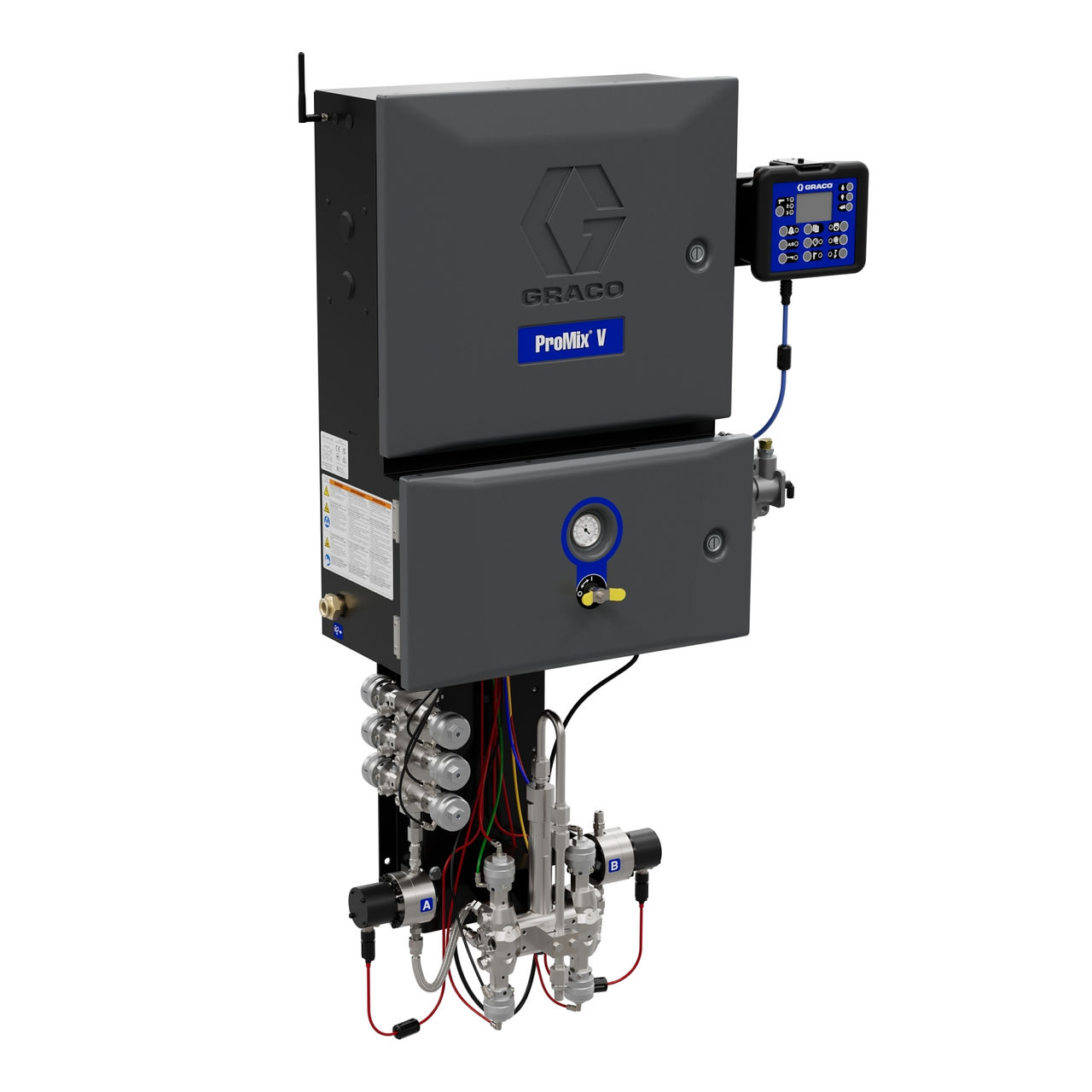

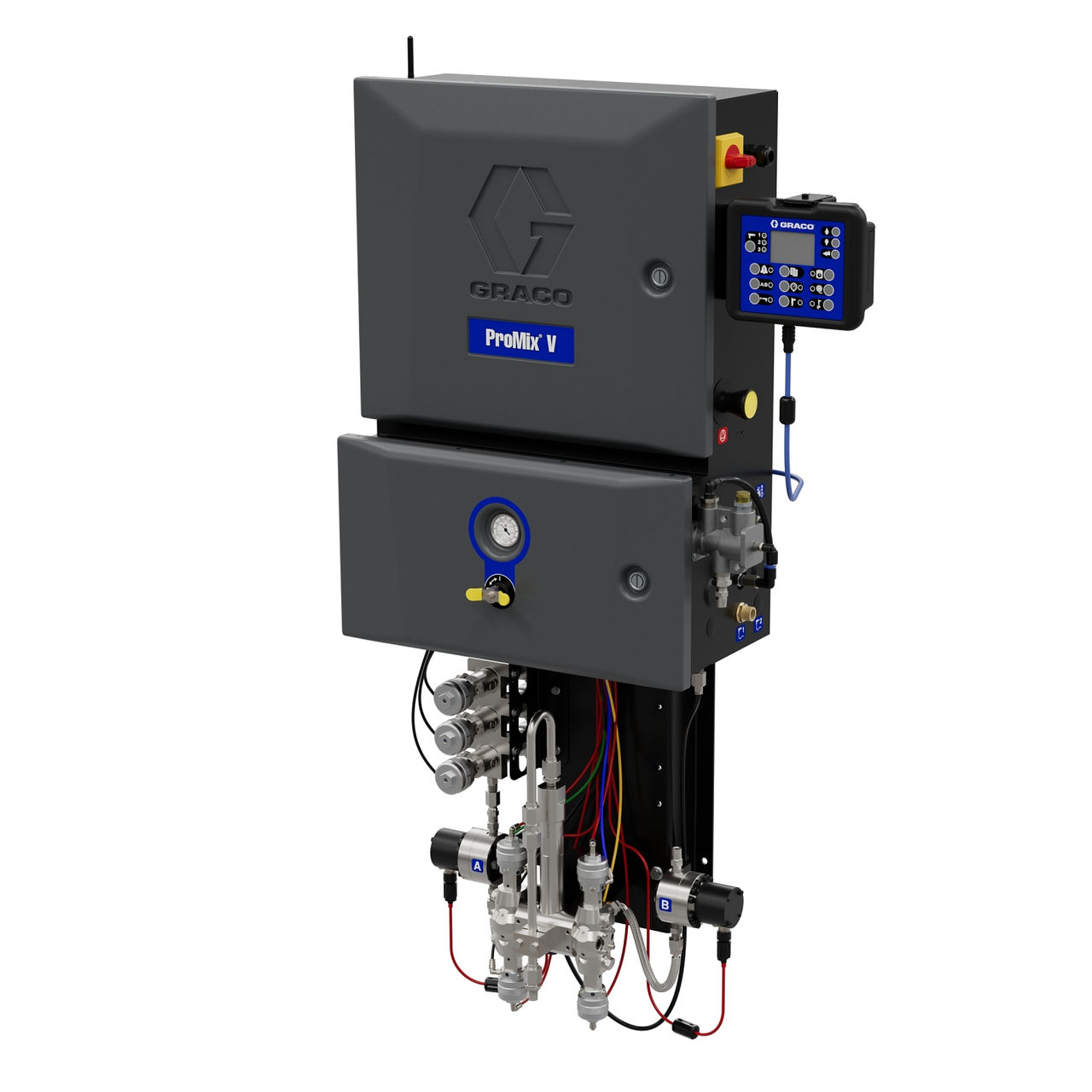

product image product image product image

ProMix V

ProMix V Acid Catalyst Meter Package with G3000 meters and WiFi module, 5 colors/1 catalyst, for non-hazardous locations

Part Number: PVMNM24

The fifth generation of Graco’s industry-leading ProMix plural component platform delivers the technology, data, and ease of use required for continuous improvement. Built on the trusted legacy of our sequential dosing technology, the system ensures on-ratio accuracy that protects your finish—and yo... More Info
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

The fifth generation of Graco’s industry-leading ProMix plural component platform delivers the technology, data, and ease of use required for continuous improvement. Built on the trusted legacy of our sequential dosing technology, the system ensures on-ratio accuracy that protects your finish—and your brand—from costly field failures.

Precision isn’t optional—it’s mission-critical. Tried and trusted sequential dosing technology can handle 2k solvent-borne coatings, polyurethanes and epoxies up to a ratio of 50:1.

  • On-Ratio, Every Time - At the core of this system are our proven G3000 meters, delivering precise, consistent 2K mixing—even under high-pressure production demands.
  • Maximized Color Flexibility - Need fast color changeovers? No problem. This system has air/solvent chop standard on all models, enabling quicker transitions with minimal waste and downtime.
  • Efficiency that Pays - From reduced solvent use to faster changeovers, everything is designed to limit waste and maximize uptime.
  • Remote Monitoring for Real-Time Control - Stay connected and in control. With remote monitoring capabilities accessible through a secure web browser, you can check system performance, confirm mix accuracy, and respond to issues—without being in the paint booth.
  • Smarter Control at the Booth - The booth control module puts critical insight at the painter’s fingertips—with intuitive operation and real-time data like flow rate, pot life, and system alerts.
  • Smarter Maintenance Starts Here - A streamlined fluid path and reduced part count mean less time spent on upkeep—and more time keeping your line running at full speed.

Specifications & Documents

Technical Specifications

Convert to Metric
Acid Catalyst Yes
Air Inlet Size (in) 3/8
Air Inlet Thread Gender Female
Air Inlet Thread Type NPT
Amperage (A) 2
Application Liquid Finishing
Applicator Type Manual
Compatible Material Solvent and Waterborne Paints, Polyurethanes, Epoxy, Acid Catalyzed Varnishes
Component Type Two Component
Construction 316 Stainless Steel, 17-4 Stainless Steel, PEEK Perfluoroelastomer, PTFE
Fluid Inlet Size (in) 1/4
Fluid Inlet Thread Gender Female
Fluid Inlet Thread Type NPT
Frequency (Hz) 50/60
Gun Activation Manual
Gun Flush Box None
Maximum Flow Rate (GPM) 1
Maximum Mix Ratio 50:1
Maximum Operating Temperature (°F) 122
Maximum Working Pressure (psi) 3000
Measuring Type Meter
Meter Type G3000
Minimum Mix Ratio 1:1
Mix Accuracy (%) up to ± 1%
Model ProMix
Number of Catalysts 1
Number of Resin Colors 5
Power Source Electric
Product Type Plural Component
Proportioner Type Meter
Series V
Sound Power Level (dB(A)) 85
Sound Pressure Level (dB(A)) 70
Type Proportioning System
Voltage (V) 100-240 VAC
Weight (lb) 200
Wi-Fi Enabled Yes
Acid Catalyst Yes
Air Inlet Size (in) 3/8
Air Inlet Thread Gender Female
Air Inlet Thread Type NPT
Amperage (A) 2
Application Liquid Finishing
Applicator Type Manual
Compatible Material Solvent and Waterborne Paints, Polyurethanes, Epoxy, Acid Catalyzed Varnishes
Component Type Two Component
Construction 316 Stainless Steel, 17-4 Stainless Steel, PEEK Perfluoroelastomer, PTFE
Fluid Inlet Size (in) 1/4
Fluid Inlet Thread Gender Female
Fluid Inlet Thread Type NPT
Frequency (Hz) 50/60
Gun Activation Manual
Gun Flush Box None
Maximum Mix Ratio 50:1
Maximum Operating Temperature (°C) 50
Maximum Working Pressure (bar) 207
Maximum Working Pressure (psi) 3000
Measuring Type Meter
Meter Type G3000
Minimum Mix Ratio 1:1
Mix Accuracy (%) up to ± 1%
Model ProMix
Number of Catalysts 1
Number of Resin Colors 5
Power Source Electric
Product Type Plural Component
Proportioner Type Meter
Series V
Sound Power Level (dB(A)) 85
Sound Pressure Level (dB(A)) 70
Type Proportioning System
Voltage (V) 100-240 VAC
Weight (kg) 91
Wi-Fi Enabled Yes
