E-Flo DCi 2-Ball
E-Flo DCi 2-Ball Electric Pump, 25:1, 290cc, 3 HP, 380-480 VAC 3 Phase, Carbon Steel Construction, Basic Controls, No Stand
Part Number: Y25B10

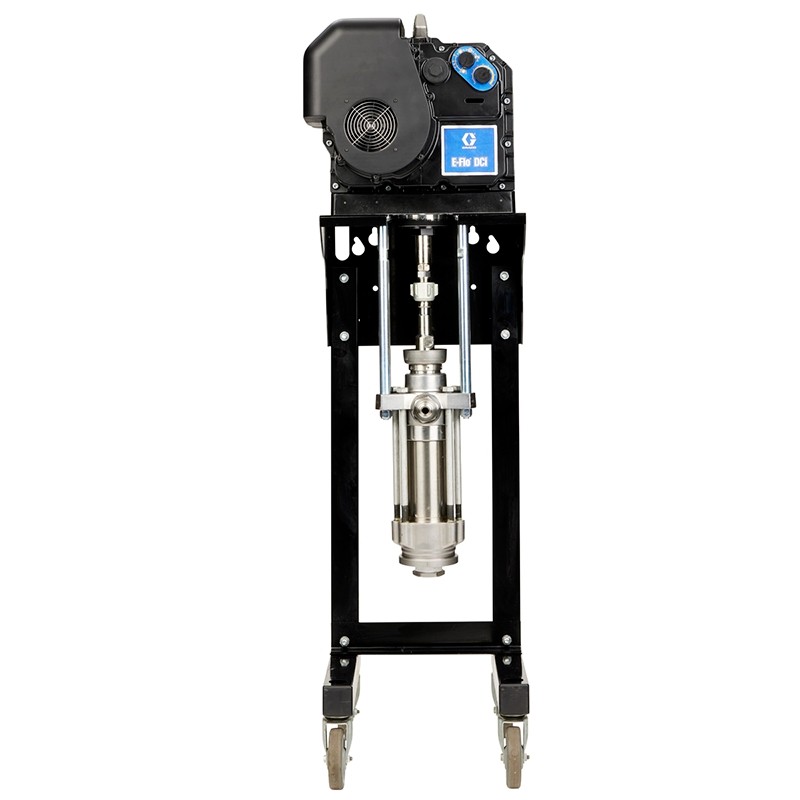

Image is for illustrative purposes only.
E-Flo DCi 2-Ball
E-Flo DCi 2-Ball Electric Pump, 25:1, 290cc, 3 HP, 380-480 VAC 3 Phase, Carbon Steel Construction, Basic Controls, No Stand
Part Number: Y25B10
Dual control (DC) supply pump with intelligence (i) has a 290 cc volume per cycle range. The 2-ball lower attains a 25:1 equivalent pressure ratio.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
Dual control (DC) supply pump with intelligence (i) has a 290 cc volume per cycle range. The 2-ball lower attains a 25:1 equivalent pressure ratio.
Electric piston pump supplies paints and coatings for automotive manufacturing, as well as architecture, agriculture, transportation and other industries.
- 3 horse power (HP) motor is modular, so that it can easily replace existing Graco pneumatic or hydraulic pump motors.
- Three-phase electric motor has an input voltage of 380 to 480 VAC (volts alternating current).
- ATEX, IECEx, JPNEx, CCCEx, and KCS certifications confirm safe operation worldwide.
- Wetted section has affordable carbon steel construction.
- Basic controls integrate easily with factory programmable logic controller (PLC); no variable frequency drive (VFD) is required.
- Dual control (DC) allows operation in flow mode for constant circulation, or pressure mode for dynamic speed adjustments – whatever works best for your application.
- DCi Link™ connects via ethernet to your factory’s PLC (programmable logic controller), simplifying integration and truly making your pump intelligent.
Specifications & Documents
Technical Specifications
Convert to Metric| Application | Supply |
|---|---|
| Compatible Material | Solventborne, High Solids, Xirallic, CARC, Metallics |
| Fluid Inlet Size (in) | 1.25 |
| Fluid Inlet Thread Gender | Male |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (in) | 1 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| Fluid Section Type | 2-Ball |
| Includes | Basic Controls, No Stand |
| Input Voltage (V ac) | 380 - 480 |
| Material | Carbon Steel |
| Maximum Continuous Cycle Rate (CPM) | 20 |
| Maximum Flow Rate (GPM) | 1.5 |
| Maximum Input Amperage (A) | 20 |
| Maximum Operating Temperature (°F) | 104 |
| Maximum Working Pressure (MPa) | 16.4 |
| Maximum Working Pressure (psi) | 2380 |
| Minimum Operating Temperature (°F) | 32 |
| Model | E-Flo |
| Motor Type | BLDC |
| Portable | Non-Portable |
| Power Rating (HP) | 3 |
| Series | DCi 2-Ball |
| Type | Electric Piston Pump |
| Application | Supply |
| Compatible Material | Solventborne, High Solids, Xirallic, CARC, Metallics |
| Fluid Inlet Size (in) | 1.25 |
| Fluid Inlet Size (mm) | 31.75 |
| Fluid Inlet Thread Gender | Male |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (in) | 1 |
| Fluid Outlet Size (mm) | 25.4 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| Fluid Section Type | 2-Ball |
| Includes | Basic Controls, No Stand |
| Input Voltage (V ac) | 380 - 480 |
| Material | Carbon Steel |
| Maximum Continuous Cycle Rate (CPM) | 20 |
| Maximum Flow Rate (L/min) | 5.6 |
| Maximum Input Amperage (A) | 20 |
| Maximum Operating Temperature (°C) | 40 |
| Maximum Working Pressure (MPa) | 16.4 |
| Maximum Working Pressure (bar) | 34519 |
| Maximum Working Pressure (kPa) | 16410 |
| Maximum Working Pressure (psi) | 2380 |
| Minimum Operating Temperature (°C) | 0 |
| Model | E-Flo |
| Motor Type | BLDC |
| Portable | Non-Portable |
| Series | DCi 2-Ball |
| Type | Electric Piston Pump |
