E-Flo Dci 4-Ball
E-Flo DCi 4-Ball Electric Pump, 2500cc, 5 HP, SST Ultralife Lower, Tri-Clamp, Advanced Controls, Stand/Wall Mount
Part Number: YA5341

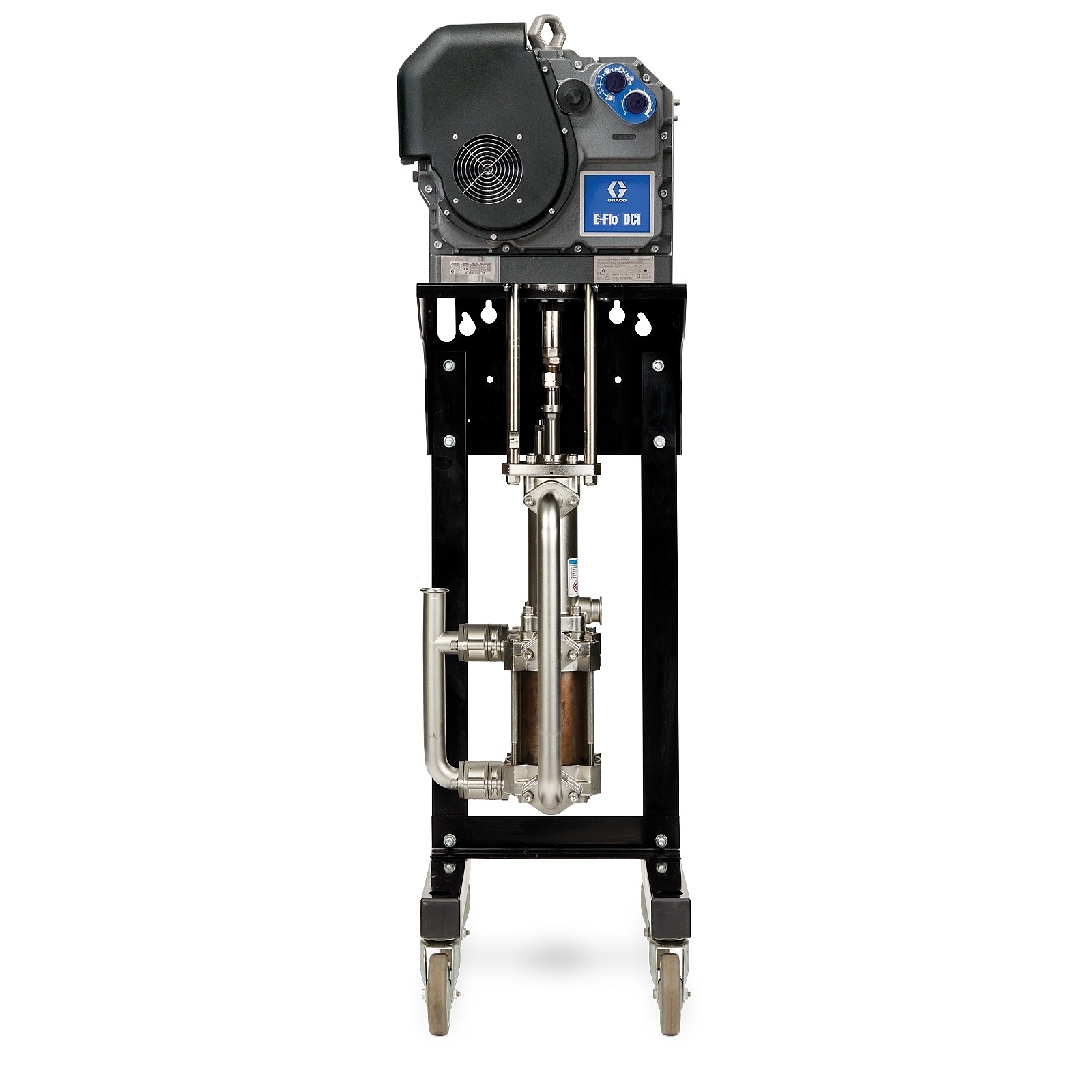

Image is for illustrative purposes only.
E-Flo Dci 4-Ball
E-Flo DCi 4-Ball Electric Pump, 2500cc, 5 HP, SST Ultralife Lower, Tri-Clamp, Advanced Controls, Stand/Wall Mount
Part Number: YA5341
Dual control (DC) circulation pump with intelligence (i) drives efficiency and sustainability in high volume industrial paint systems. The 4-ball lower’s 2500 cc configuration powers maximum continuous flow rate.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
Dual control (DC) circulation pump with intelligence (i) drives efficiency and sustainability in high volume industrial paint systems. The 4-ball lower’s 2500 cc configuration powers maximum continuous flow rate.
Electric piston pump circulates paints and coatings for automotive manufacturing, as well as architecture, agriculture, transportation and other industries.
- An annual oil change is all that’s needed to keep the 5 horse power (HP) motor running efficiently.
- Three-phase electric motor has an input voltage of 380 to 480 VAC (volts alternating current).
- DCi Link™ connects via ethernet to your factory’s PLC (programmable logic controller), simplifying integration and truly making your pump intelligent.
- Advanced controls integrates easily with intrinsically safe input/output (IO).
- Floor/Wall stand has compact footprint with a space-saving vertical design.
- Dual control (DC) allows operation in flow mode for constant circulation or pressure mode for dynamic speed adjustments, whatever your project entails.
- ATEX, IECEx, JPNEx, CCCEx, and KCS certifications confirm safe operation worldwide.
- Stainless steel (SST) lower is coated with Ultralife for extensive durability.
Specifications & Documents
Technical Specifications
Convert to Metric| Application | Circulation |
|---|---|
| Compatible Material | Solventborne, High Solids, Xirallic, Metallics, Varnish, CARC, Waterborne |
| Control Options | Advanced |
| Fluid Inlet Size (in) | 1.5 |
| Fluid Inlet Thread Type | Tri-Clamp |
| Fluid Outlet Size (in) | 1.5 |
| Fluid Outlet Thread Type | Tri-Clamp |
| Lower Type | Sealed Ultralife |
| Material | Stainless Steel |
| Maximum Continuous Cycle Rate (CPM) | 20 |
| Maximum Flow Rate (GPM) | 13.2 |
| Maximum Operating Temperature (°F) | 104 |
| Maximum Working Pressure (MPa) | 3.2 |
| Maximum Working Pressure (psi) | 460 |
| Minimum Operating Temperature (°F) | 32 |
| Model | E-Flo |
| Mount Type | Wall or Stand Mount |
| Phase | 3 |
| Portable | Non-Portable |
| Power Rating (HP) | 5 |
| Series | Dci 4-Ball |
| Type | Electric Piston Pump |
| Voltage (V) | 380-480 VAC |
| Weight (lb) | 255 |
| Application | Circulation |
| Compatible Material | Solventborne, High Solids, Xirallic, Metallics, Varnish, CARC, Waterborne |
| Control Options | Advanced |
| Fluid Inlet Size (in) | 1.5 |
| Fluid Inlet Size (mm) | 38.1 |
| Fluid Inlet Thread Type | Tri-Clamp |
| Fluid Outlet Size (in) | 1.5 |
| Fluid Outlet Size (mm) | 38.1 |
| Fluid Outlet Thread Type | Tri-Clamp |
| Lower Type | Sealed Ultralife |
| Material | Stainless Steel |
| Maximum Continuous Cycle Rate (CPM) | 20 |
| Maximum Flow Rate (L/min) | 50 |
| Maximum Operating Temperature (°C) | 40 |
| Maximum Working Pressure (MPa) | 3.2 |
| Maximum Working Pressure (bar) | 31.7 |
| Maximum Working Pressure (psi) | 460 |
| Minimum Operating Temperature (°C) | 0 |
| Model | E-Flo |
| Mount Type | Wall or Stand Mount |
| Phase | 3 |
| Portable | Non-Portable |
| Pump Size (cc) | 2500 |
| Series | Dci 4-Ball |
| Type | Electric Piston Pump |
| Voltage (V) | 380-480 VAC |
| Weight (kg) | 116 |
