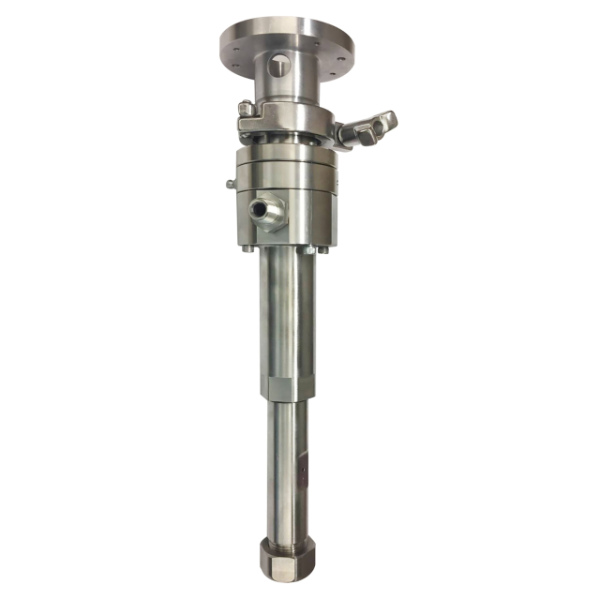

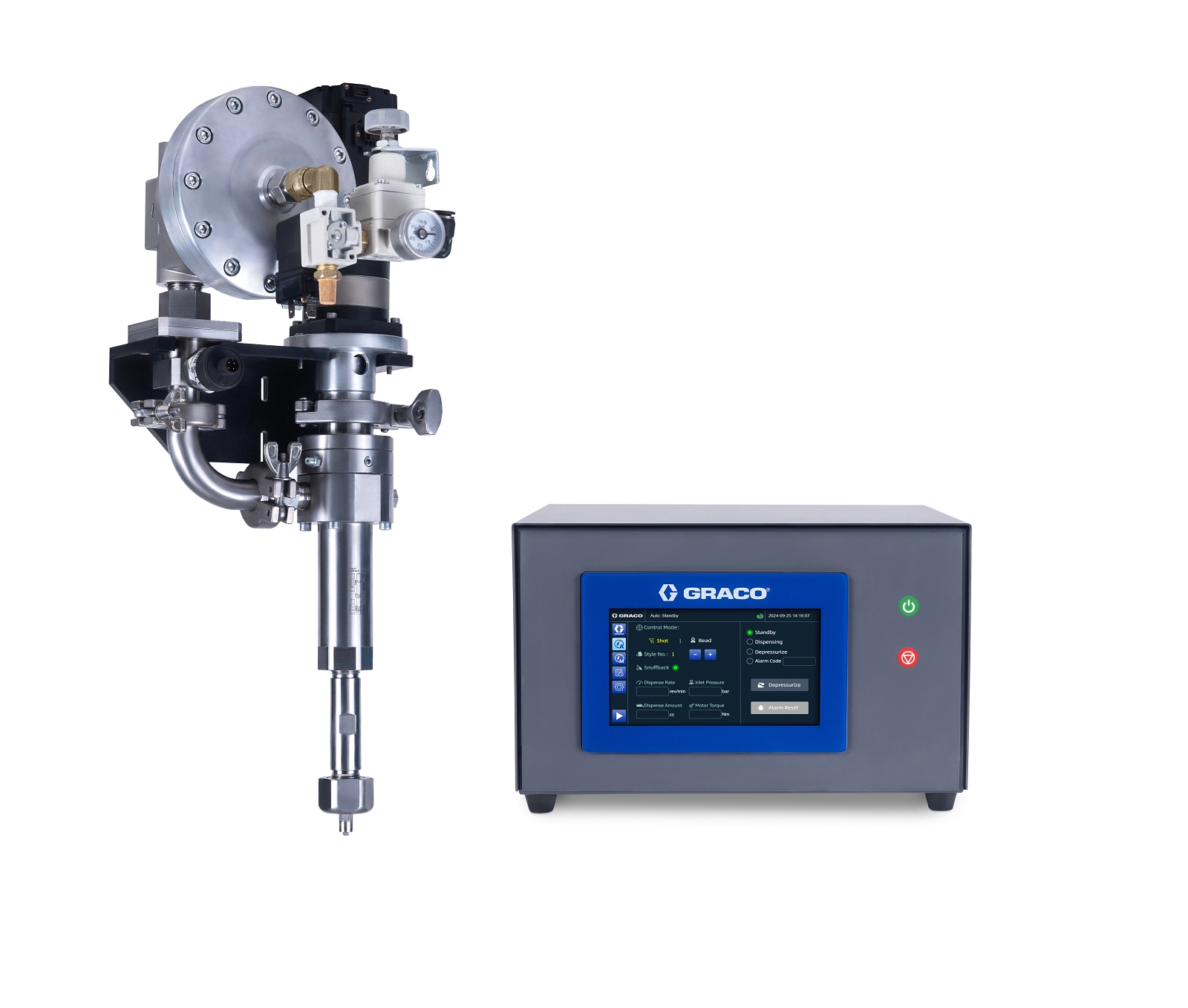

Progressive Cavity Pump System, 1.00 cc/rev, Control Box, High Wear

Part Number: 2010629

product image

Progressive Cavity Pump System, 1.00 cc/rev, Control Box, High Wear

Part Number: 2010629

Designed for maximum service life with minimum maintenance, Graco’s Progressive Cavity Pump efficiently handles single component middle to high viscosity materials, as well as highly abrasive thermal interface material (TIM).
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
Designed for maximum service life with minimum maintenance, Graco’s Progressive Cavity Pump efficiently handles single component middle to high viscosity materials, as well as highly abrasive thermal interface material (TIM).
  • Progressive cavity pump technology: Continuous feed and progressive cavity metering ensure repeatability of (±) 1% depending on material spec and shot size, which saves filling time and improves dispensing efficiency.
  • Adjustable flow range: Flexible adjustment of dispensing flow enables higher productivity.
  • High wear-resistant fluid path for TIM dispensing: The fluid path is specially designed to minimize downtime and reduce total cost of ownership.

Specifications & Documents

Technical Specifications

Convert to Metric
Amperage (A) 10
Component Type Single Component
Controls Yes
Maximum Flow Rate (cc/min) 150
Maximum Operating Temperature (°F) 167
Maximum Viscosity (mPa·s) 1000000
Minimum Shot Size (cc) 0.08
Minimum Viscosity (mPa·s) 5000
Overall Height (in) 12.7
Type Dispensing System
Wetted Material Stainless Steel, FKM, UHMW, Alloy Steel, Acetal, Chrome
Amperage (A) 10
Component Type Single Component
Controls Yes
Maximum Flow Rate (cc/min) 150
Maximum Operating Temperature (°C) 75
Maximum Viscosity (mPa·s) 1000000
Minimum Shot Size (cc) 0.08
Minimum Viscosity (mPa·s) 5000
Overall Height (cm) 323
Type Dispensing System
Wetted Material Stainless Steel, FKM, UHMW, Alloy Steel, Acetal, Chrome
