Drum agitator without mounting tube, air driven, 1/2 HP, 31.25 inches (79.3 cm) in length, carbon steel material
Part Number: 204995

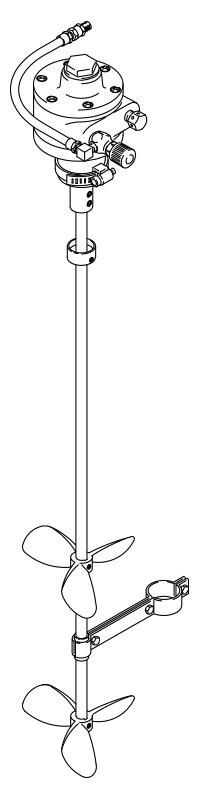

Image is for illustrative purposes only.
Drum agitator without mounting tube, air driven, 1/2 HP, 31.25 inches (79.3 cm) in length, carbon steel material
Part Number: 204995
Mounts on 237307 cover; mounts to suction tube or pump cylinder.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
Mounts on 237307 cover; mounts to suction tube or pump cylinder.
- Agitators mount directly to mix tank or drum covers
- Dual propeller ensures efficient and thorough mixing
- Easy adjustment knob for fine tuning agitator speed to ideal mixing parameters
Specifications & Documents
Technical Specifications
Convert to Metric| Construction | Carbon Steel, Aluminum |
|---|---|
| For Use With | 55 Gallon Drums |
| Maximum Speed (RPM) | 800 |
| Maximum Working Pressure (psi) | 100 |
| Motor Type | Pneumatic - Rotary Vane |
| Power Rating (HP) | 0.75 |
| Type | Agitator |
| Weight (lb) | 11 |
| Construction | Carbon Steel, Aluminum |
| For Use With | 55 Gallon Drums |
| Maximum Speed (RPM) | 800 |
| Maximum Working Pressure (bar) | 7 |
| Maximum Working Pressure (kPa) | 700 |
| Maximum Working Pressure (psi) | 100 |
| Motor Type | Pneumatic - Rotary Vane |
| Type | Agitator |
| Weight (kg) | 5 |
Product Manuals
CAD Drawings
204995-3D-EN.zip
(1 MB)
Sales Literature
Certifications
MSD201EN, Loctite 567 Low Strength Thread Sealant, Safety Data Sheet, English
(141 KB)
(English Only)
