Viscount II

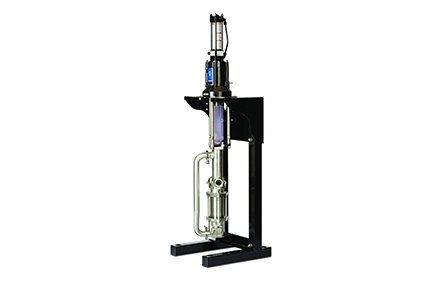

Viscount II 1900/3100 Bin Supply Piston Pumps for Ink Applications
Part Number: 246938
Viscount II
Viscount II 1900/3100 Bin Supply Piston Pumps for Ink Applications
Part Number: 246938
Save up to 80% on energy costs when you choose a hydraulic piston pump! When paired with any of Graco's priming piston pumps, the Viscount II hydraulic air motor offers exceptional cost savings by operating on 20% of the energy used by a pneumatic motor. The Viscount II, Graco's patented hydraulic m...
More InfoIf you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
Save up to 80% on energy costs when you choose a hydraulic piston pump! When paired with any of Graco's priming piston pumps, the Viscount II hydraulic air motor offers exceptional cost savings by operating on 20% of the energy used by a pneumatic motor. The Viscount II, Graco's patented hydraulic motor, replaces the King, Bulldog or Senator motors with the 800 or 2100 pump.
- Clean, quiet and efficient hydraulic power
- Extremely durable hydraulic pump with long-life packing design
- Highly efficient Viscount hydraulic motor reduces energy costs
- Stainless steel wetted parts with neoprene packing
Specifications & Documents
Technical Specifications
Convert to Metric| Application | Industrial |
|---|---|
| Fluid Outlet Size (in) | 1 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| Material | Carbon Steel |
| Maximum Flow Rate (GPM) | 3 |
| Maximum Hydraulic Fluid Inlet Pressure (psi) | 1500 |
| Maximum Operating Temperature (°F) | 180 |
| Maximum Working Pressure (MPa) | 15.9 |
| Maximum Working Pressure (psi) | 2300 |
| Model | Viscount |
| Package Options | None |
| Power Type | Hydraulic |
| Pump Ratio | 19:1 |
| Series | II |
| Type | Piston Transfer Pump |
| Application | Industrial |
| Fluid Outlet Size (in) | 1 |
| Fluid Outlet Size (mm) | 25.4 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| Material | Carbon Steel |
| Maximum Flow Rate (L/min) | 11.4 |
| Maximum Hydraulic Fluid Inlet Pressure (bar) | 103 |
| Maximum Hydraulic Fluid Inlet Pressure (kPa) | 10300 |
| Maximum Hydraulic Fluid Inlet Pressure (psi) | 1500 |
| Maximum Operating Temperature (°C) | 82 |
| Maximum Working Pressure (MPa) | 15.9 |
| Maximum Working Pressure (bar) | 159 |
| Maximum Working Pressure (kPa) | 15900 |
| Maximum Working Pressure (psi) | 2300 |
| Model | Viscount |
| Package Options | None |
| Power Type | Hydraulic |
| Pump Ratio | 19:1 |
| Series | II |
| Type | Piston Transfer Pump |
