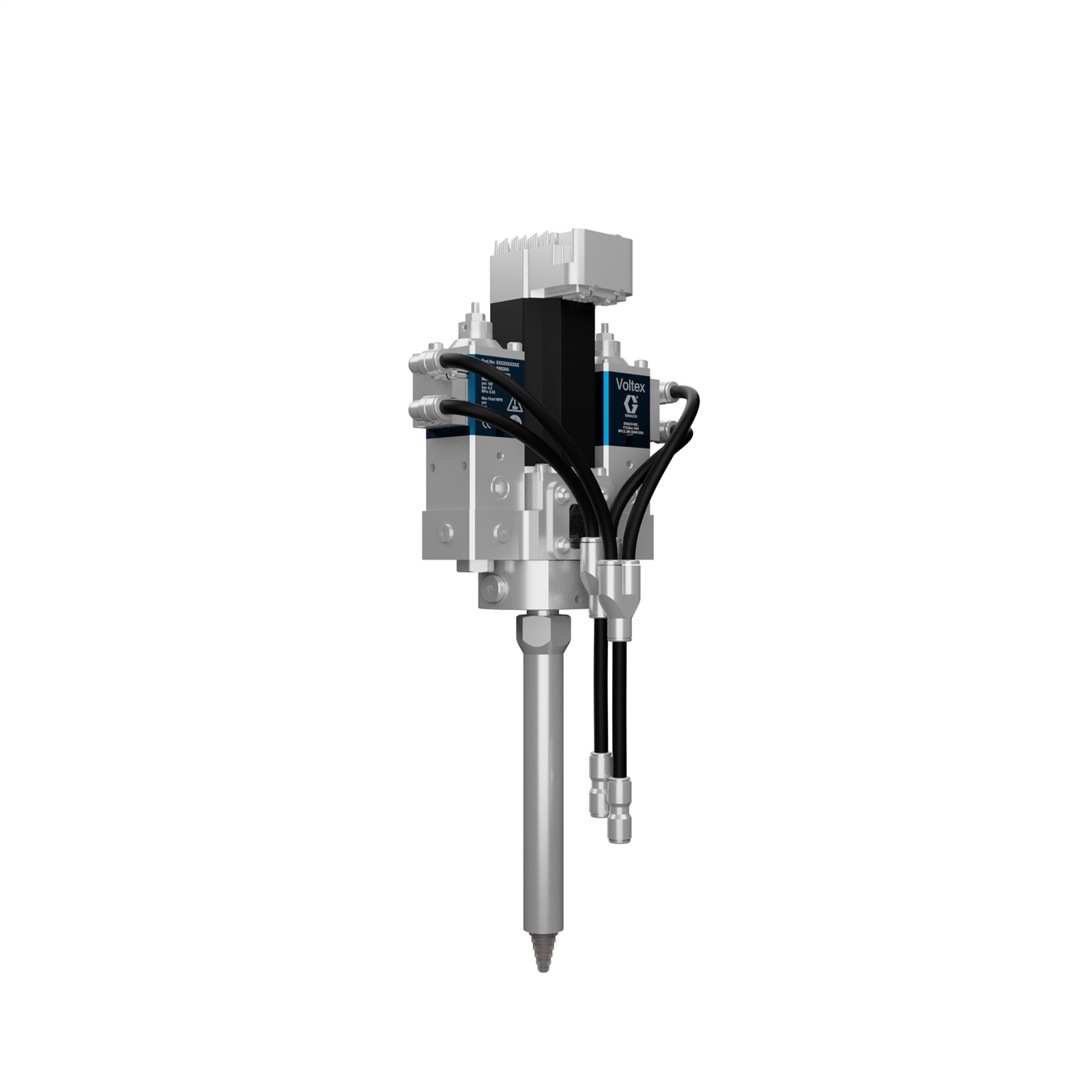

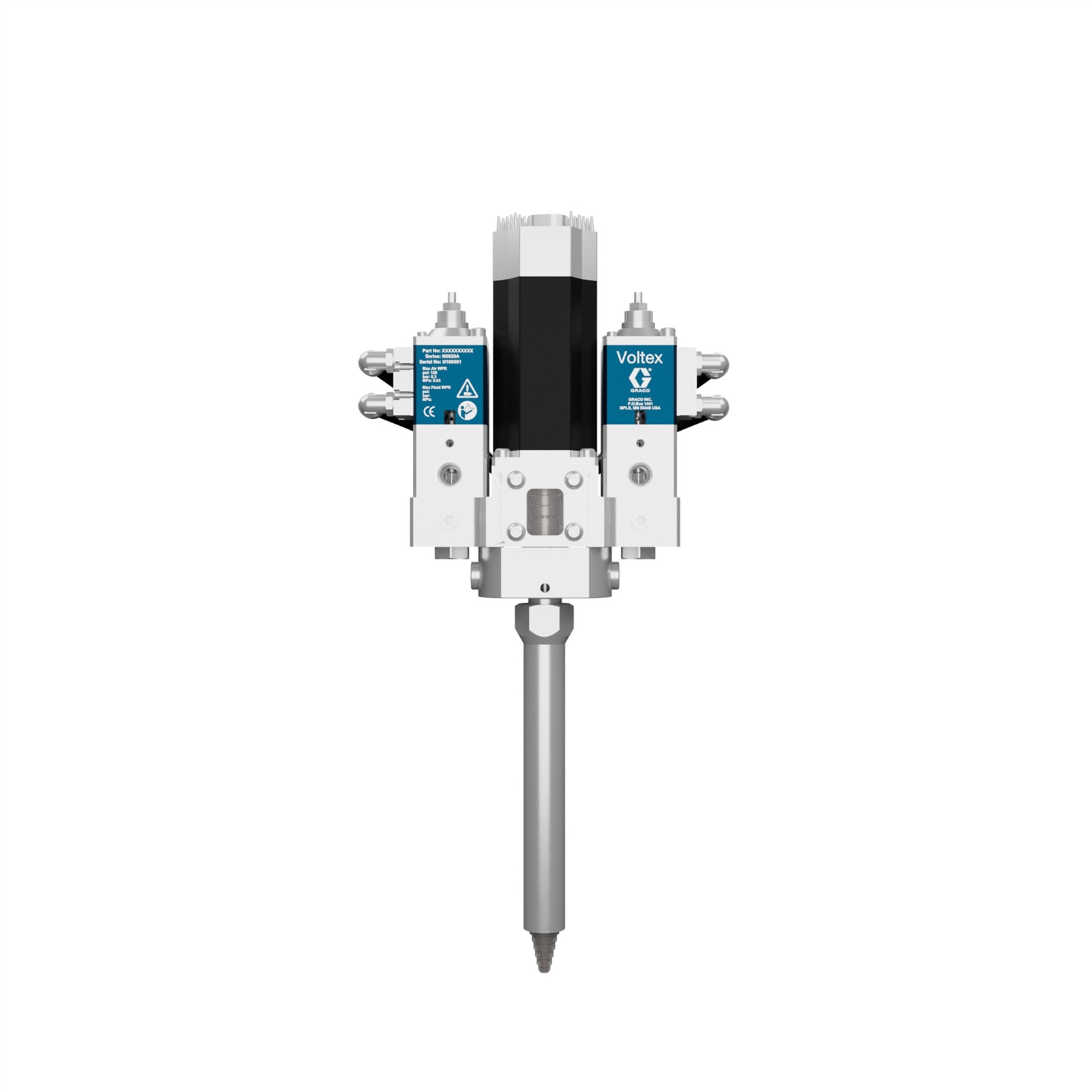

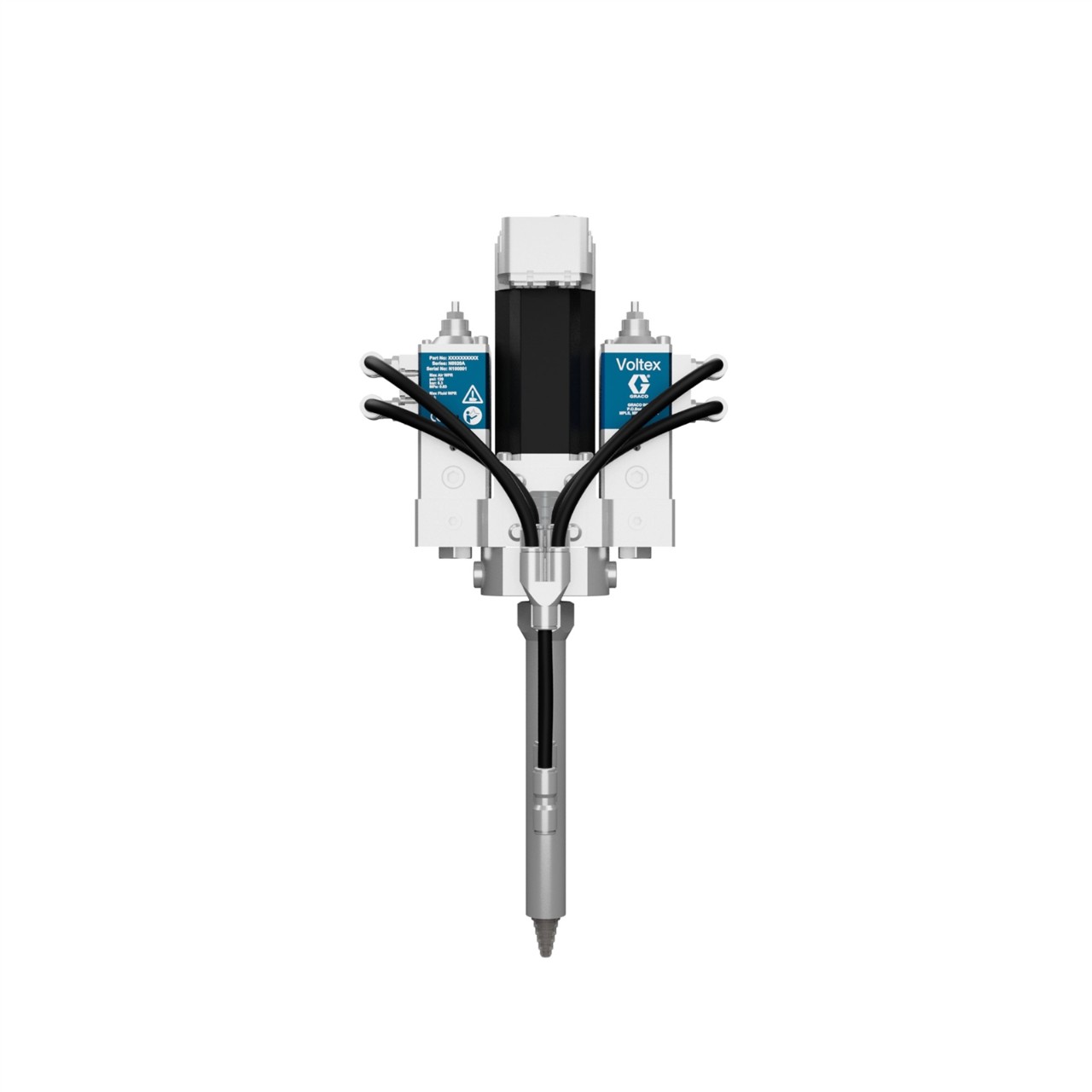

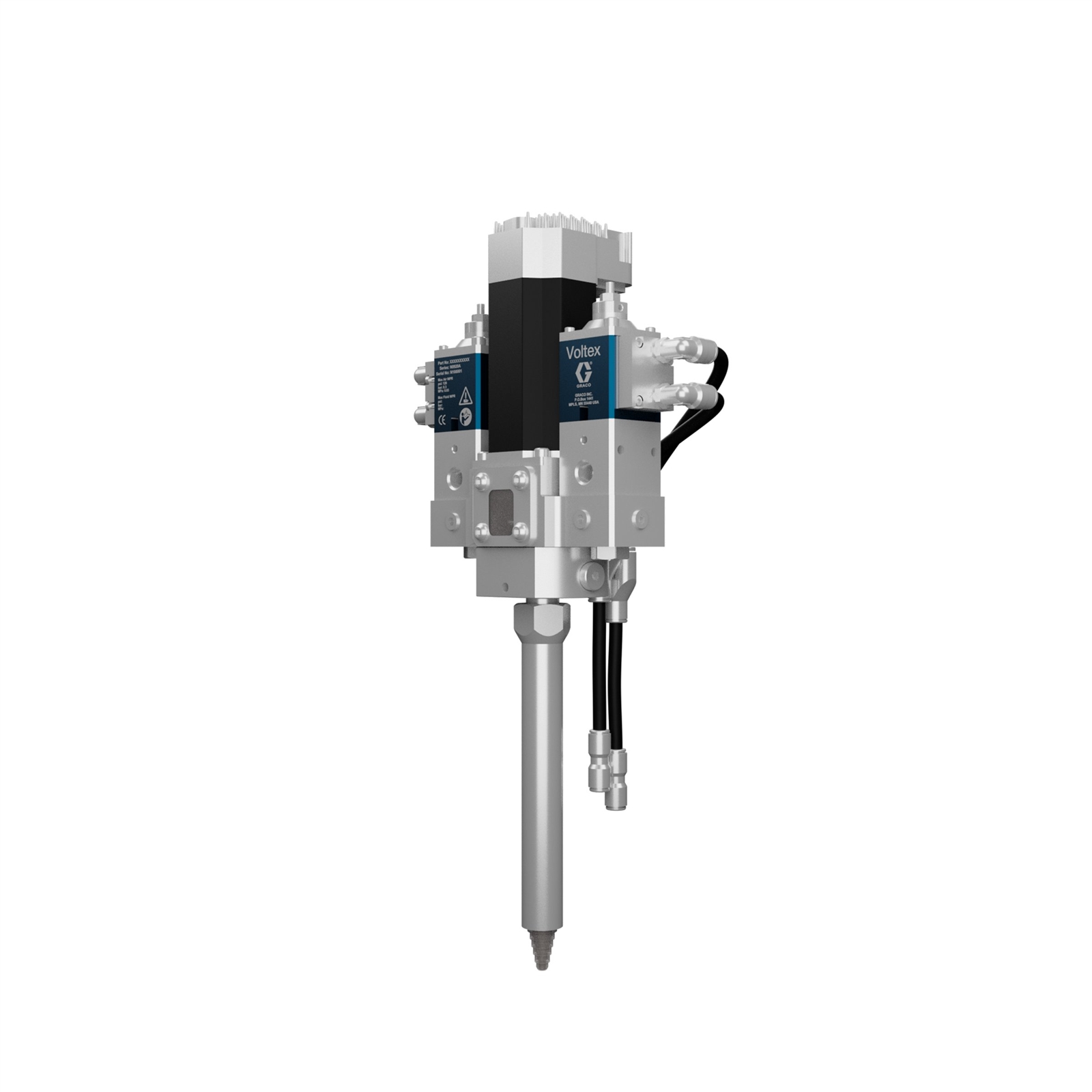

Voltex Two-Component Dynamic Mix Valve
Part Number: 25T670
Image is for illustrative purposes only.
Image is for illustrative purposes only.
Image is for illustrative purposes only.
Image is for illustrative purposes only.
Voltex
Voltex Two-Component Dynamic Mix Valve
Part Number: 25T670
The Voltex Dynamic Mix Valve is a rotary static valve that consistently mixes and dispenses materials requiring exceptional mixing energy. Engineered with rugged components and precision controls that eliminate dispensing inconsistencies, reduce maintenance downtime, and optimize material usage.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
The Voltex Dynamic Mix Valve is a rotary static valve that consistently mixes and dispenses materials requiring exceptional mixing energy. Engineered with rugged components and precision controls that eliminate dispensing inconsistencies, reduce maintenance downtime, and optimize material usage.
Reliably mixes and dispenses difficult foaming polyurethanes, low viscosity silicones, and other hard to blend two component chemistries.
- Easily integrates with Graco meter, mix, and dispense systems like the PR70 for a complete dispensing solution.
- Control system delivers precision RPM control, and real time monitoring for dispensing process stability.
- Built with durable check valves and disposable mixers that reduce maintenance and downtime.
Specifications & Documents
Technical Specifications
Convert to Metric| Air Inlet Size (in) | 1/8 |
|---|---|
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Ambient/Warm Melt/Hot Melt | Ambient |
| Application | Encapsulation, Gasketing, Potting, Urethane, Sealing, Molding |
| Compatible Material | Foaming Urethane, Silicone |
| Component Type | Plural-Component |
| Construction | UHMWPE, Aluminum, Stainless Steel, Tungsten Carbide, Chemical Resistant O-Rings |
| Fluid Inlet Size (in) | 1/4 |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (in) | 7/8 - 14 |
| Fluid Outlet Thread Gender | Male |
| Fluid Outlet Thread Type | UNF |
| Frequency (Hz) | 50/60 |
| Gun Activation | Automatic |
| Maximum Fluid Inlet Pressure (psi) | 3000 |
| Maximum Fluid Working Pressure (psi) | 1000 |
| Maximum Speed (RPM) | 4400 |
| Maximum Viscosity (cP) | 100000 |
| Maximum Working Pressure (MPa) | 20.7 |
| Maximum Working Pressure (psi) | 3000 |
| Metering Valve Orifice Size (in) | 0.016;0.020;0.024;0.028;0.031;0.035;0.039;0.042;0.047;0.052;0.055;0.060;0.063;0.067;0.073;0.083 |
| Mix Type | Static Dynamic |
| Model | Voltex |
| Mount Hole Thread Gender | Female |
| Mount Type | No Mount |
| Power Type | Electric |
| Type | Dispense Valve |
| Weight (lb) | 11.7 |
| Air Inlet Size (in) | 1/8 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Ambient/Warm Melt/Hot Melt | Ambient |
| Application | Encapsulation, Gasketing, Potting, Urethane, Sealing, Molding |
| Compatible Material | Foaming Urethane, Silicone |
| Component Type | Plural-Component |
| Construction | UHMWPE, Aluminum, Stainless Steel, Tungsten Carbide, Chemical Resistant O-Rings |
| Fluid Inlet Size (in) | 1/4 |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (in) | 7/8 - 14 |
| Fluid Outlet Thread Gender | Male |
| Fluid Outlet Thread Type | UNF |
| Frequency (Hz) | 50/60 |
| Gun Activation | Automatic |
| Maximum Flow Rate (cc/sec) | 50 |
| Maximum Fluid Inlet Pressure (psi) | 3000 |
| Maximum Fluid Working Pressure (psi) | 1000 |
| Maximum Speed (RPM) | 4400 |
| Maximum Viscosity (cP) | 100000 |
| Maximum Working Pressure (MPa) | 20.7 |
| Maximum Working Pressure (bar) | 207 |
| Maximum Working Pressure (psi) | 3000 |
| Metering Valve Orifice Size (in) | 0.016;0.020;0.024;0.028;0.031;0.035;0.039;0.042;0.047;0.052;0.055;0.060;0.063;0.067;0.073;0.083 |
| Metering Valve Orifice Size (mm) | 0.41;0.51;0.61;0.71;0.79;0.89;0.99;1.07;1.19;0.132;1.40;1.52;1.60;1.70; 1.85;2.18 |
| Mix Type | Static Dynamic |
| Model | Voltex |
| Mount Hole Size (mm) | 4X M6 X 1.0 |
| Mount Hole Thread Gender | Female |
| Mount Type | No Mount |
| Power Type | Electric |
| Type | Dispense Valve |
