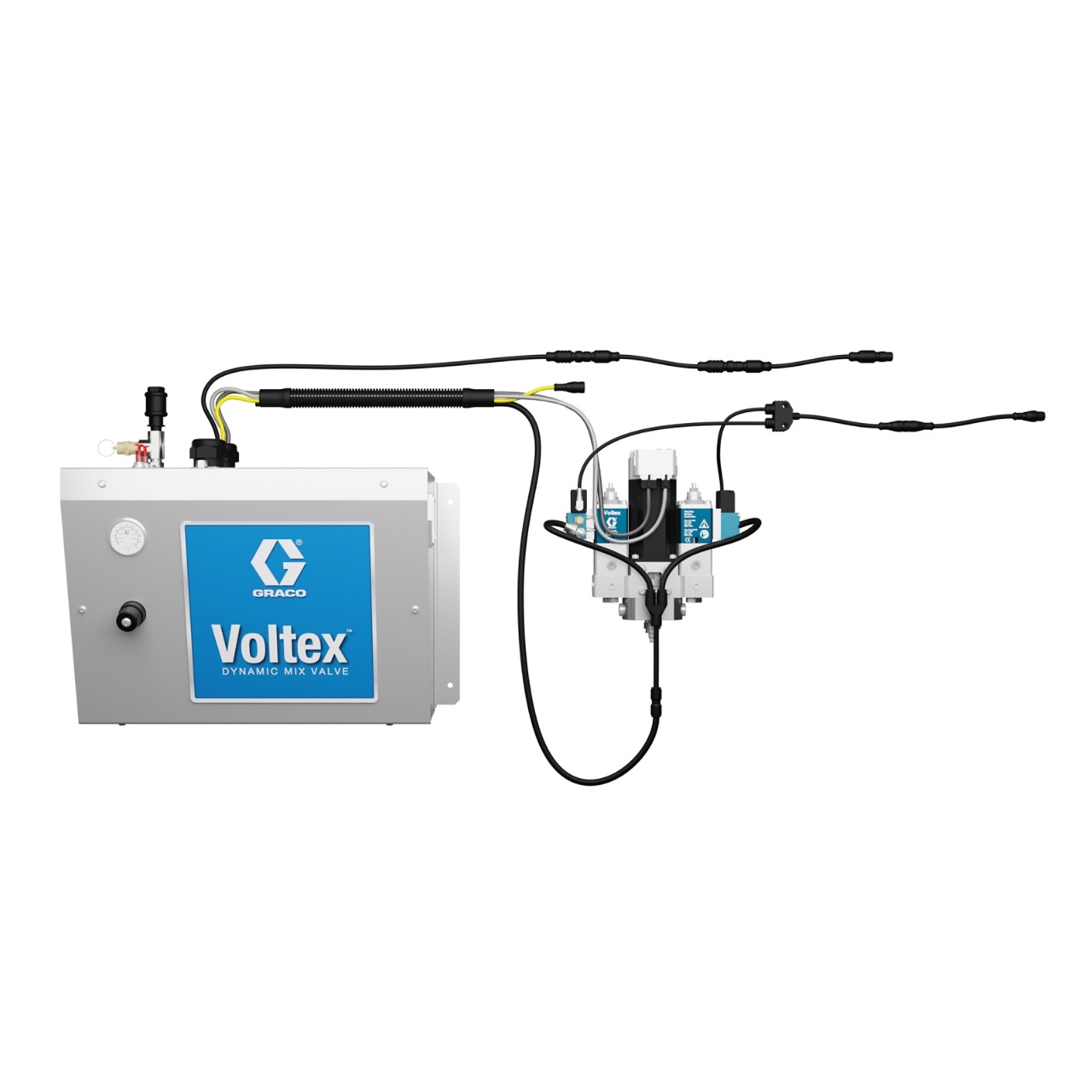

Voltex System Package with Valve, Wall Mount Control Box, and Cable Kit for EFR Integration

Part Number: 25U258

Image is for illustrative purposes only.

Voltex System Package with Valve, Wall Mount Control Box, and Cable Kit for EFR Integration

Part Number: 25U258

The Voltex Dynamic Mix Valve is a rotary static valve that consistently mixes and dispenses materials requiring exceptional mixing energy. Engineered with rugged components and precision controls that eliminate dispensing inconsistencies, reduce maintenance downtime, and optimize material usage.
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
The Voltex Dynamic Mix Valve is a rotary static valve that consistently mixes and dispenses materials requiring exceptional mixing energy. Engineered with rugged components and precision controls that eliminate dispensing inconsistencies, reduce maintenance downtime, and optimize material usage.

Reliably mixes, recirculates, and dispenses difficult foaming polyurethanes, low viscosity silicones, and other hard to blend two component chemistries.

  • Easily integrates with Graco EFR meter, mix, and dispense systems with included cables and control box for a complete dispensing solution.
  • Control system delivers precision RPM control, and real time monitoring for dispensing process stability.
  • Built with durable check valves and disposable mixers that reduce maintenance and downtime.
  • System package contains all electronic components necessary for running the precision servo motor of the Voltex Dynamic Mix Valve.

Specifications & Documents

Technical Specifications

Convert to Metric
Air Inlet Size (in) 5/16
Air Inlet Thread Gender Female
Maximum Fluid Temperature (°F) 149
Maximum Fluid Working Pressure (MPa) 6.9
Maximum Fluid Working Pressure (psi) 1000
Maximum Operating Temperature (°F) 149
Maximum Working Pressure (MPa) 6.9
Type Dispensing System
Air Inlet Size (mm) 8
Air Inlet Thread Gender Female
Maximum Fluid Temperature (°C) 65
Maximum Fluid Working Pressure (MPa) 6.9
Maximum Fluid Working Pressure (bar) 6.9
Maximum Operating Temperature (°C) 65
Maximum Working Pressure (MPa) 6.9
Maximum Working Pressure (bar) 68.9
Type Dispensing System
