SaniForce 2150
SaniForce 2150 Aluminum Diaphragm Pump with Flange Connection, 316 S/S Seats, PTFE O-Rings, Balls & Diaphragms
Part Number: FA3111
![product image](/content/dam/pim/graco/pro/sanitary/SaniForce_2150_SS_Alum.jpg/_jcr_content/renditions/cq5dam.web.1280.1280.jpeg)
SaniForce 2150
SaniForce 2150 Aluminum Diaphragm Pump with Flange Connection, 316 S/S Seats, PTFE O-Rings, Balls & Diaphragms
Part Number: FA3111
Graco’s SaniForce 2150 air-operated double diaphragm sanitary pumps have one of the best, most durable, lube-free air valves in the industry. Ideal for applications requiring high flow rates and portability, Graco’s dependable diaphragm pumps offer a wide range of food-grade elastomers including San...
More InfoIf you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Graco’s SaniForce 2150 air-operated double diaphragm sanitary pumps have one of the best, most durable, lube-free air valves in the industry. Ideal for applications requiring high flow rates and portability, Graco’s dependable diaphragm pumps offer a wide range of food-grade elastomers including Santoprene, PTFE and overmolded EPDM/PTFE.
SaniForce 2150 Double Diaphragm Pump
- 2-1/2 in (63.5 mm) Tri-clamp connection
- Flow rates up to 150 gpm (567 lpm) (568 lpm)
- Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
- All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21
- High volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from original container to smaller receptacles - up to 20,000 cps
- Suitable to pump such products as: concentrated fruit juices, sauces, pastes, starches, wine, food-grade oil, jams and jellies
Patented, lube-free air valve
- Three-way pilot valve for no-stick operation
- Long-lasting 16 Series stainless steel rod design for long life and corrosion resistance
- 1040, 1590 and 2150 SaniForce pumps use common center sections
- 100% externally serviceable air valve
PTFE/EPDM Overmolded Diaphragms
- Overmolded diaphragm plate with PTFE on the fluid side and EPDM on the air side on Graco's PTFE/EPDM diaphragms so there's no place to harbor bacteria
- Improve wear and diaphragm life with no exposed diaphragm plate on the fluid side
- Longer diaphragm life in abrasive applications that still require PTFE
- Available on the SaniForce 1040, 1590, 2150 and SaniForce HS 1590 and 3150
Specifications & Documents
Technical Specifications
Convert to MetricAir Exhaust Port Size (in) | 3/4 |
---|---|
Air Exhaust Port Thread Gender | Female |
Air Exhaust Port Thread Type | NPT |
Air Inlet Size (in) | 1/2 |
Air Inlet Thread Gender | Female |
Air Inlet Thread Type | NPT |
Application | Sanitary |
Ball Material | PTFE |
Center Section Material | Aluminum |
Compatible Material | Edible Oil, Food and Personal Care |
Connection Type | Tri-Clamp |
Diaphragm Compatible Material | PTFE |
Diaphragm Material | PTFE |
Fluid Inlet Size (in) | 2 |
Fluid Outlet Size (in) | 2 |
Fluid Section Material | 316L Stainless Steel |
For Use With | Food and Personal Care |
Manifold Configuration | End Port |
Manifold O-Ring Material | PTFE |
Material | Stainless Steel |
Maximum Air Consumption (SCFM) | 175 |
Maximum Air Pressure (MPa) | 0.8 |
Maximum Air Pressure (psi) | 120 |
Maximum Cycle Rate (CPM) | 165 |
Maximum Flow Rate (GPM) | 150 |
Maximum Fluid Pressure (MPa) | 0.8 |
Maximum Fluid Pressure (psi) | 120 |
Maximum Solid Size (in) | 0.25 |
Model | SaniForce |
Power Source | Pneumatic |
Pump Ratio | 1:1 |
Seat Material | 316L Stainless Steel |
Series | 2150 |
Standards Met | ATEX, CE, FDA Compliant Materials |
Type | Pneumatic Diaphragm Pump |
Air Exhaust Port Size (in) | 3/4 |
Air Exhaust Port Thread Gender | Female |
Air Exhaust Port Thread Type | NPT |
Air Inlet Size (in) | 1/2 |
Air Inlet Thread Gender | Female |
Air Inlet Thread Type | NPT |
Application | Sanitary |
Ball Material | PTFE |
Center Section Material | Aluminum |
Compatible Material | Edible Oil, Food and Personal Care |
Connection Type | Tri-Clamp |
Diaphragm Compatible Material | PTFE |
Diaphragm Material | PTFE |
Fluid Inlet Size (cm) | 6.35 |
Fluid Inlet Size (in) | 2 |
Fluid Inlet Size (mm) | 63.5 |
Fluid Outlet Size (cm) | 6.35 |
Fluid Outlet Size (in) | 2 |
Fluid Outlet Size (mm) | 63.5 |
Fluid Section Material | 316L Stainless Steel |
For Use With | Food and Personal Care |
Manifold Configuration | End Port |
Manifold O-Ring Material | PTFE |
Material | Stainless Steel |
Maximum Air Pressure (MPa) | 0.8 |
Maximum Air Pressure (bar) | 8 |
Maximum Air Pressure (kPa) | 800 |
Maximum Air Pressure (psi) | 120 |
Maximum Cycle Rate (CPM) | 165 |
Maximum Flow Rate (L/min) | 568 |
Maximum Fluid Pressure (MPa) | 0.8 |
Maximum Fluid Pressure (bar) | 8 |
Maximum Fluid Pressure (kPa) | 800 |
Maximum Fluid Pressure (psi) | 120 |
Maximum Solid Size (cm) | 0.635 |
Maximum Solid Size (mm) | 6.35 |
Model | SaniForce |
Power Source | Pneumatic |
Pump Ratio | 1:1 |
Seat Material | 316L Stainless Steel |
Series | 2150 |
Standards Met | ATEX, CE, FDA Compliant Materials |
Type | Pneumatic Diaphragm Pump |
Product Manuals
CAD Drawings
Certifications

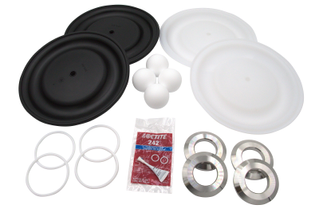

Repair Parts
Part No. | Description |
---|---|
236273 | Air Valve Repair Kit |
