ProBell
ProBell Applicator System, Standard, Solventborne, 50 mm bell cup, 1.25 mm nozzle and R5A150 applicator
Part Number: P5A150

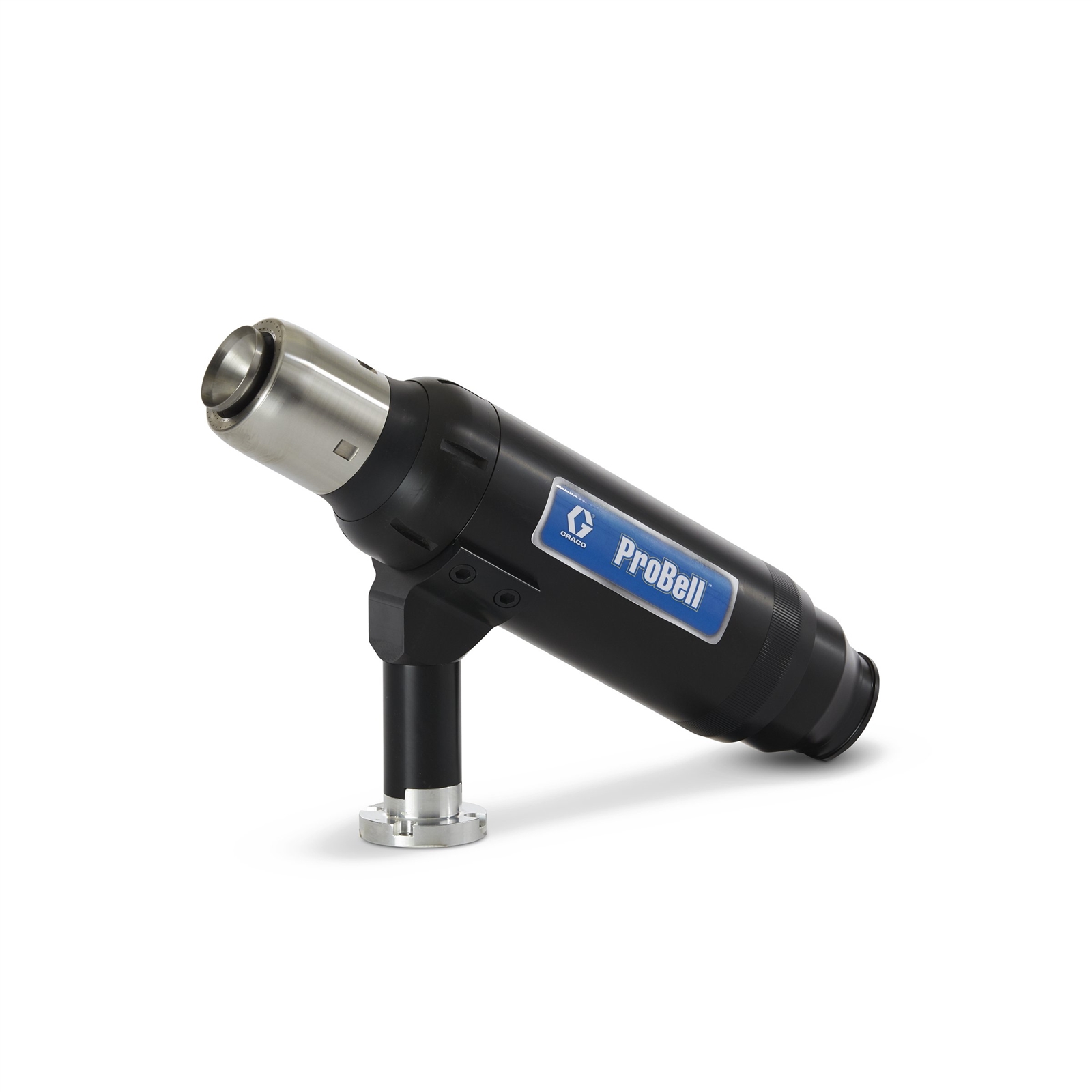

Image is for illustrative purposes only.
Image is for illustrative purposes only.
ProBell
ProBell Applicator System, Standard, Solventborne, 50 mm bell cup, 1.25 mm nozzle and R5A150 applicator
Part Number: P5A150
Combining rotary bell atomization with electrostatic technology is proven to provide up to 95 percent transfer efficiency. This ProBell integrates with solid wrist robots, reciprocators or fixed mounts.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
Combining rotary bell atomization with electrostatic technology is proven to provide up to 95 percent transfer efficiency. This ProBell integrates with solid wrist robots, reciprocators or fixed mounts.
ProBell delivers the spray performance, pattern and finish quality needed to exceed in any industry. Applications for which the rotary bell atomizer has proven itself include Tier 1 automotive, architectural panels and extruded aluminum, wood products, and more.
- System integration uses existing PLC (programmable logic controller) or new installation.
- Coiled fluid tube controls electrostatic resistivity for a wide range of material.
- Rotary bell atomizer has an aluminum bell cup with serrated edge. Equally spaced axial grooves act as channels for paint flow, producing uniform particles - ideal for atomizing difficult material like clear coats.
Specifications & Documents
Technical Specifications
Convert to Metric| Applicator Type | Automatic |
|---|---|
| Bell Cup Edge Type | Serrated |
| Bell Cup Material | Aluminum Standard |
| Bell Cup Size (in) | 2.0 |
| Compatible Paint Type | Solventborne |
| For Use With | R5A150 Applicator System |
| Gun Activation | Automatic |
| Gun Model | Solventborne |
| Gun Mount | Standard |
| Gun Type | Rotary Applicator |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Current Draw (µA) | 150 |
| Maximum Fluid Pressure (MPa) | 1.03 |
| Maximum Fluid Pressure (psi) | 150 |
| Maximum Turbine Speed (RPM) | 60000 |
| Maximum Viscosity (cSt) | 150 |
| Maximum Working Pressure (MPa) | 1 |
| Maximum Working Pressure (psi) | 150 |
| Minimum Bearing Air Pressure (MPa) | 0.5 |
| Minimum Bearing Air Pressure (psi) | 70 |
| Minimum Viscosity (cSt) | 30 |
| Model | ProBell |
| Nozzle Size (in) | 0.049 |
| Output Voltage (kV) | 100 |
| Spray Type | Rotary Bell, Electrostatic |
| Technology Type | Rotary Atomization |
| Type | Rotary Applicator |
| Applicator Type | Automatic |
| Bell Cup Edge Type | Serrated |
| Bell Cup Material | Aluminum Standard |
| Bell Cup Size (cm) | 5 |
| Bell Cup Size (in) | 2.0 |
| Bell Cup Size (mm) | 50 |
| Compatible Paint Type | Solventborne |
| For Use With | R5A150 Applicator System |
| Gun Activation | Automatic |
| Gun Model | Solventborne |
| Gun Mount | Standard |
| Gun Type | Rotary Applicator |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (bar) | 7.0 |
| Maximum Air Pressure (kPa) | 700 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Current Draw (µA) | 150 |
| Maximum Fluid Pressure (MPa) | 1.03 |
| Maximum Fluid Pressure (bar) | 10.3 |
| Maximum Fluid Pressure (kPa) | 1030 |
| Maximum Fluid Pressure (psi) | 150 |
| Maximum Turbine Speed (RPM) | 60000 |
| Maximum Viscosity (cSt) | 150 |
| Maximum Working Pressure (MPa) | 1 |
| Maximum Working Pressure (bar) | 10.3 |
| Maximum Working Pressure (kPa) | 1030 |
| Maximum Working Pressure (psi) | 150 |
| Minimum Bearing Air Pressure (MPa) | 0.5 |
| Minimum Bearing Air Pressure (bar) | 5 |
| Minimum Bearing Air Pressure (psi) | 70 |
| Minimum Viscosity (cSt) | 30 |
| Model | ProBell |
| Nozzle Size (cm) | 0.125 |
| Nozzle Size (mm) | 1.25 |
| Output Voltage (kV) | 100 |
| Spray Type | Rotary Bell, Electrostatic |
| Technology Type | Rotary Atomization |
| Type | Rotary Applicator |
Product Manuals
3A4738A, , Manual, ProBell Reflective Speed Sensor Kit, Instructions-Parts, English
(921 KB)
(English Only)
CAD Drawings
P1A130-3D-EN.zip
(3 MB)
Sales Literature
Certifications
MSD201EN, Loctite 567 Low Strength Thread Sealant, Safety Data Sheet, English
(141 KB)
(English Only)
Service Videos
Keep your ProBell rotary bell atomizer working well with step-by-step instructions on how to service a standard model (for solid wrist robot, reciprocator or fixed mount) and these components: 50 mm bell cup or air cap; check valve and seat; front housing and turbine.
