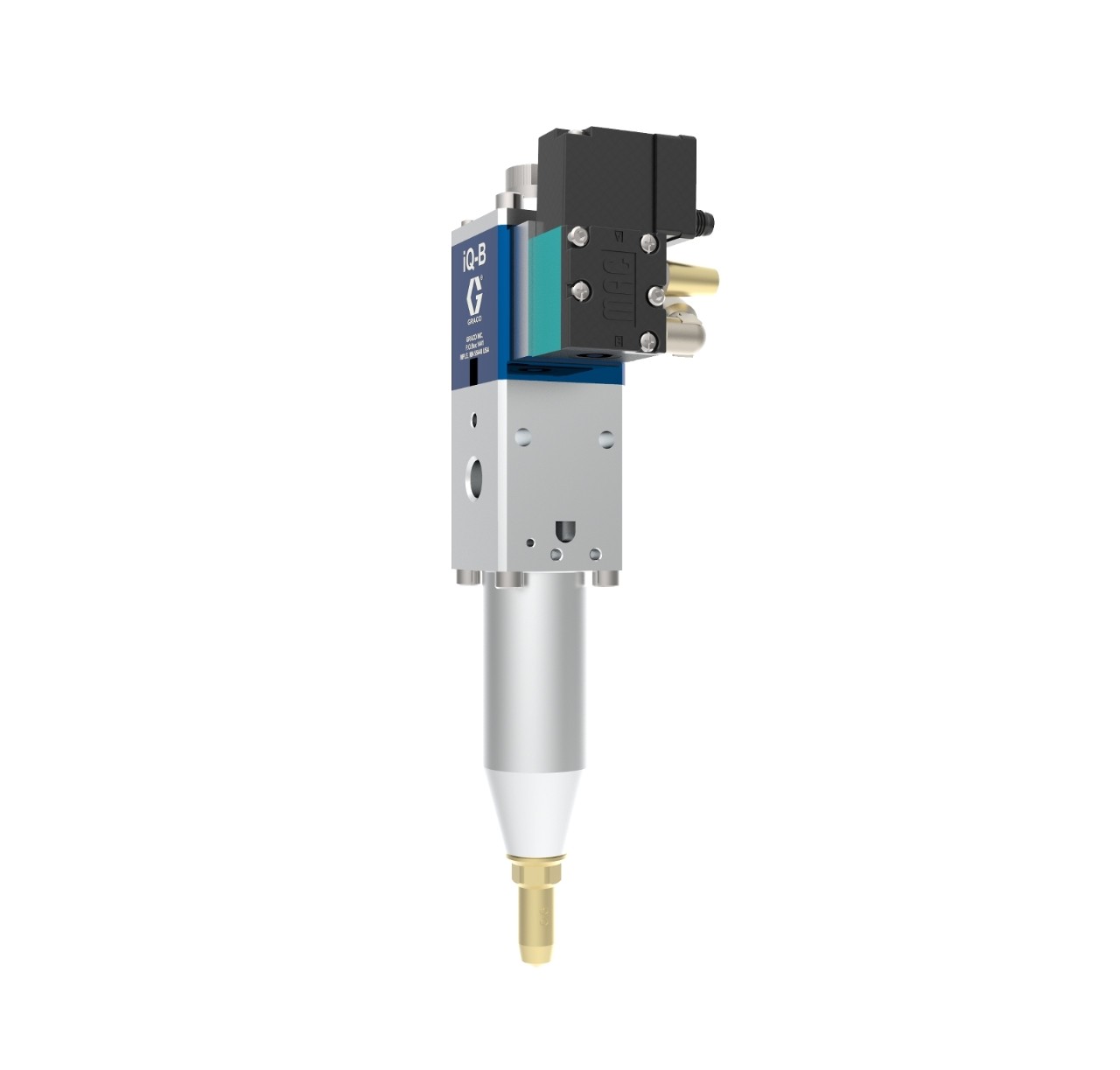

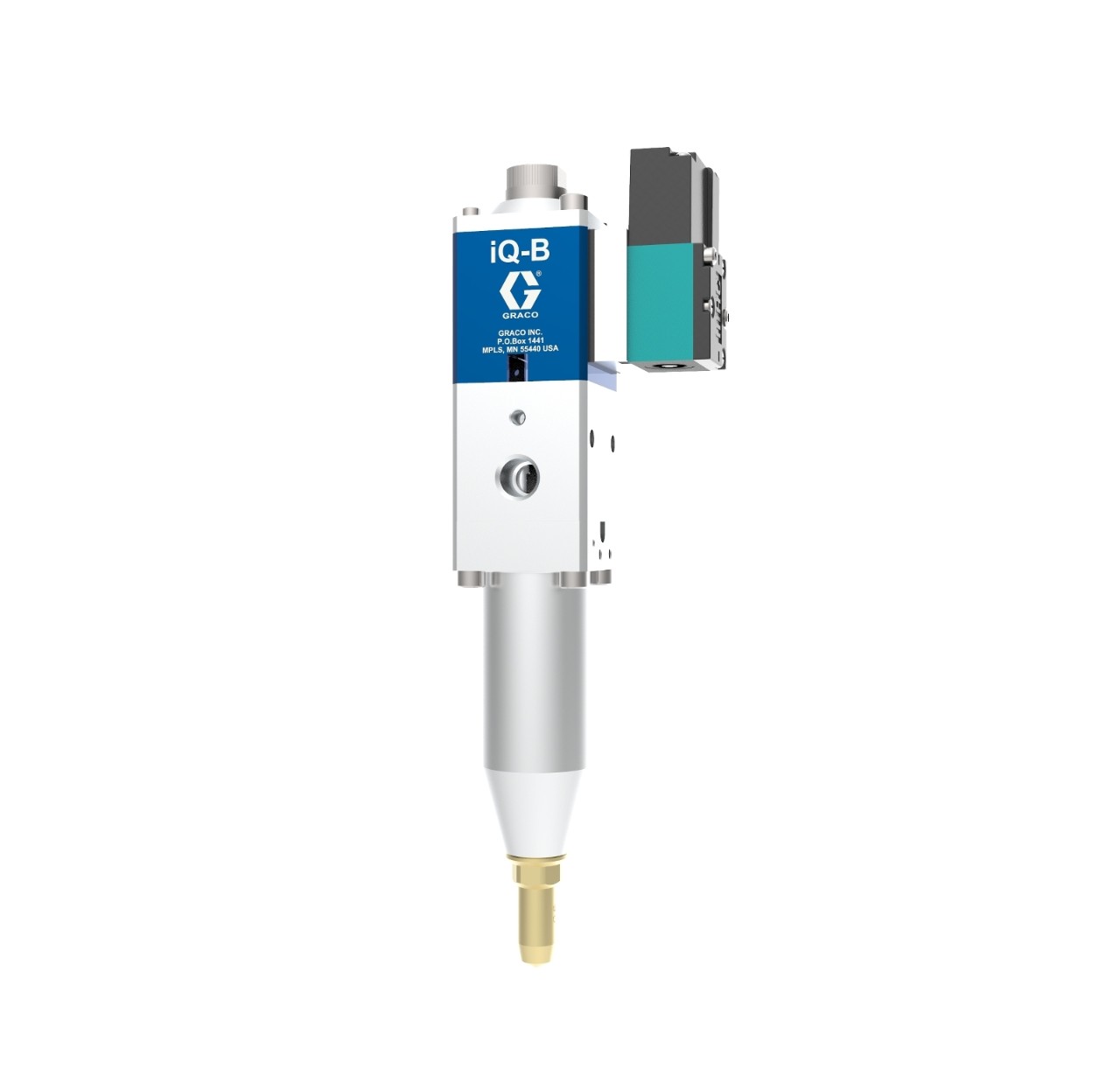

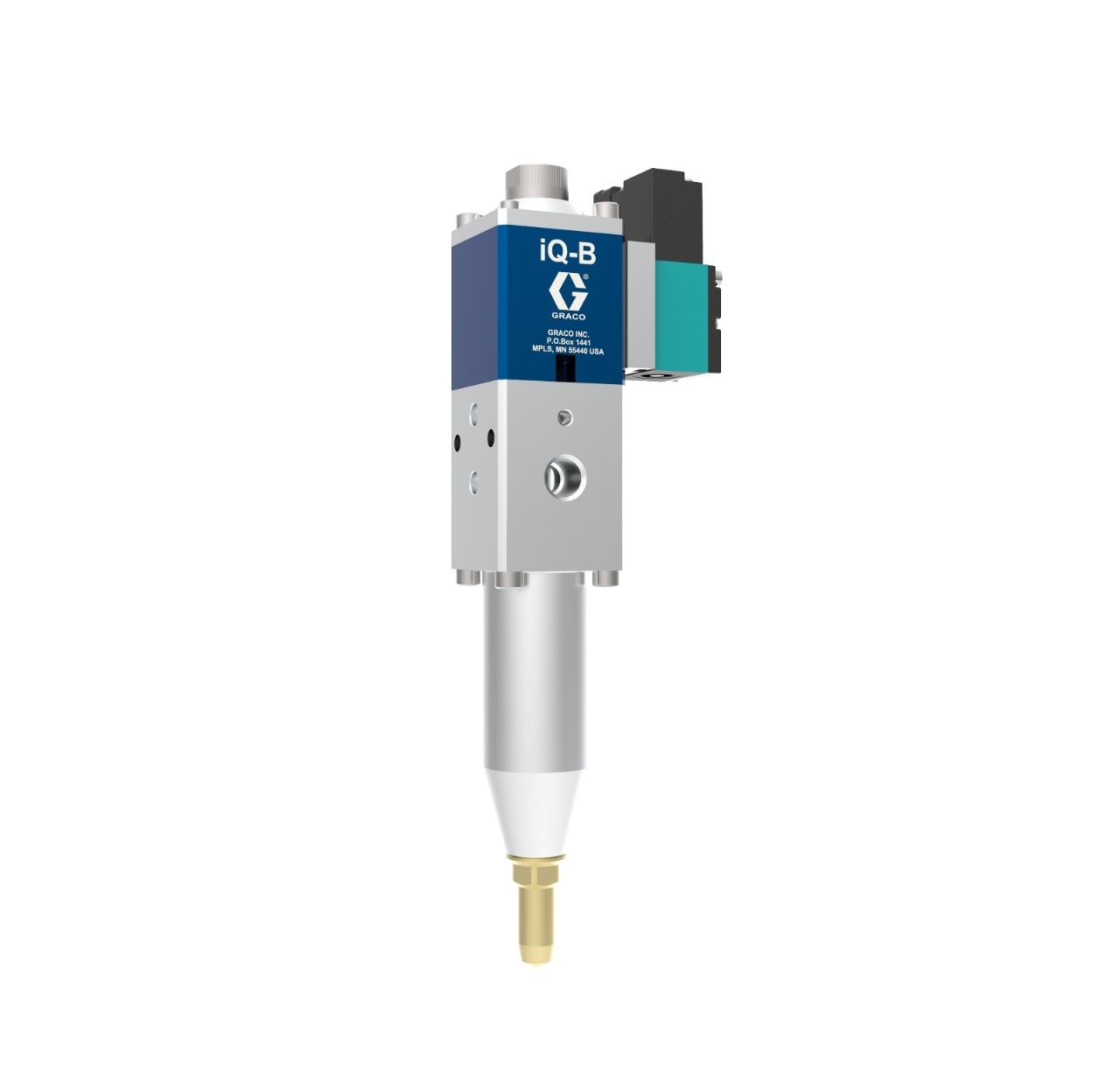

iQ Dispense Valve, Ball/Seat, Ambient, 0.079in (2.0mm) Tip, 2.36in (60mm) Nozzle, Direct Mount Solenoid
Part Number: V25HB060BA
iQ Dispense Valve, Ball/Seat, Ambient, 0.079in (2.0mm) Tip, 2.36in (60mm) Nozzle, Direct Mount Solenoid
Part Number: V25HB060BA
The iQ Ball and Seat Dispense Valve offers high reliability for single component sealant and adhesive dispensing applications.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
The iQ Ball and Seat Dispense Valve offers high reliability for single component sealant and adhesive dispensing applications.
- Maximize dispense time while minimizing maintenance costs and effort
- Perfect for standard on/off applications
- Ideal for low to high viscosity materials
- Wear-resistant seals and hardened components for long life
- Easy repeatable mounting for robotic and automated applications.
- 60mm nozzle is compatible with 60mm focal length vision systems
Specifications & Documents
Technical Specifications
Convert to Metric| Air Inlet Size (in) | 5/16 |
|---|---|
| Air Inlet Thread Type | Push-to-Connect |
| Ambient/Warm Melt/Hot Melt | Ambient |
| Applicator Type | Ball/Seat |
| Component Type | Single Component |
| Construction | Aluminum, UHMWPE, 17-4 Stainless Steel, PEEK, Chemical Resistant O-Rings, Silicone Nitride, CA 360 Brass, Coated Tool Steel, C2 Carbide with Cobalt Binder |
| Fluid Inlet Size (in) | 1/4 |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Thread Type | NPT |
| Gun Activation | Automatic |
| Maximum Air Pressure (MPa) | 0.83 |
| Maximum Air Pressure (psi) | 120 |
| Maximum Fluid Pressure (MPa) | 28 |
| Maximum Fluid Pressure (psi) | 4000 |
| Mount Location | Direct Mount Solenoid |
| Nozzle Size (in) | 0.079 |
| Outlet Block Length (in) | 2.4 |
| Solenoid Valve Voltage Rating (V dc) | 24 |
| Weight (lb) | 2.4 |
| Air Inlet Size (in) | 5/16 |
| Air Inlet Thread Type | Push-to-Connect |
| Ambient/Warm Melt/Hot Melt | Ambient |
| Applicator Type | Ball/Seat |
| Component Type | Single Component |
| Construction | Aluminum, UHMWPE, 17-4 Stainless Steel, PEEK, Chemical Resistant O-Rings, Silicone Nitride, CA 360 Brass, Coated Tool Steel, C2 Carbide with Cobalt Binder |
| Fluid Inlet Size (in) | 1/4 |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Thread Type | NPT |
| Gun Activation | Automatic |
| Maximum Air Pressure (MPa) | 0.83 |
| Maximum Air Pressure (bar) | 8.3 |
| Maximum Air Pressure (psi) | 120 |
| Maximum Fluid Pressure (MPa) | 28 |
| Maximum Fluid Pressure (bar) | 276 |
| Maximum Fluid Pressure (psi) | 4000 |
| Mount Location | Direct Mount Solenoid |
| Nozzle Size (mm) | 2.0 |
| Outlet Block Length (mm) | 60 |
| Solenoid Valve Voltage Rating (V dc) | 24 |
| Weight (kg) | 1.1 |
