Sharpe

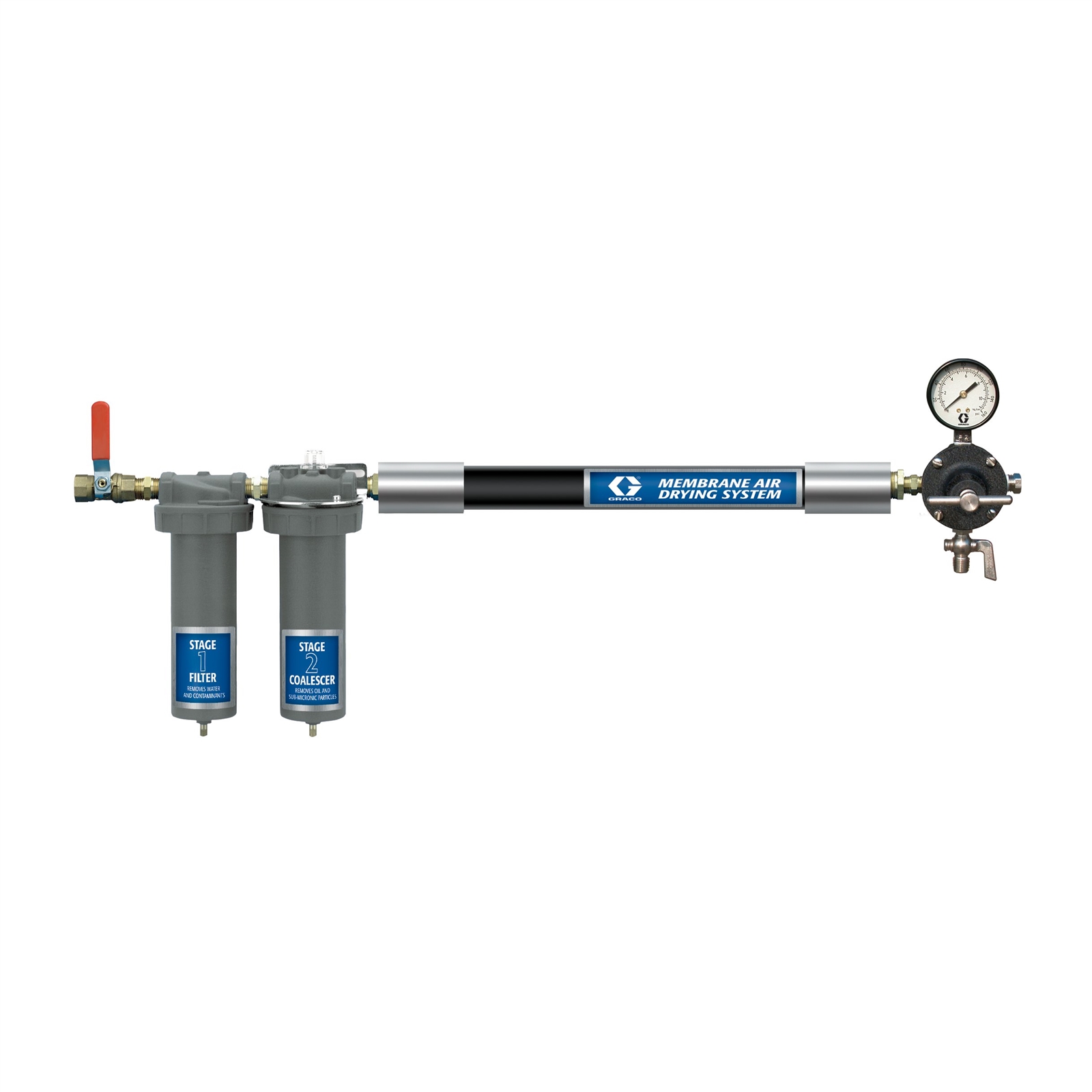

3-Stage Membrane Drying System, 3 stage systems includes: 234406, 234397 and 118560

234418

6760

Sharpe

3-Stage Membrane Drying System, 3 stage systems includes: 234406, 234397 and 118560

234418

Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

  • Membrane eliminates the cost and maintenance of desiccant systems
  • Ensures equipment is supplied with clean, dry air
  • Multi-stage filter removes particles down to 0.01 micron
  • Membrane removes moisture from air
  • Includes shut-off valve and pressure regulator
  • Filter indicator signals replacement to ensure optimal efficiency

Specifications

Technical Specifications

Convert to Metric
Air Inlet Size (in) 1/2
Air Inlet Thread Gender Female
Air Inlet Thread Type NPT
Air Outlet Gender Female
Air Outlet Size (in) 1/2
Air Outlet Thread Type NPT
Includes Shut-Off Valve, Air Filter with Auto Drain, Coalescer with Auto Drain, Membrane Air Dryer, Air Regulator
Material Removed Contaminants, Oil, Particles, Water
Maximum Operating Temperature (°F) 150
Maximum Working Pressure (MPa) 1.1
Maximum Working Pressure (psi) 160
Type Membrane Drying System
Air Inlet Size (cm) 1.27
Air Inlet Size (mm) 12.7
Air Inlet Thread Gender Female
Air Inlet Thread Type NPT
Air Outlet Gender Female
Air Outlet Size (cm) 1.27
Air Outlet Size (mm) 12.7
Air Outlet Thread Type NPT
Includes Shut-Off Valve, Air Filter with Auto Drain, Coalescer with Auto Drain, Membrane Air Dryer, Air Regulator
Material Removed Contaminants, Oil, Particles, Water
Maximum Operating Temperature (°C) 65
Maximum Working Pressure (MPa) 1.1
Maximum Working Pressure (bar) 11
Maximum Working Pressure (kPa) 1100
Type Membrane Drying System
