5 Gallon (18 L) Heavy Duty Pressure Tank Agitator, air driven, 1/2 HP, 15 inches (38 cm) in length, gear reduced

Part Number: 236661

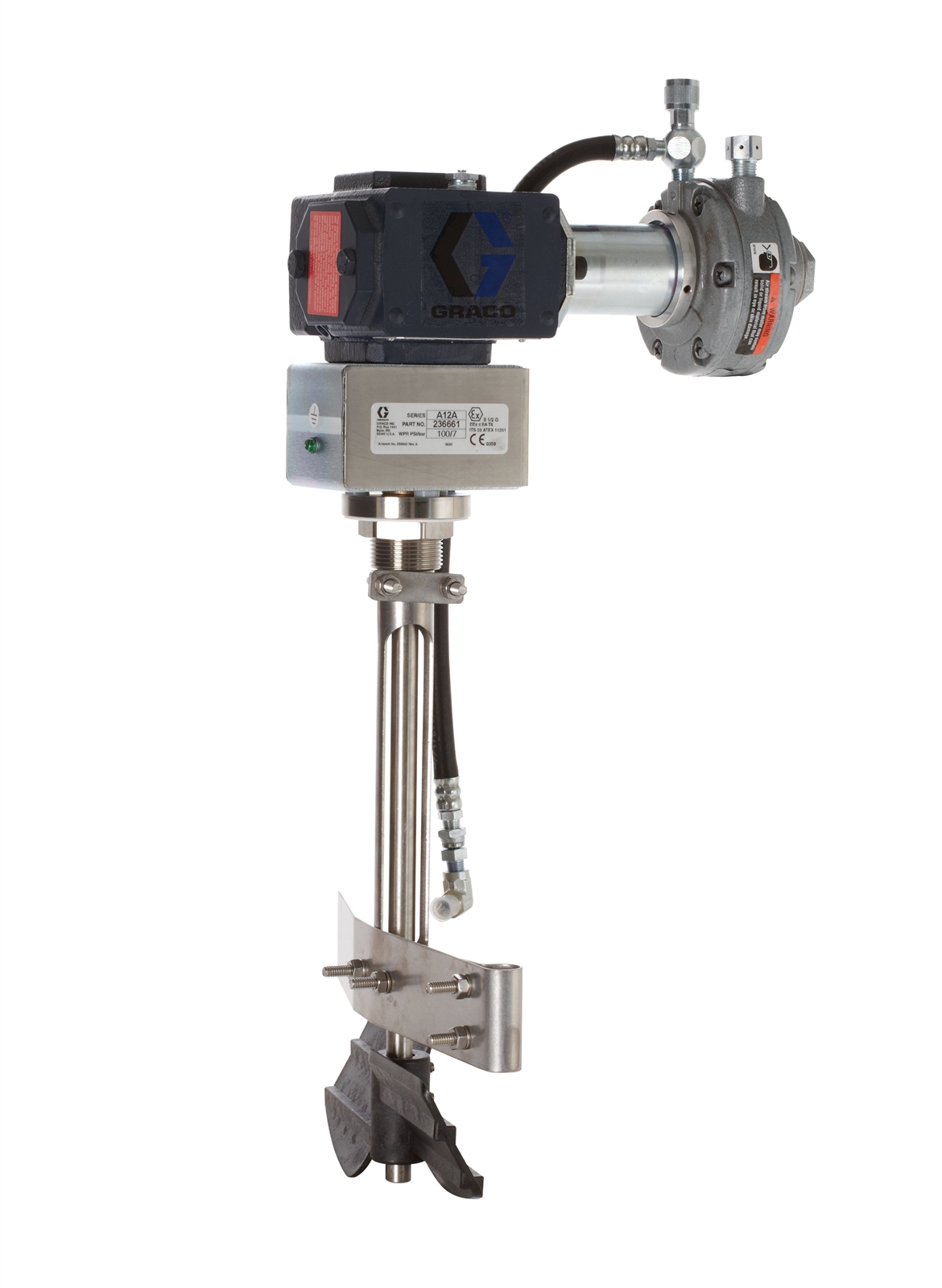

Image is for illustrative purposes only.

5 Gallon (18 L) Heavy Duty Pressure Tank Agitator, air driven, 1/2 HP, 15 inches (38 cm) in length, gear reduced

Part Number: 236661

Waterborne compatible
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
Waterborne compatible
  • 20:1 gear reduction to mix high viscosity materials, even at low speeds
  • Sealed agitator shaft to prevent air leakage and contamination
  • Built-in baffle and support for efficient mixing
  • Compatible with Graco pressure tanks

Specifications & Documents

Technical Specifications

Convert to Metric
For Use With 5 Gallon (19 Litre) Pressure Tank
Maximum Air Inlet Pressure (psi) 100
Maximum Speed (RPM) 3000
Maximum Viscosity (cP) 800
Maximum Working Pressure (psi) 100
Motor Type Pneumatic - Rotary Vane
Power Rating (HP) 0.50
Type Agitator
Weight (lb) 21
Wetted Material Stainless Steel, PTFE, Zytel, Bronze
For Use With 5 Gallon (19 Litre) Pressure Tank
Maximum Air Inlet Pressure (bar) 7
Maximum Air Inlet Pressure (kPa) 700
Maximum Speed (RPM) 3000
Maximum Viscosity (cP) 800
Maximum Working Pressure (bar) 7
Maximum Working Pressure (kPa) 700
Motor Type Pneumatic - Rotary Vane
Power Rating (HP) 0.50
Type Agitator
Weight (kg) 9.5
Wetted Material Stainless Steel, PTFE, Zytel, Bronze
