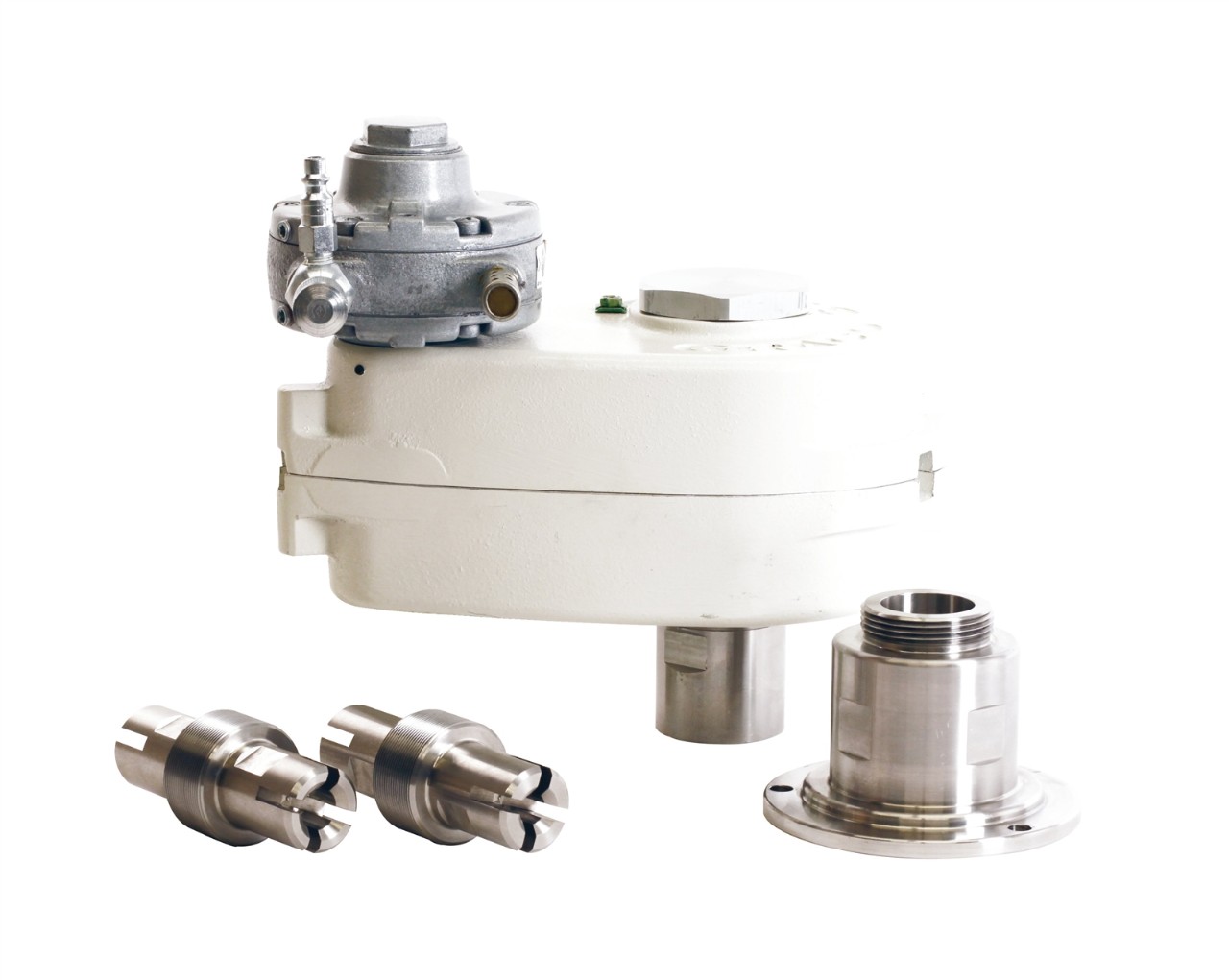

Heavy-Duty In-Drum Back-Geared Agitator, Stainless Steel, 2 inch Bung Adapter, 7/16 inch Shaft Adapter
Part Number: 24C522
Image is for illustrative purposes only.
Heavy-Duty In-Drum Back-Geared Agitator, Stainless Steel, 2 inch Bung Adapter, 7/16 inch Shaft Adapter
Part Number: 24C522
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
- Corrosion resistant materials for high quality and long life
- Leak-free gearbox eliminates material contamination common with oil filled units
- Installs easily onto in-drum agitators
- Mounts directly to drum bung, 2 inch Model
- Includes 7/16 in shaft adapter
- ATEX approval for hazardous locations
Specifications & Documents
Technical Specifications
Convert to Metric| Air Inlet Size (in) | 1/4 |
|---|---|
| Air Inlet Thread Type | NPT |
| Construction | Stainless Steel, Acetal, AF, Nylon, PTFE |
| For Use With | 55 Gallon (208 Liter) Drum |
| Includes | Heavy Duty Agitator Drive, 2 Adapters |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Speed (RPM) | 1200 |
| Maximum Viscosity (cP) | 3000 |
| Maximum Working Pressure (psi) | 100 |
| Motor Type | Pneumatic - Rotary Vane |
| Power Rating (HP) | 0.25 |
| Type | Agitator |
| Weight (lb) | 25.8 |
| Air Inlet Size (cm) | 0.635 |
| Air Inlet Size (in) | 1/4 |
| Air Inlet Size (mm) | 6.35 |
| Air Inlet Thread Type | NPT |
| Construction | Stainless Steel, Acetal, AF, Nylon, PTFE |
| For Use With | 55 Gallon (208 Liter) Drum |
| Includes | Heavy Duty Agitator Drive, 2 Adapters |
| Maximum Air Inlet Pressure (bar) | 7 |
| Maximum Air Inlet Pressure (kPa) | 700 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Speed (RPM) | 1200 |
| Maximum Viscosity (cP) | 3000 |
| Maximum Working Pressure (bar) | 7 |
| Maximum Working Pressure (kPa) | 700 |
| Maximum Working Pressure (psi) | 100 |
| Motor Type | Pneumatic - Rotary Vane |
| Type | Agitator |
| Weight (kg) | 11.7 |
