SaniForce

6:1 Ratio SaniForce Stubby RAM Priming Piston Pump

Part Number: 24G739

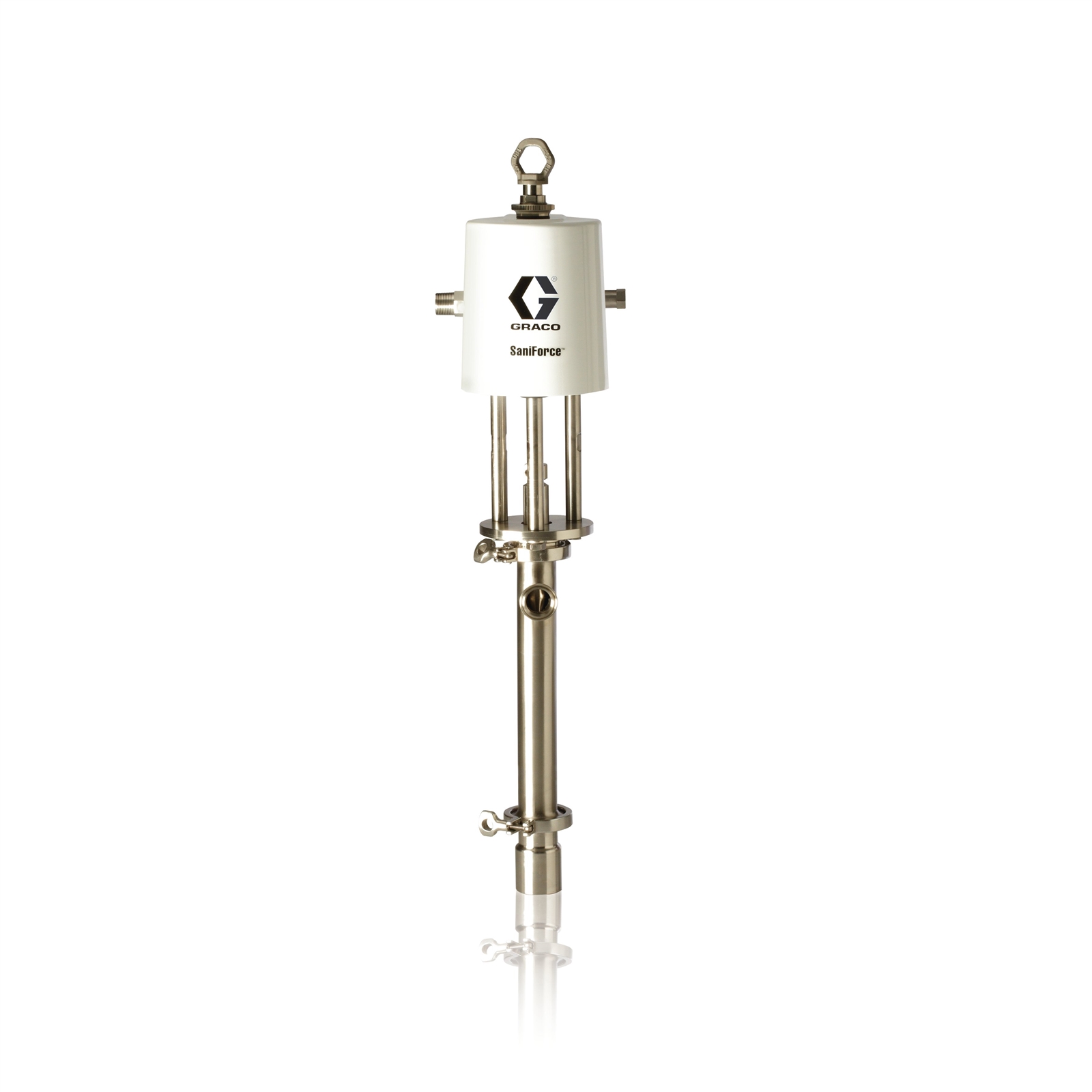

product image

SaniForce

6:1 Ratio SaniForce Stubby RAM Priming Piston Pump

Part Number: 24G739

Graco's SaniForce 6:1 quick knockdown piston pumps are constructed of 300 series stainless steel. The air motor improves serviceability, increases efficiency and offers a lower cost of ownership. Our sanitary piston pumps are ideal for most food-related, cosmetic and personal care applications.

Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure

Graco's SaniForce 6:1 quick knockdown piston pumps are constructed of 300 series stainless steel. The air motor improves serviceability, increases efficiency and offers a lower cost of ownership. Our sanitary piston pumps are ideal for most food-related, cosmetic and personal care applications.

Quick Knockdown Sanitary Piston Pumps for Food and Personal Care Applications

  • Most advanced air motor on the market
  • Available in double-ball and priming piston designs
  • Fluid transfer and supply of low to medium viscosity fluids
  • Suitable to pump products such as: cosmetics, fruit juice concentrates, creamy candy fillings, ice cream variegates, jams and jellies
  • FDA-Compliant Shroud:

    • Easily removable FDA-compliant shroud to clean and access modular air valve - reducing downtime
    • Quick knockdown lowers are made with 300 series stainless steel for long-lasting durability

Specifications & Documents

Technical Specifications

Convert to Metric
Air Inlet Thread Gender Female
Air Inlet Thread Type NPSM
Application Sanitary
Compatible Material Food, Personal Care
Construction Stainless Steel, Buna-N, Polychloroprene, Nitrile Rubber, Nylon, UHMWPE
Fluid Outlet Size (in) 1-1/2
For Use With Food, Personal Care, & Pharmaceutical
Material Stainless Steel
Maximum Air Consumption (SCFM) 29
Maximum Air Inlet Pressure (psi) 100
Maximum Continuous Cycle Rate (CPM) 60
Maximum Flow Rate (GPM) 4
Maximum Intermittent Cycle Rate (CPM) 60
Maximum Working Pressure (MPa) 4.5
Maximum Working Pressure (psi) 650
Model SaniForce
Portable Non-Portable
Pump Ratio 6:1
Seal Material Buna, Nylon, Nitrile, CR
Standards Met FDA Compliant Materials, CE
Type Pneumatic Piston Pump
Air Inlet Thread Gender Female
Air Inlet Thread Type NPSM
Application Sanitary
Compatible Material Food, Personal Care
Construction Stainless Steel, Buna-N, Polychloroprene, Nitrile Rubber, Nylon, UHMWPE
Fluid Outlet Size (cm) 3.81
Fluid Outlet Size (in) 1-1/2
Fluid Outlet Size (mm) 38.1
For Use With Food, Personal Care, & Pharmaceutical
Material Stainless Steel
Maximum Air Inlet Pressure (bar) 6.9
Maximum Air Inlet Pressure (kPa) 690
Maximum Air Inlet Pressure (psi) 100
Maximum Continuous Cycle Rate (CPM) 60
Maximum Flow Rate (L/min) 15.14
Maximum Intermittent Cycle Rate (CPM) 60
Maximum Working Pressure (MPa) 4.5
Maximum Working Pressure (bar) 44.8
Maximum Working Pressure (kPa) 4480
Maximum Working Pressure (psi) 650
Model SaniForce
Portable Non-Portable
Pump Ratio 6:1
Seal Material Buna, Nylon, Nitrile, CR
Standards Met FDA Compliant Materials, CE
Type Pneumatic Piston Pump
