LD

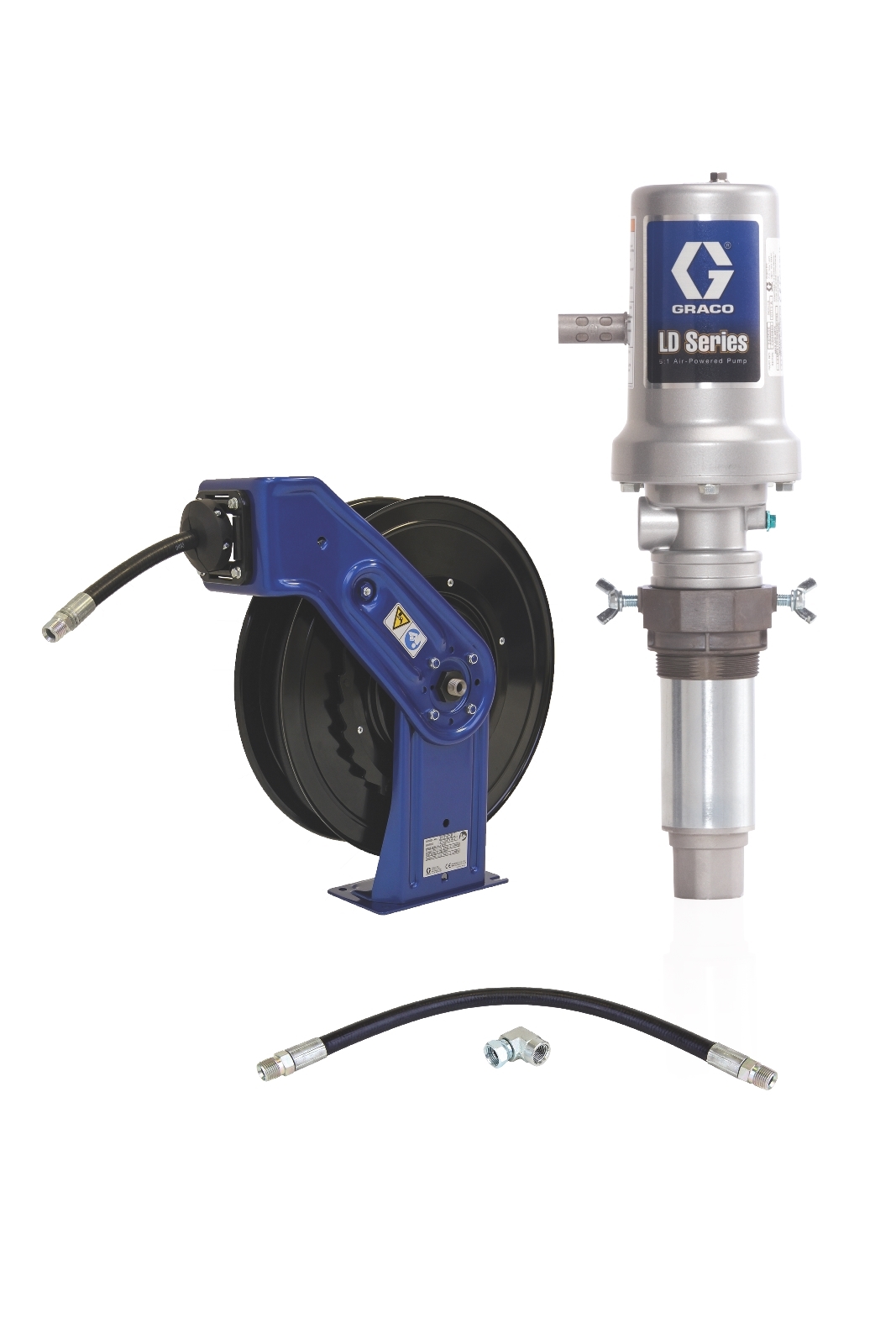

LD Series 5:1 Tank Mount Oil Pump with SD™ Series Hose Reel Packages - Manual Meter Type

24J735

24J735_LD_5_1_Tank_Package 24J735_LD_5_1_Tank_Package_no_meter

LD

LD Series 5:1 Tank Mount Oil Pump with SD™ Series Hose Reel Packages - Manual Meter Type

24J735

Stay ahead of the competition with LD Series pumps. These affordable and full-featured pumps are designed for lower-volume applications. LD pumps are fine-tuned for a compact, flexible and durable solution.

Questions About this Product?

If you're not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure

Stay ahead of the competition with LD Series pumps. These affordable and full-featured pumps are designed for lower-volume applications. LD pumps are fine-tuned for a compact, flexible and durable solution.

  • Three Inch Air Motor -Provides more power to create better flow.

  • Engineered for Durability -Patented cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution.

  • Extended Seal Life -In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.

  • Pilot Valves -Patented self-cleaning design increases reliability in dirty air environments and minimizes pressure drop with rapid changeovers for reduced stalling and smoother flow.

  • Built-In Thermal Relief and Inlet Strainer -Built-in thermal relief protects your equipment from thermal expansion, and an inlet strainer is built in to protect pump from contaminants.

Specifications

Technical Specifications

Convert to Metric
Air Inlet Size (in) 0.25
Application Oil
Compatible Material Oil
Fluid Inlet Size (in) 1
Fluid Outlet Size (in) 1/2
Maximum Flow Rate (GPM) 6.7
Maximum Working Pressure (MPa) 5.2
Maximum Working Pressure (psi) 750
Number of Pieces 4
Power Type Pneumatic
Pump Ratio 5:1
Type Piston Pump Package
Wetted Material Zinc-Plated Carbon Steel, Aluminum, Nitrile, Polyurethane, Nickel-Plated Aluminum
Application Oil
Compatible Material Oil
Fluid Inlet Size (cm) 2.5400
Fluid Inlet Size (mm) 25.4000
Fluid Outlet Size (cm) 1.27
Fluid Outlet Size (mm) 12.7
Maximum Working Pressure (MPa) 5.2
Maximum Working Pressure (bar) 52
Maximum Working Pressure (kPa) 5200
Number of Pieces 4
Power Type Pneumatic
Pump Ratio 5:1
Type Piston Pump Package
Wetted Material Zinc-Plated Carbon Steel, Aluminum, Nitrile, Polyurethane, Nickel-Plated Aluminum
