Trabon MSP

Trabon® MSP Stainless Steel Divider Valve - 3 Section Base Plate Assembly, NPSF

Part Number: 24N382

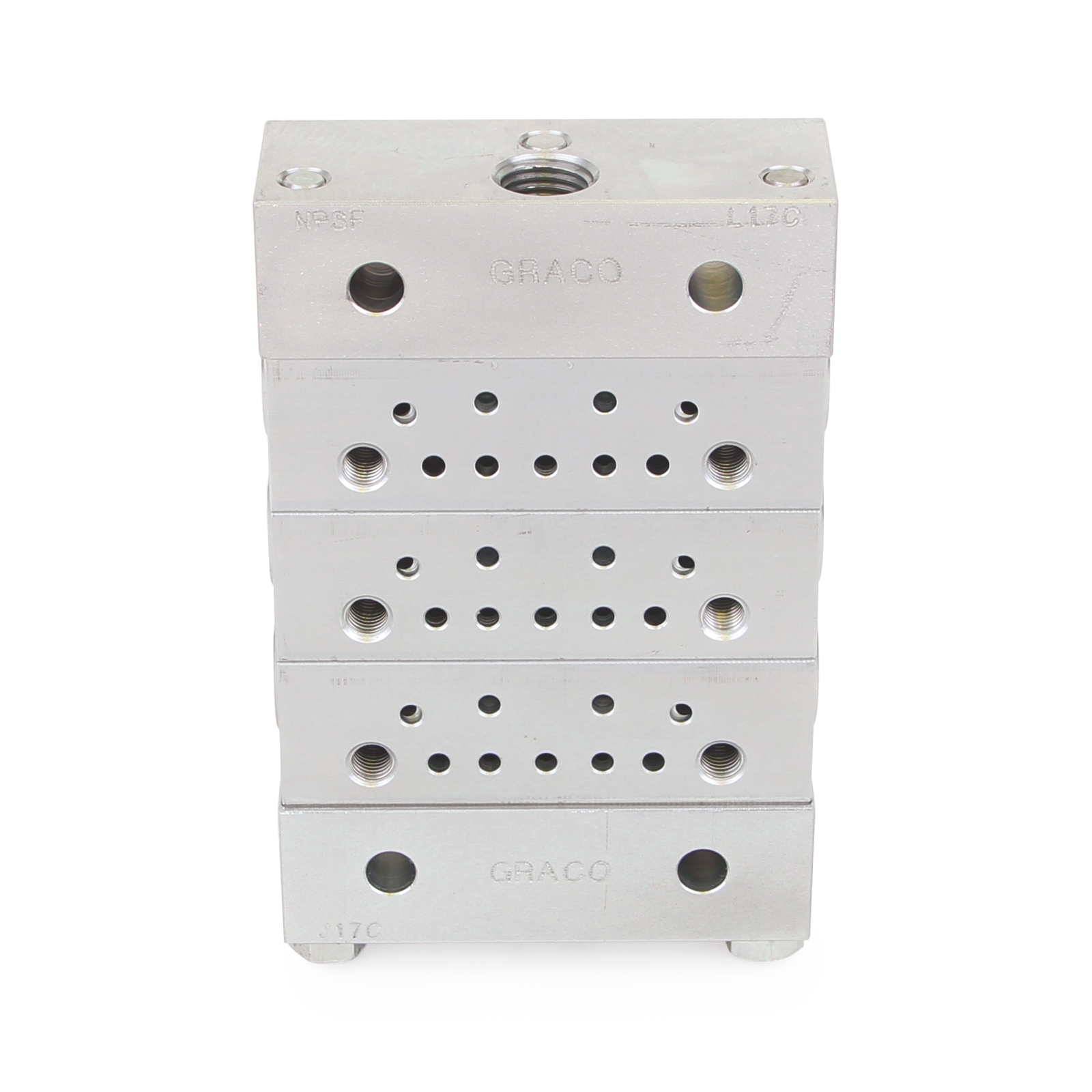

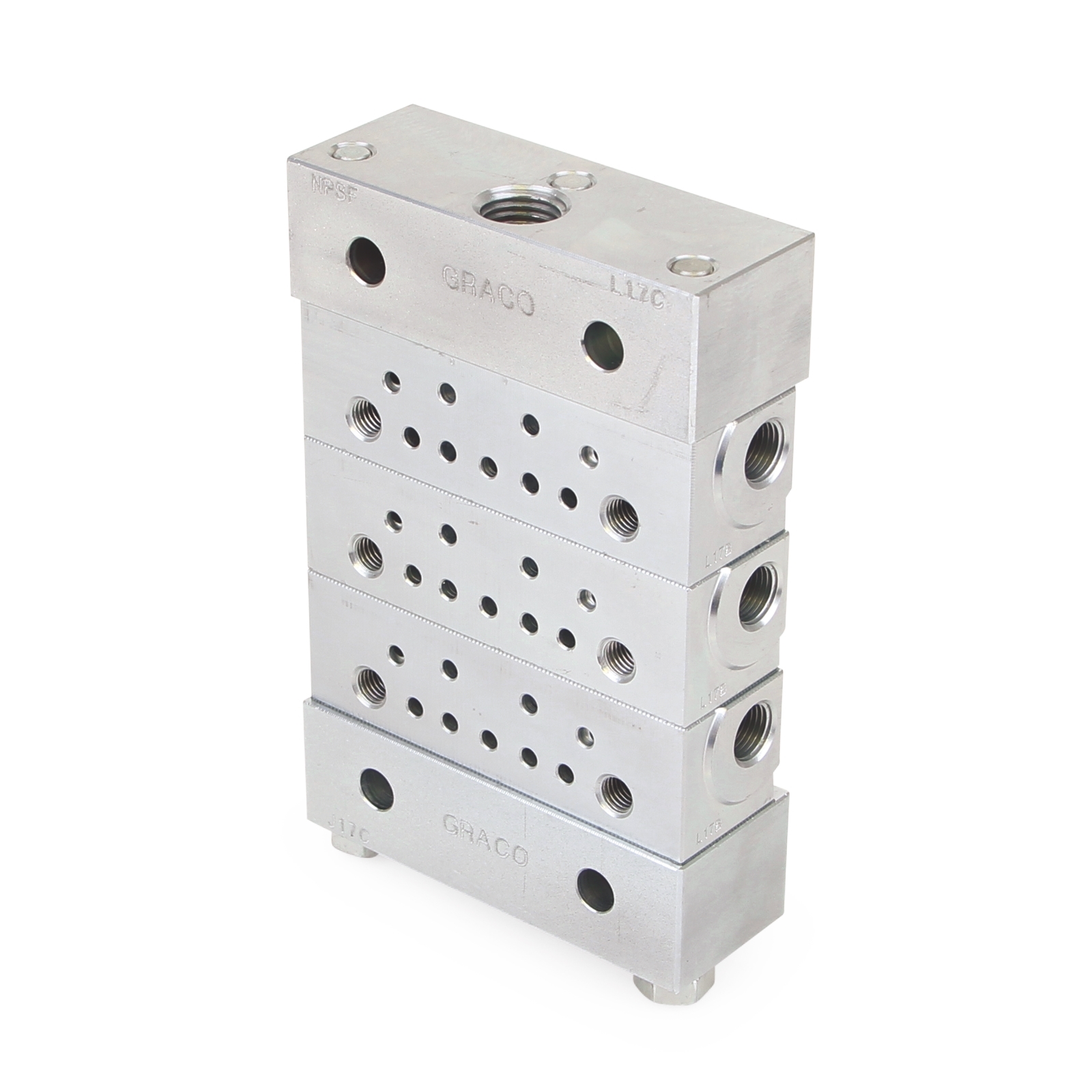

product image product image product image product image
Image is for illustrative purposes only.
Image is for illustrative purposes only.
Image is for illustrative purposes only.
Image is for illustrative purposes only.

Trabon MSP

Trabon® MSP Stainless Steel Divider Valve - 3 Section Base Plate Assembly, NPSF

Part Number: 24N382

Trabon® MSP Stainless Steel Series sets the industry standard for quality, reliability and ease of use features. It was the original modular-style series progressive divider valve – and is still the best! Get the same reliable valve in stainless steel.

Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure

Trabon® MSP Stainless Steel Series sets the industry standard for quality, reliability and ease of use features. It was the original modular-style series progressive divider valve – and is still the best! Get the same reliable valve in stainless steel.

For machine tools, textile, glass and can machinery, and mobile equipment

  • Face of valves can be fitted with optional performance indicators, taking the guesswork out of troubleshooting.
  • Can be easily accessorized with electronic proximity switches to provide positive assurance of a successful lube event.
  • Outlet checks ensure accurate lube delivery, every time.
  • Quick change valve sections can be removed from the base assembly without disturbing any lube lines–minimizing labor cost and maximizing your machine uptime.
  • Manufactured in our factory for quality and reliability. Each assembly is honed and match fitted for precise lube delivery every time.

Specifications & Documents

Technical Specifications

Convert to Metric
Application On-Road Vehicles, Off-Road Equipment, In-Plant Machinery
Compatible Material Oil, Grease
Cycle Indicator None
Discharge Per Piston Stroke (in³) N/A
Divider Valve Series MSP
Inlet Size (in) 1/4
Inlet Thread Gender Female
Inlet Thread Type NPSF
Material Stainless Steel
Maximum NLGI Grade #2
Maximum Operating Temperature (°F) 350
Maximum Working Pressure (psi) 3500
Model Trabon
Number of Outlets 6
Outlet Size (in) 1/8
Outlet Thread Gender Female
Outlet Thread Type NPSF
Series MSP
Type Divider Valve
Application On-Road Vehicles, Off-Road Equipment, In-Plant Machinery
Compatible Material Oil, Grease
Cycle Indicator None
Discharge Per Piston Stroke (in³) N/A
Divider Valve Series MSP
Inlet Size (in) 1/4
Inlet Thread Gender Female
Inlet Thread Type NPSF
Material Stainless Steel
Maximum NLGI Grade #2
Maximum Operating Temperature (°C) 176
Maximum Working Pressure (bar) 241
Maximum Working Pressure (kPa) 24100
Maximum Working Pressure (psi) 3500
Model Trabon
Number of Outlets 6
Outlet Size (cm) 0.3175
Outlet Size (in) 1/8
Outlet Size (mm) 3.175
Outlet Thread Gender Female
Outlet Thread Type NPSF
Series MSP
Type Divider Valve
