InvisiPac GS35 Plug-Free

GS35 Plug-Free™ Hot Melt Applicator with 2 Modules No Solenoid Pt 100 RTD (SA2A088)

Part Number: 24P247

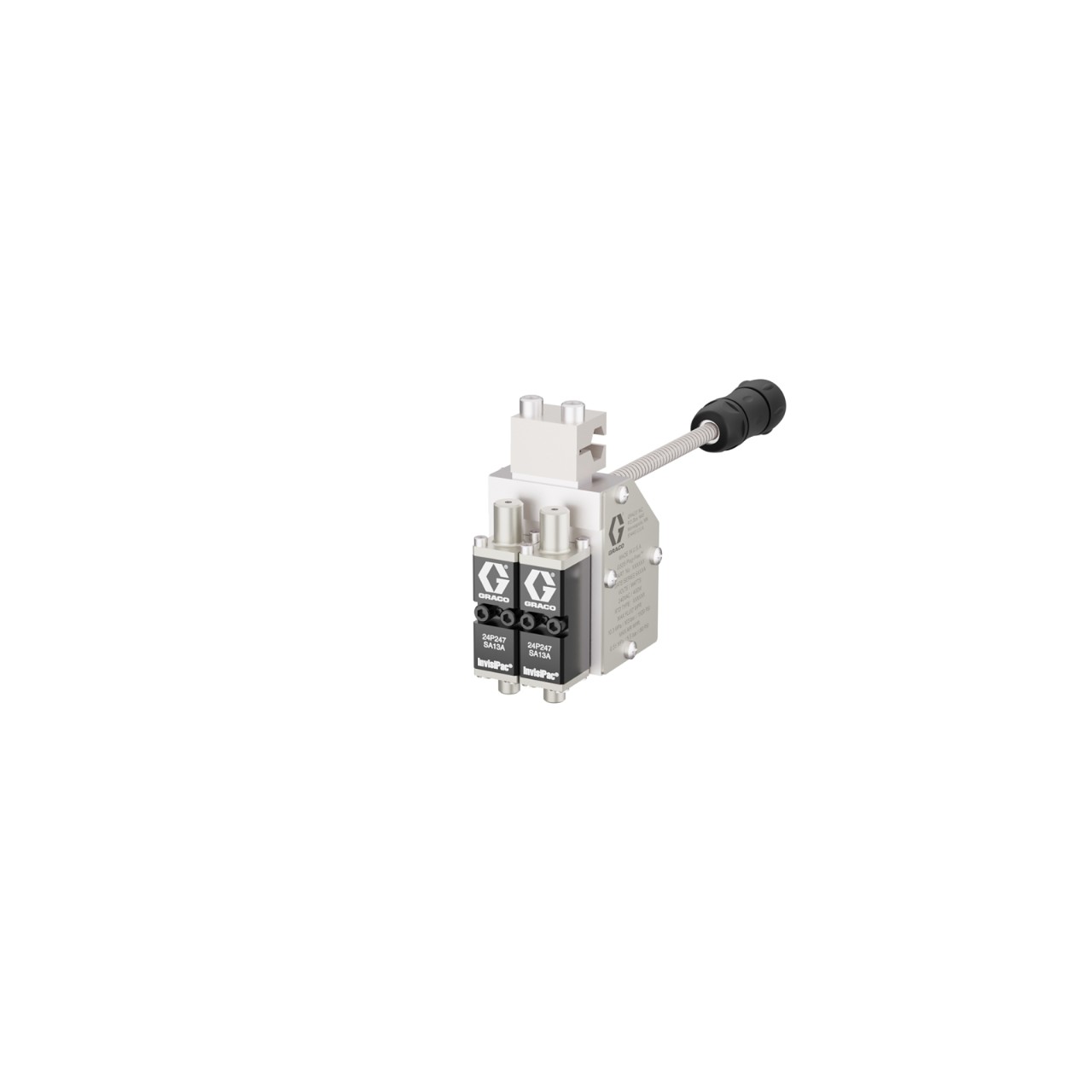

product image
Image is for illustrative purposes only.

InvisiPac GS35 Plug-Free

GS35 Plug-Free™ Hot Melt Applicator with 2 Modules No Solenoid Pt 100 RTD (SA2A088)

Part Number: 24P247

The InvisiPac Hot Melt Adhesive Applicators offer you a hassle-free operation with improved uptime. They have an innovative free-flow manifold design and integrated applicator filtering which eliminates nozzle plugs. And with a compact and custom design options, they can easily meet your application...

More Info
Product is Discontinued

Replacement Product Not Available


Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure

The InvisiPac Hot Melt Adhesive Applicators offer you a hassle-free operation with improved uptime. They have an innovative free-flow manifold design and integrated applicator filtering which eliminates nozzle plugs. And with a compact and custom design options, they can easily meet your application needs.

GS35 plug-free hot melt adhesive dispensing nozzle for case and carton sealing.

  • Free Flow Manifold

    • Reaches operating temperature in less than 10 minutes
    • Manifold filter is included in a heated zone, eliminating coldspots and ensuring consistent adhesive application
    • Manifold filter traps debris and char so it’s removed when you replace the filter
  • Free-Flow Path

    • Designed to eliminate dead zones where char will build up
  • Integrated Module Filter

    • Design protects ball and seat from debris and char
    • Eliminates nozzle plugging when used with InvisiPac System
  • GS35: Plug free applicator for constant bead applications

    • Features: Air open/spring close
    • Cycle time: 3500 cycles per minute
    • Single, dual, quad and custom designs available

Specifications & Documents

Technical Specifications

Convert to Metric
Ambient/Warm Melt/Hot Melt Hot Melt
Application Bonding, Sealing
For Use With InvisiPac GS35 Plug-Free
Gun Activation Automatic
Includes (2) Heaters
Maximum Air Pressure (MPa) 0.5
Maximum Air Pressure (psi) 80
Maximum Fluid Pressure (MPa) 10.3
Maximum Fluid Pressure (psi) 1500
Minimum Air Inlet Pressure (MPa) 0.3
Minimum Air Inlet Pressure (psi) 40
Model InvisiPac
Number of Modules 2
Series GS35 Plug-Free
Type Hot Melt Applicator
Wetted Parts Aluminum, Brass, Carbide, Carbon Steel, Stainless Steel
Ambient/Warm Melt/Hot Melt Hot Melt
Application Bonding, Sealing
For Use With InvisiPac GS35 Plug-Free
Gun Activation Automatic
Includes (2) Heaters
Maximum Air Pressure (MPa) 0.5
Maximum Air Pressure (bar) 5.5
Maximum Air Pressure (kPa) 550
Maximum Air Pressure (kg/cm²) 6
Maximum Air Pressure (psi) 80
Maximum Fluid Pressure (MPa) 10.3
Maximum Fluid Pressure (bar) 103
Maximum Fluid Pressure (kPa) 10300
Maximum Fluid Pressure (kg/cm²) 105
Maximum Fluid Pressure (psi) 1500
Minimum Air Inlet Pressure (MPa) 0.3
Minimum Air Inlet Pressure (bar) 2.7
Minimum Air Inlet Pressure (kPa) 270
Minimum Air Inlet Pressure (kg/cm²) 3
Minimum Air Inlet Pressure (psi) 40
Model InvisiPac
Number of Modules 2
Series GS35 Plug-Free
Type Hot Melt Applicator
Wetted Parts Aluminum, Brass, Carbide, Carbon Steel, Stainless Steel
