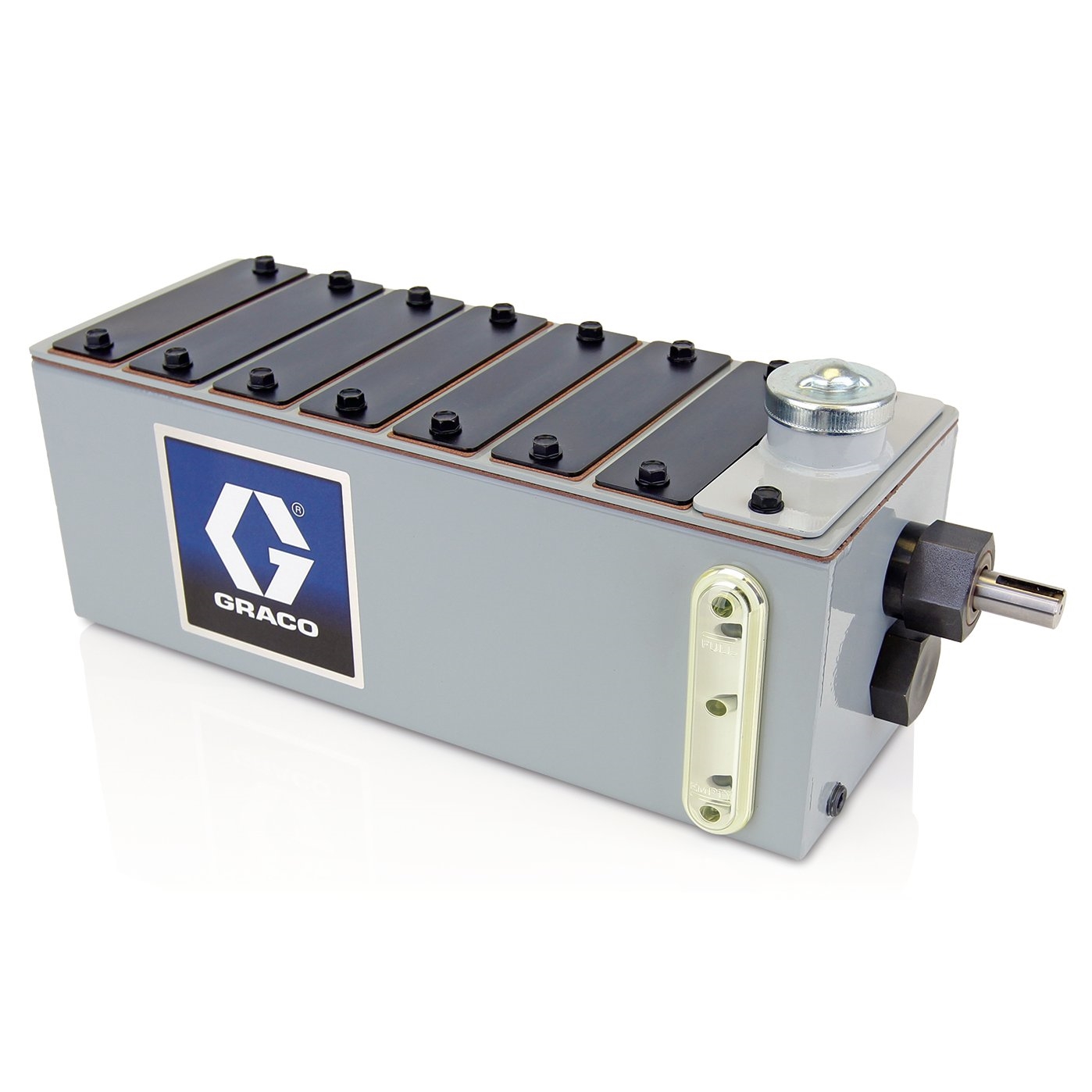

Manzel® MB118 Series Lubricator - 4 Pint (1.9 Liter) Reservoir (4 Pump Stations Max), No Pumps Installed, 118:1 drive on right hand end
Part Number: 24W633
Image is for illustrative purposes only.
Manzel MB
Manzel® MB118 Series Lubricator - 4 Pint (1.9 Liter) Reservoir (4 Pump Stations Max), No Pumps Installed, 118:1 drive on right hand end
Part Number: 24W633
Graco Manzel box lubricators – when quality and delivery matter! Made with Graco quality for long life and durability, the Manzel MB118 is the right size for triplex and quintuplex mud pump applications.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
Graco Manzel box lubricators – when quality and delivery matter! Made with Graco quality for long life and durability, the Manzel MB118 is the right size for triplex and quintuplex mud pump applications.
MB118 is the right size for triplex and quintuplex mud pump applications.
- Provide a proven, cost-effective way to assemble customized oil systems that meet specific requirements by using standard modular components
- Increase opportunities to standardize lube system components and reduce lube maintenance and service costs
- 4 pint (1.9 liter) reservoir (4 pump stations max), no pumps installed, 118:1 drive on RH end
- Complete the system with the easy to install GBL 7500 pump units of your choice
Specifications & Documents
Technical Specifications
Convert to Metric| Cam Type | Single Lobe |
|---|---|
| Compatible Material | Oil |
| Construction | Carbon Steel, Nylon, Fluoroelastomer, Cork, Brass, Aluminum |
| Drive Location | Right Hand Mount |
| Drive Option | Internal Gear Reduction |
| Lubricator Gear Ratio | 118:1 |
| Maximum Drive Speed (RPM) | 1800 |
| Maximum Fluid Viscosity (SUS) | 5000 |
| Maximum Number of Pump Stations | 4 |
| Maximum Number of Strokes (SPM) | 15 |
| Maximum Operating Temperature (°F) | 140 |
| Maximum Reservoir Capacity (gal) | 0.5 |
| Maximum Reservoir Capacity (pt) | 4 |
| Maximum Reservoir Capacity (qt) | 2 |
| Maximum Working Pressure (psi) | 7500 |
| Minimum Fluid Viscosity (SUS) | 80 |
| Minimum Operating Temperature (°F) | -20 |
| Model | Manzel |
| Number of Pumps | 0 |
| Overall Depth (in) | 14.25 |
| Overall Width (in) | 5.5 |
| Reservoir Material | Steel |
| Series | MB |
| Type | Box Lubricator |
| Cam Type | Single Lobe |
| Compatible Material | Oil |
| Construction | Carbon Steel, Nylon, Fluoroelastomer, Cork, Brass, Aluminum |
| Drive Location | Right Hand Mount |
| Drive Option | Internal Gear Reduction |
| Lubricator Gear Ratio | 118:1 |
| Maximum Drive Speed (RPM) | 1800 |
| Maximum Fluid Viscosity (SUS) | 5000 |
| Maximum Number of Pump Stations | 4 |
| Maximum Number of Strokes (SPM) | 15 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Reservoir Capacity (L) | 1.9 |
| Maximum Working Pressure (bar) | 517.1 |
| Maximum Working Pressure (kPa) | 51710 |
| Maximum Working Pressure (psi) | 7500 |
| Minimum Fluid Viscosity (SUS) | 80 |
| Minimum Operating Temperature (°C) | -29 |
| Model | Manzel |
| Number of Pumps | 0 |
| Overall Depth (cm) | 36.2 |
| Overall Depth (mm) | 362 |
| Overall Width (cm) | 13.97 |
| Overall Width (mm) | 139.7 |
| Reservoir Material | Steel |
| Series | MB |
| Type | Box Lubricator |
