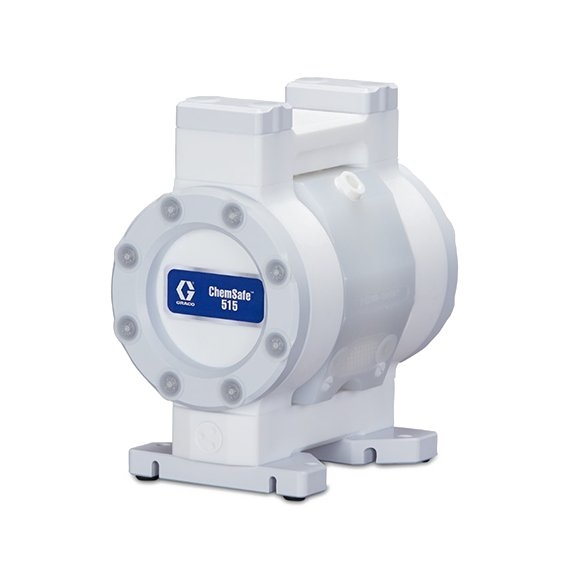

ChemSafe 515

ChemSafe 515 Air Operated Double Diaph. Plastic Pump with PTFE Seat, PTFE Ball, Overmolded PTFE Diaph., PTFE Fluid Path & BSPT Port

24X426

ChemSafe_515_PTFE_Poly

ChemSafe 515

ChemSafe 515 Air Operated Double Diaph. Plastic Pump with PTFE Seat, PTFE Ball, Overmolded PTFE Diaph., PTFE Fluid Path & BSPT Port

24X426

Graco's ChemSafe pumps feature PTFE or UHMWPE (ultra high molecular weight polyethylene) corrosion-resistant fluid paths, which make them ideal for corrosive and abrasive chemicals. There's no exposed metals and they can be configured in various materials to meet most abrasion, temperature, and chem...

More Info
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure

Graco's ChemSafe pumps feature PTFE or UHMWPE (ultra high molecular weight polyethylene) corrosion-resistant fluid paths, which make them ideal for corrosive and abrasive chemicals. There's no exposed metals and they can be configured in various materials to meet most abrasion, temperature, and chemical compatibility requirements. Plus they're dead-head capable and achieve high flow rates while minimizing air consumption and operational noise.

  • Max flow rate of 16.6 gpm (63 lpm)
  • High quality machined design provides a precision fit and superior chemical containment compared to molded pumps
  • Corrosion-resistant exterior with no exposed metal reduces maintenance, extends pump life and offers clean, safe operation
  • Removable air motor offers easy and intuitive maintenance ensuring maximum pump performance and availability
  • Ideal for corrosive and abrasive liquids such as acids, fuels, glues, paints, resins, inks, or wastewater

Specifications

Technical Specifications

Convert to Metric
Air Inlet Size (in) 1/4
Air Inlet Thread Gender Female
Air Inlet Thread Type BSPT
Application Industrial
Ball Material PTFE
Center Section Material Polypropylene
Compatible Material Antifreeze, Detergent, Gel-Coat, Asphalt, Polyurethane, Windshield Washer Fluid, Diesel Exhaust Fluid, Water - Wastewater Treatment, Water - Wastewater Transfer, Food and Personal Care, Ink
Connection Type Threaded
Diaphragm Material PTFE Overmold
Fluid Inlet Size (in) 1/2
Fluid Inlet Thread Gender Female
Fluid Inlet Thread Type BSP
Fluid Outlet Size (in) 1/2
Fluid Outlet Thread Gender Female
Fluid Outlet Thread Type BSP
Fluid Section Material PTFE
Manifold Configuration Center Port
Manifold O-Ring Material PTFE
Material PTFE
Maximum Air Consumption (SCFM) 29
Maximum Air Pressure (MPa) 0.7
Maximum Air Pressure (psi) 100
Maximum Cycle Rate (CPM) 381
Maximum Flow Rate (GPM) 16
Maximum Fluid Pressure (MPa) 0.7
Maximum Fluid Pressure (psi) 100
Maximum Operating Temperature (°F) 212
Maximum Solid Size (in) 0.16
Maximum Storage Temperature (°F) 80
Minimum Operating Temperature (°F) 32
Minimum Storage Temperature (°F) 60
Power Source Air
Seat Material PTFE
Standards Met CE
Type Pneumatic Diaphragm Pump
Air Inlet Thread Gender Female
Air Inlet Thread Type BSPT
Application Industrial
Ball Material PTFE
Center Section Material Polypropylene
Compatible Material Antifreeze, Detergent, Gel-Coat, Asphalt, Polyurethane, Windshield Washer Fluid, Diesel Exhaust Fluid, Water - Wastewater Treatment, Water - Wastewater Transfer, Food and Personal Care, Ink
Connection Type Threaded
Diaphragm Material PTFE Overmold
Fluid Inlet Size (cm) 1.27
Fluid Inlet Size (mm) 12.7
Fluid Inlet Thread Gender Female
Fluid Inlet Thread Type BSP
Fluid Outlet Size (cm) 1.27
Fluid Outlet Size (mm) 12.7
Fluid Outlet Thread Gender Female
Fluid Outlet Thread Type BSP
Fluid Section Material PTFE
Manifold Configuration Center Port
Manifold O-Ring Material PTFE
Material PTFE
Maximum Air Pressure (MPa) 0.7
Maximum Air Pressure (bar) 7
Maximum Air Pressure (kPa) 700
Maximum Cycle Rate (CPM) 381
Maximum Flow Rate (L/min) 60.6
Maximum Fluid Pressure (MPa) 0.7
Maximum Fluid Pressure (bar) 7
Maximum Fluid Pressure (kPa) 700
Maximum Operating Temperature (°C) 100
Maximum Solid Size (cm) 0.4
Maximum Solid Size (mm) 4
Maximum Storage Temperature (°C) 27
Minimum Operating Temperature (°C) 0
Minimum Storage Temperature (°C) 16
Power Source Air
Seat Material PTFE
Standards Met CE
Type Pneumatic Diaphragm Pump
