LubePro A900

LubePro™ A900 Single Stroke Oil Pump, 2.8 Liters - NPT

24X717

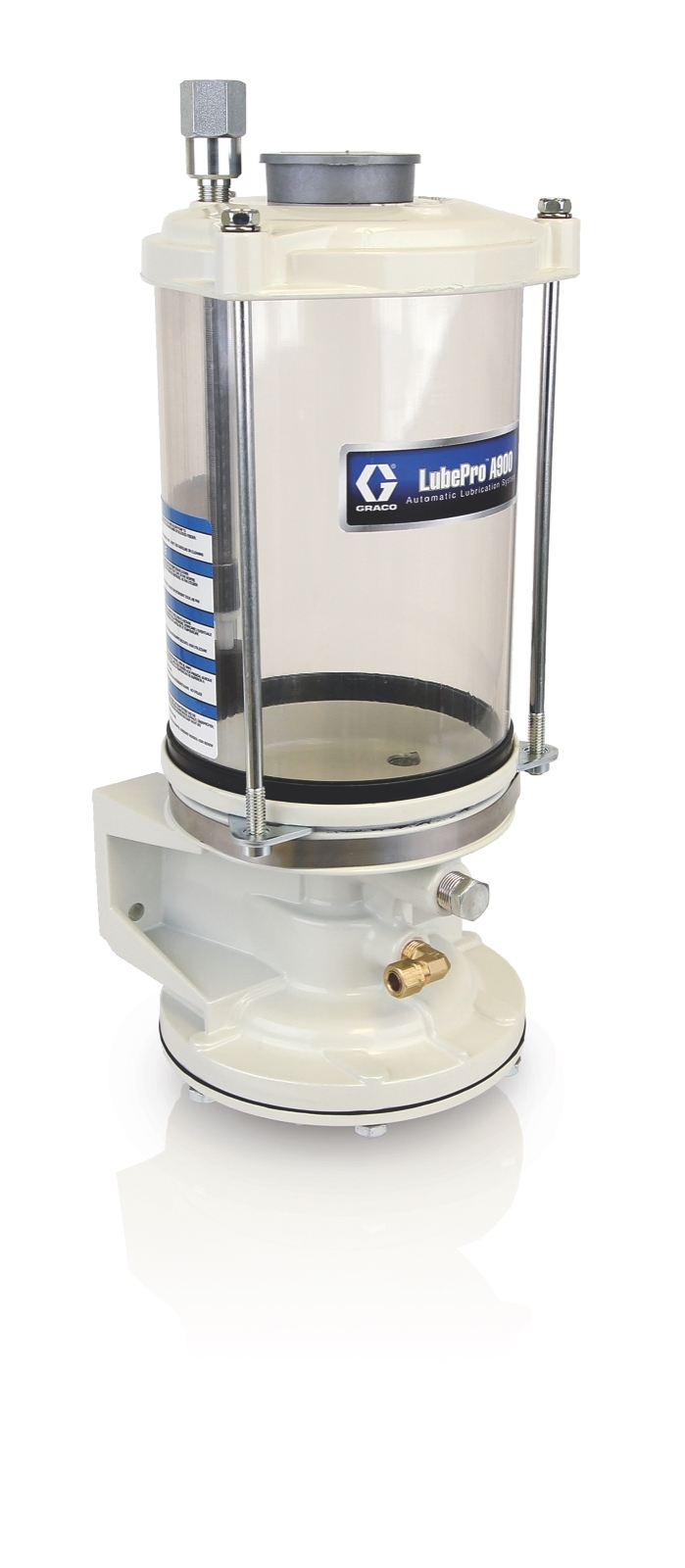

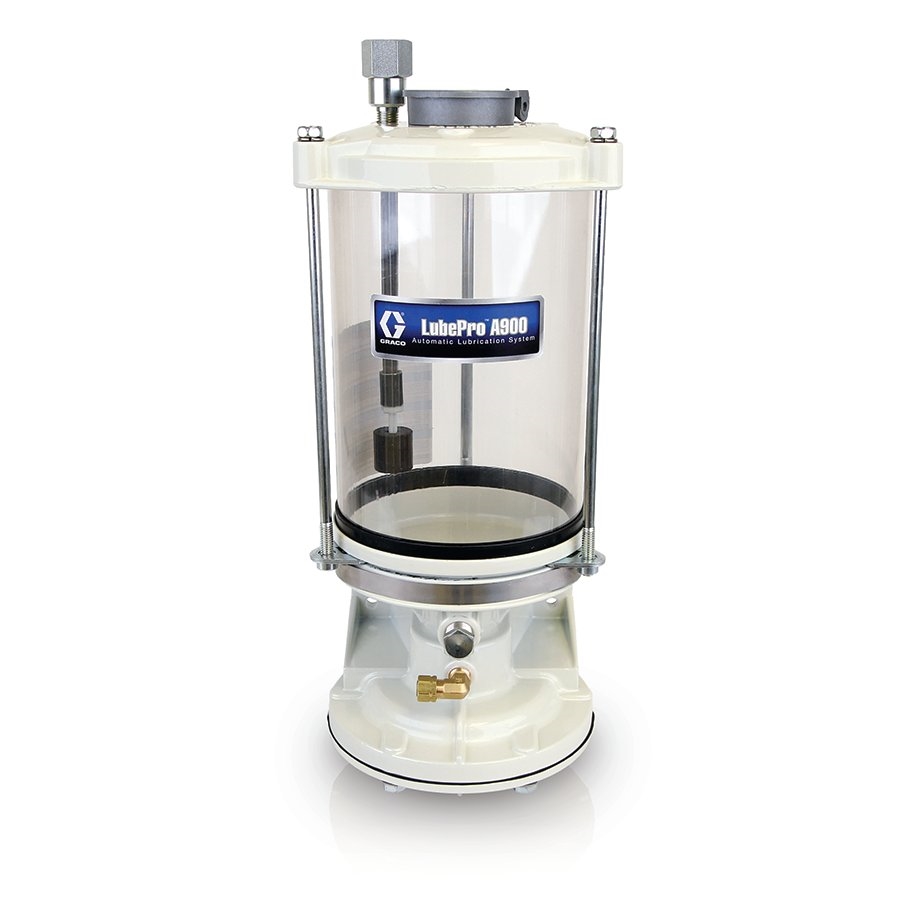

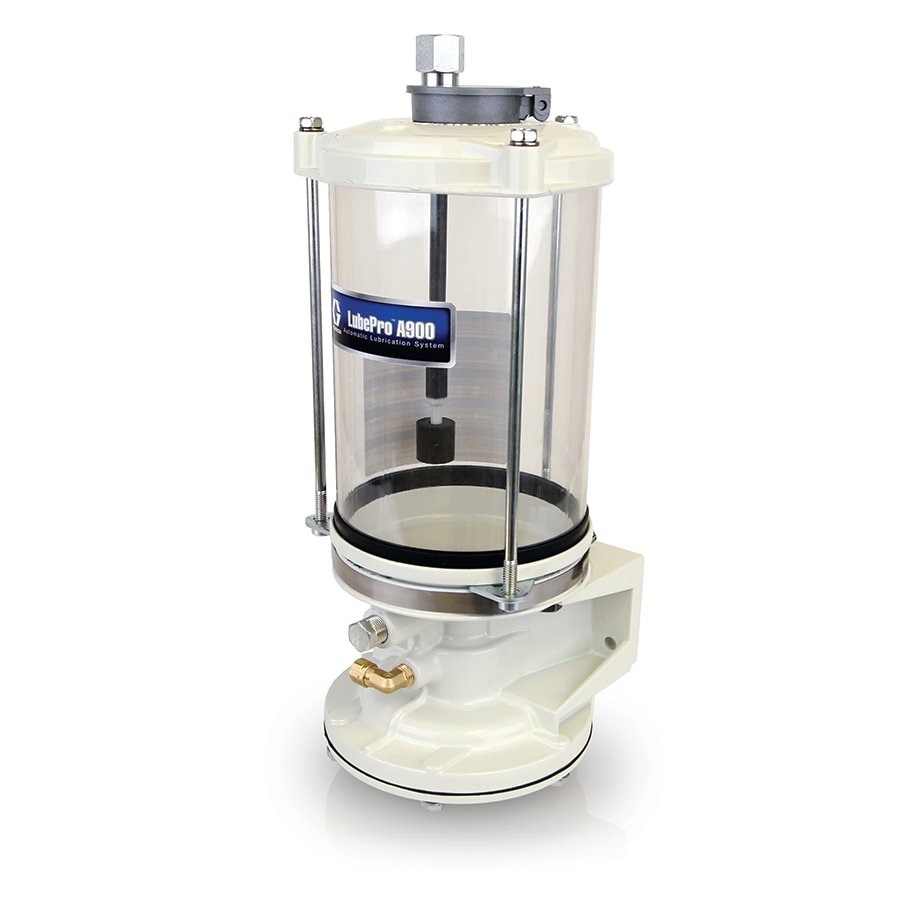

24X694_LubePro_900_FF 24X694_LubePro_900_LF 24X694_LubePro_900_RF

LubePro A900

LubePro™ A900 Single Stroke Oil Pump, 2.8 Liters - NPT

24X717

Without proper lubrication your factory's machines can suffer from downtime and reduced life, which impacts your company's bottom line. Avoid the hassle. Meet your LubePro. LubePro™ series leverages the same proven quality and leading technology as Graco's Fire-Ball® pump—the leader in durability an...

More Info
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure

Without proper lubrication your factory's machines can suffer from downtime and reduced life, which impacts your company's bottom line. Avoid the hassle. Meet your LubePro. LubePro™ series leverages the same proven quality and leading technology as Graco's Fire-Ball® pump—the leader in durability and quality for over 50 years. LubePro is the choice of today's lubrication professionals.

Single Stroke Oil Pump for Automatic Lubrication

  • LubePro A900 is compatible with GL-42 and GL-43 injectors
  • Pressure Ratio of 9:1
  • LubePro A900 delivers a greater output than competitive models at 1.5 cubic inches per stroke
  • Pneumatic power makes it easy to install into existing air line
  • Optional Low Level Detection available, factory installed
  • Integrated vent automatically relieves pressure on return stroke, no pressure switch or wiring required
  • High-strength, shatter resistant, 2.8 liter reservoir
  • Optimally lubricates while your machines are running
  • Provides accurate, reliable lubrication for every lube point
  • Provides higher lube output and faster lubrication cycle

Specifications

Technical Specifications

Convert to Metric
Air Inlet Size (in) 1/4
Air Inlet Thread Type NPSF
Compatible Material Oil
Compatible Metering Device Series Progressive, Single Line Parallel
Fluid Outlet Size (in) 0.25
Fluid Outlet Thread Type NPT
Maximum Air Inlet Pressure (psi) 150
Maximum Working Pressure (MPa) 9.3
Maximum Working Pressure (psi) 1350
Minimum cST Grade (cST) 40
Overall Depth (in) 8.45
Overall Height (in) 17.72
Overall Width (in) 6.9
Power Type Pneumatic
Reservoir Size (gal) 0.74
Type Pneumatic Piston Pump
Weight (lb) 9.17
Air Inlet Size (cm) 0.635
Air Inlet Size (mm) 6.35
Air Inlet Thread Type NPSF
Compatible Material Oil
Compatible Metering Device Series Progressive, Single Line Parallel
Fluid Outlet Size (cm) 0.6350
Fluid Outlet Size (mm) 6.3500
Fluid Outlet Thread Type NPT
Maximum Air Inlet Pressure (bar) 10.34
Maximum Air Inlet Pressure (kPa) 1034
Maximum Working Pressure (MPa) 9.3
Maximum Working Pressure (bar) 93
Maximum Working Pressure (kPa) 9300
Minimum cST Grade (cST) 40
Overall Depth (cm) 21.5
Overall Depth (mm) 215
Overall Height (cm) 45
Overall Height (mm) 450
Overall Width (cm) 17.5
Overall Width (mm) 175
Power Type Pneumatic
Reservoir Size (L) 2.8
Type Pneumatic Piston Pump
Weight (kg) 4.16
