RS

RS Internal Mix Chop Gun with Tip

Part Number: 258854

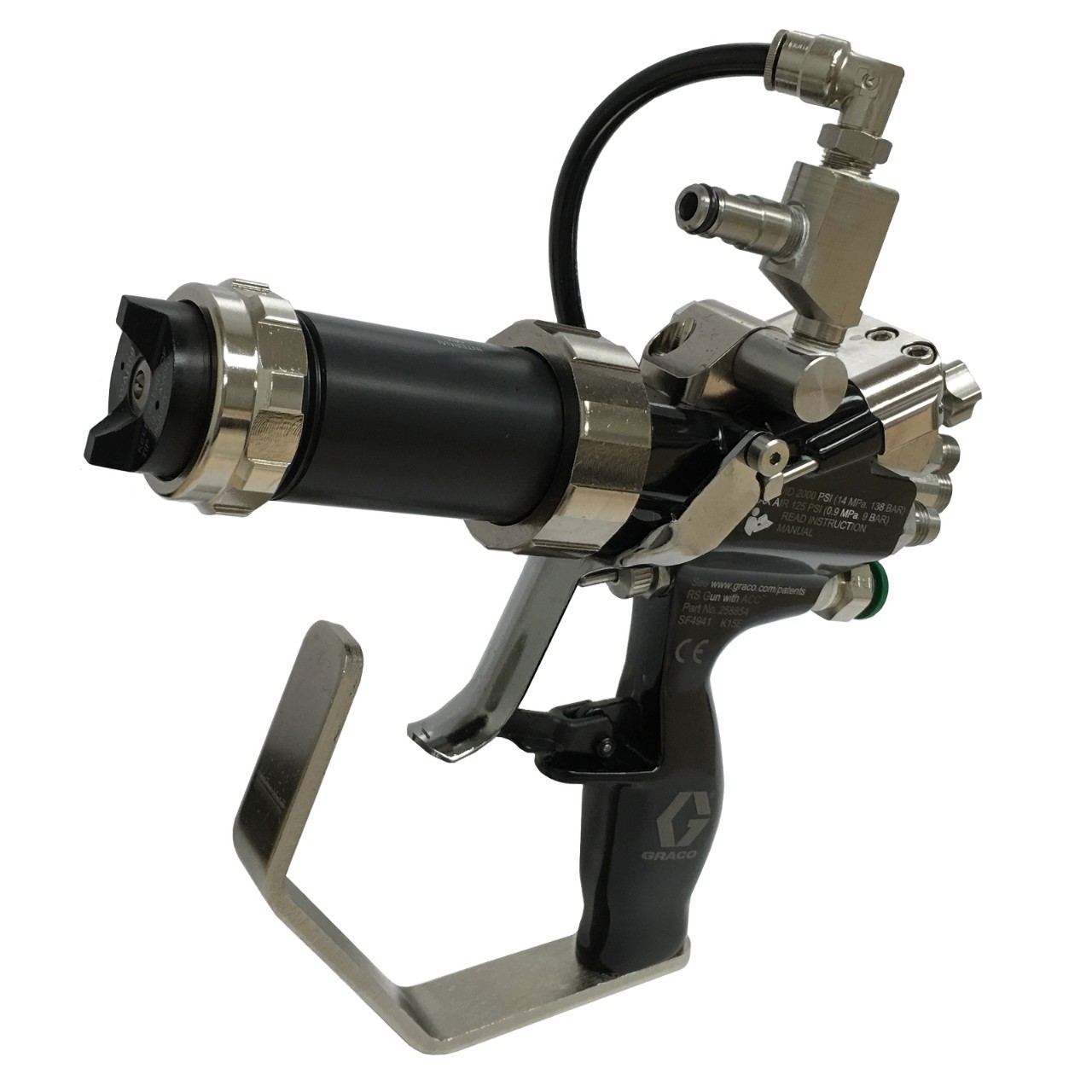

product image

RS

RS Internal Mix Chop Gun with Tip

Part Number: 258854

Innovations engineered into the Graco RS Gel Coat Gun are sure to make a difference in your production uptime. It's lightweight, ergonomic, designed for tool-less operation and fast, easy maintenance as well. It’s available in internal and external mixing gelcoat spray guns. Discover how the Graco R...

More Info
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure

Innovations engineered into the Graco RS Gel Coat Gun are sure to make a difference in your production uptime. It's lightweight, ergonomic, designed for tool-less operation and fast, easy maintenance as well. It’s available in internal and external mixing gelcoat spray guns. Discover how the Graco RS Resin Spray Gun’s revolutionary design and industry-first features can help boost your company’s bottom line.

  • Makes production easier

    • Simple, quick start up and shut down
    • Quick tool-less blade change
    • No need to adjust needle settings after maintenance
  • Improves product quality

    • Lightweight cutter gives better chopping control
    • Easy one-hand cutter speed control
    • Superior spray pattern
  • Improves operator comfort for increased job satisfaction

    • Lighter, ergonomic gun reduces fatigue
    • Lets you quickly adjust anvil tension to correct cut variations due to anvil and blade wear
    • No problems soaking the RS Gun in solvents overnight
  • Saves material costs

    • Air Assist Containment (AAC®) standard on all RS Guns
    • Lower pressure reduces overspray

Specifications & Documents

Technical Specifications

Convert to Metric
Chop Gun Type Without Cutter
Compatible Material Polyester Resin, Gel-Coat
For Use With FRP System
Gun Type Chop Gun
Gun Weight (lb) 2.46
Gun Weight (oz) 39.51
Includes CST443 Tip
Maximum Air Pressure (psi) 125
Maximum Fluid Pressure (psi) 2000
Maximum Fluid Temperature (°F) 100
Minimum Air Flow Rate (SCFM) 2.25
Minimum Air Inlet Pressure (psi) 0
Mix Type Internal Mix
Model RS
Type Chop Gun
Chop Gun Type Without Cutter
Compatible Material Polyester Resin, Gel-Coat
For Use With FRP System
Gun Type Chop Gun
Gun Weight (g) 1120
Gun Weight (kg) 1.12
Gun Weight (oz) 39.51
Includes CST443 Tip
Maximum Air Pressure (bar) 8.6
Maximum Air Pressure (kPa) 860
Maximum Air Pressure (kg/cm²) 9
Maximum Air Pressure (psi) 125
Maximum Fluid Pressure (bar) 138
Maximum Fluid Pressure (kPa) 13800
Maximum Fluid Pressure (kg/cm²) 141
Maximum Fluid Pressure (psi) 2000
Maximum Fluid Temperature (°C) 38
Minimum Air Inlet Pressure (bar) 0
Minimum Air Inlet Pressure (kPa) 0
Minimum Air Inlet Pressure (psi) 0
Mix Type Internal Mix
Model RS
Type Chop Gun
