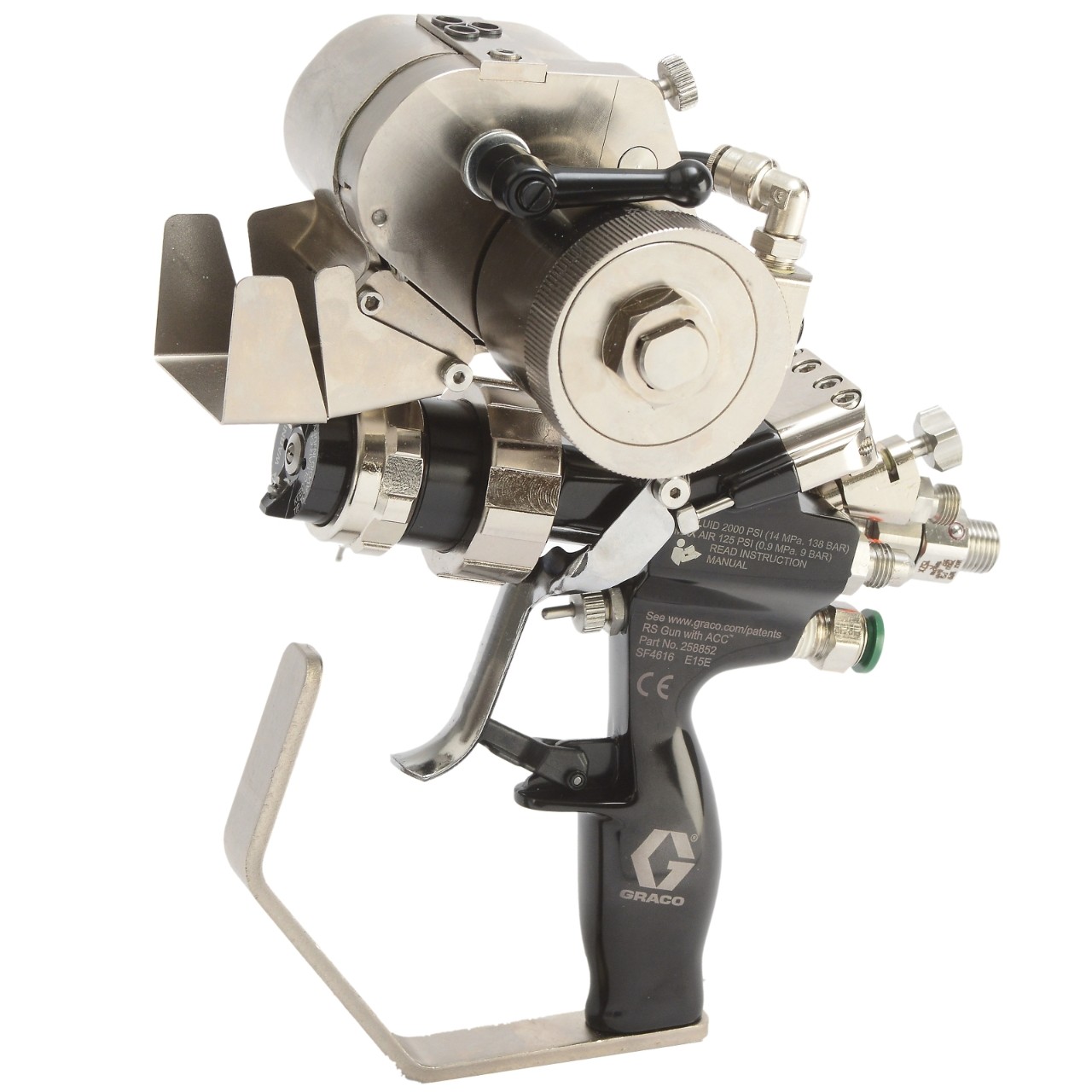

RS External Mix Chop Gun with Cutter and Tip
Part Number: 258970
RS
RS External Mix Chop Gun with Cutter and Tip
Part Number: 258970
Innovations engineered into the Graco RS Gel Coat Gun are sure to make a difference in your production uptime. It's lightweight, ergonomic, designed for tool-less operation and fast, easy maintenance as well. It’s available in internal and external mixing gelcoat spray guns. Discover how the Graco R...
More InfoIf you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
Innovations engineered into the Graco RS Gel Coat Gun are sure to make a difference in your production uptime. It's lightweight, ergonomic, designed for tool-less operation and fast, easy maintenance as well. It’s available in internal and external mixing gelcoat spray guns. Discover how the Graco RS Resin Spray Gun’s revolutionary design and industry-first features can help boost your company’s bottom line.
Makes production easier
- Simple, quick start up and shut down
- Quick tool-less blade change
- No need to adjust needle settings after maintenance
Improves product quality
- Lightweight cutter gives better chopping control
- Easy one-hand cutter speed control
- Superior spray pattern
Improves operator comfort for increased job satisfaction
- Lighter, ergonomic gun reduces fatigue
- Lets you quickly adjust anvil tension to correct cut variations due to anvil and blade wear
- No problems soaking the RS Gun in solvents overnight
Saves material costs
- Air Assist Containment (AAC®) standard on all RS Guns
- Lower pressure reduces overspray
Specifications & Documents
Technical Specifications
Convert to Metric| Chop Gun Type | With Cutter |
|---|---|
| Compatible Material | Polyester Resin, Gel-Coat |
| For Use With | FRP System |
| Gun Type | Chop Gun |
| Gun Weight (lb) | 2.33 |
| Gun Weight (oz) | 37.28 |
| Includes | CST443 Tip, Cutter |
| Maximum Air Pressure (psi) | 125 |
| Maximum Fluid Pressure (psi) | 2000 |
| Maximum Fluid Temperature (°F) | 100 |
| Minimum Air Inlet Pressure (psi) | 80 |
| Mix Type | External Mix |
| Model | RS |
| Trigger Lock | Locking |
| Type | Chop Gun |
| Chop Gun Type | With Cutter |
| Compatible Material | Polyester Resin, Gel-Coat |
| For Use With | FRP System |
| Gun Type | Chop Gun |
| Gun Weight (g) | 1057 |
| Gun Weight (kg) | 1.06 |
| Gun Weight (oz) | 37.28 |
| Includes | CST443 Tip, Cutter |
| Maximum Air Pressure (bar) | 8.6 |
| Maximum Air Pressure (kPa) | 860 |
| Maximum Air Pressure (kg/cm²) | 8.79 |
| Maximum Air Pressure (psi) | 125 |
| Maximum Fluid Pressure (bar) | 138 |
| Maximum Fluid Pressure (kPa) | 13800 |
| Maximum Fluid Pressure (kg/cm²) | 141 |
| Maximum Fluid Pressure (psi) | 2000 |
| Maximum Fluid Temperature (°C) | 38 |
| Minimum Air Inlet Pressure (bar) | 5.5 |
| Minimum Air Inlet Pressure (kPa) | 550 |
| Minimum Air Inlet Pressure (psi) | 80 |
| Mix Type | External Mix |
| Model | RS |
| Trigger Lock | Locking |
| Type | Chop Gun |
