LSR

Straight Thread Single Pass Mixing Stack Material check valve only

25A995

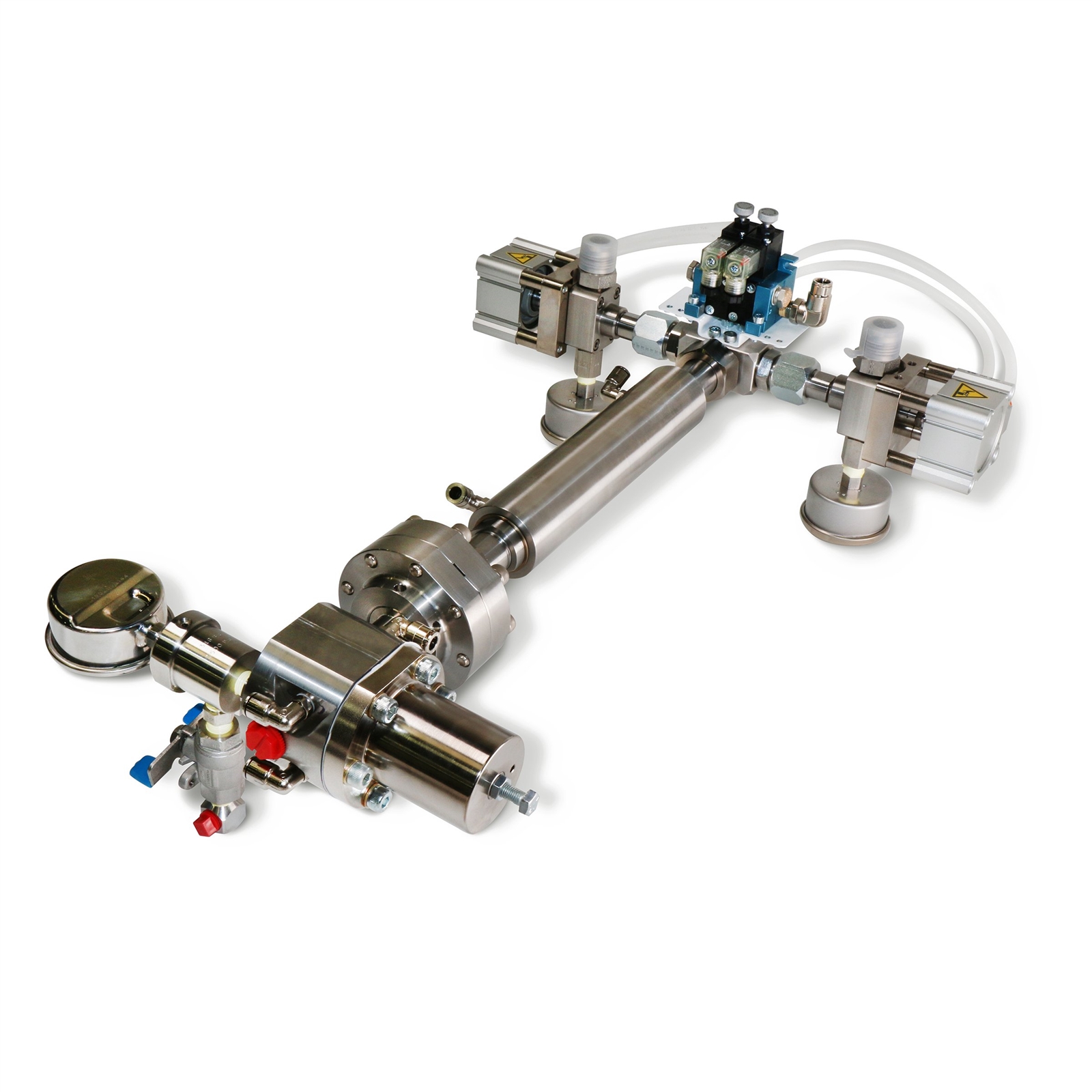

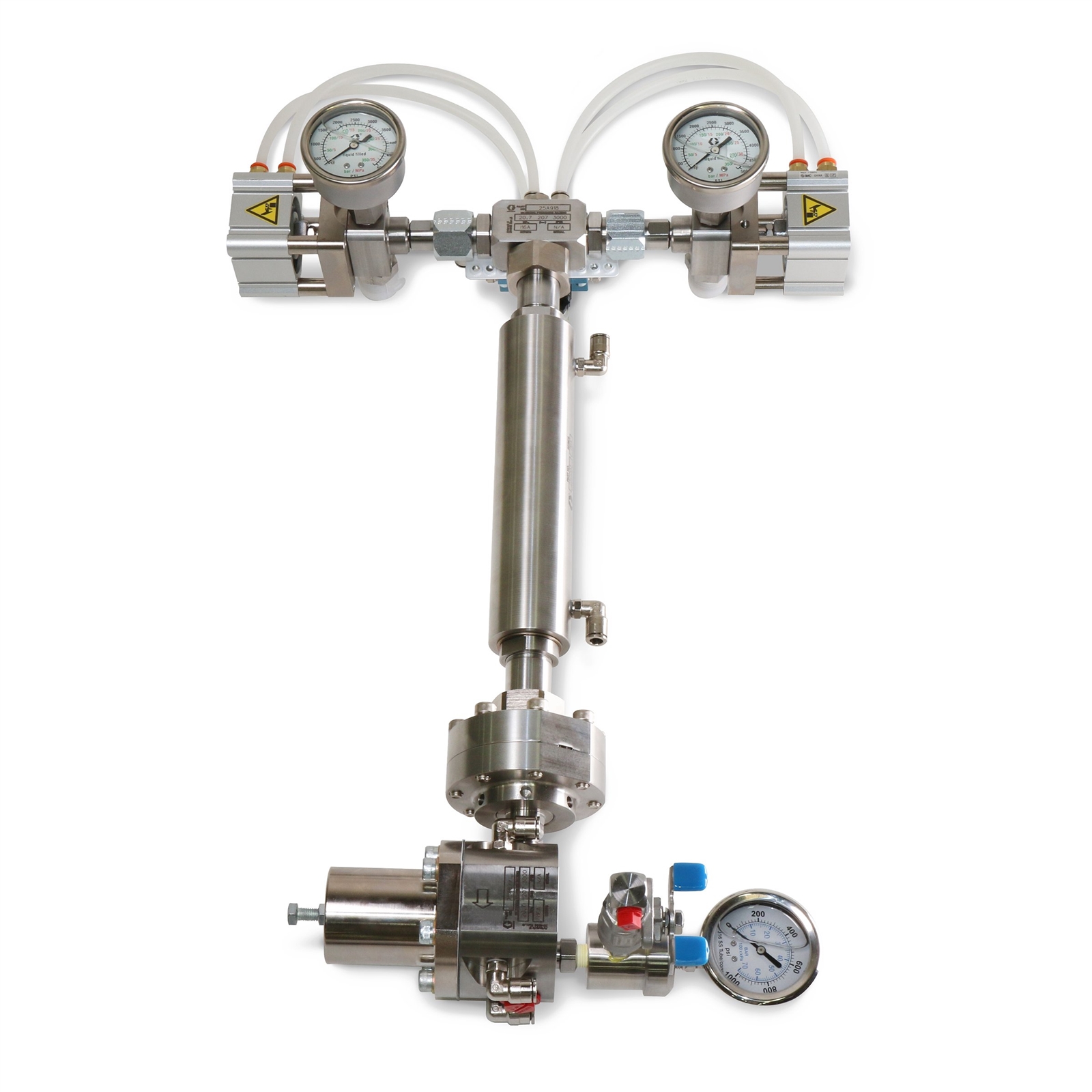

liquid-silicon-rubber-lsr-fluid-automation-single-pass-stack-straight liquid-silicon-rubber-lsr-fluid-automation-single-pass-stack-right

LSR

Straight Thread Single Pass Mixing Stack Material check valve only

25A995

Straight Thread Single-Pass Mixing Stack designed for Graco F-5 two-component LSR equipment.

Features

Product Brochure

Straight Thread Single-Pass Mixing Stack designed for Graco F-5 two-component LSR equipment.

Reduce downtime and increase production with mixing stacks.

  • Easier to clean + assemble

    No tapered national pipe thread (NPT) threads and regulator and mixer enhancements for greater clearance. Reduces cleaning time by 50 percent so you can spend more time producing parts.

  • Reduce pressure drops

    High-flow material passages on the regulator are 225% larger which reduces pressure drops through the barrel stack.

  • Reduced thread galling + easier reassembly

    Stackable plastic molded mixers with improved housing and mixer tolerances prevent common side-walling problems. Mixer life is increase by elimination breakage caused by repeated removal and installation. Plastic mixers can be cleaned or disposed and replaced.

Specifications

Technical Specifications

Convert to Metric
Air Line Tube Length (ft) 3
Air Line Tube Outside Diameter (in) 0.375
For Use With Fluid Automation F4 Series
Includes Manifold, mixer and regulator
Number of Color Injectors 0
Number of Pieces 12
Type Barrel Mixing Stack Kit
Air Line Tube Length (m) 0.915
Air Line Tube Outside Diameter (cm) 1
Air Line Tube Outside Diameter (mm) 10
For Use With Fluid Automation F4 Series
Includes Manifold, mixer and regulator
Number of Color Injectors 0
Number of Pieces 12
Type Barrel Mixing Stack Kit
