ToughTek P30HT

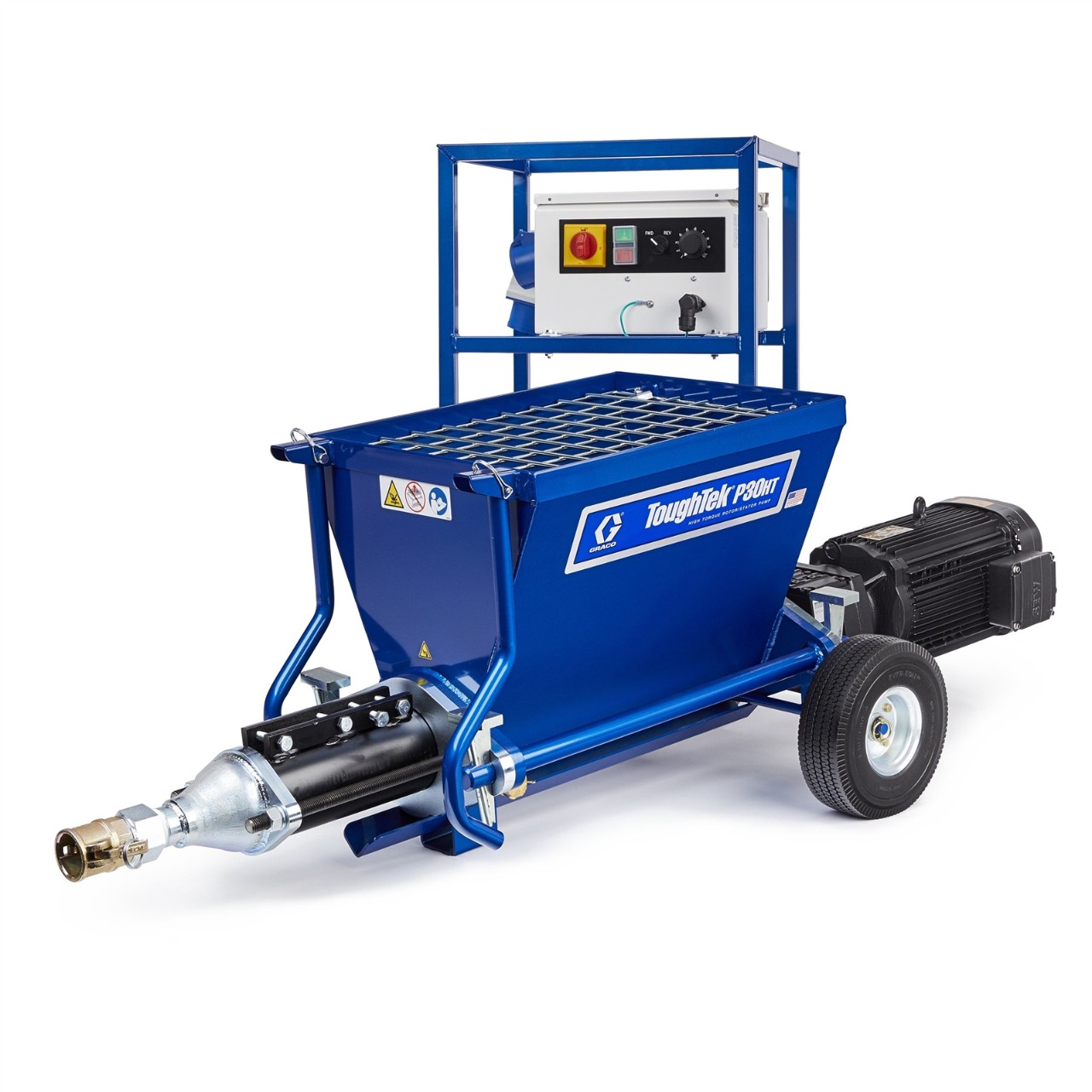

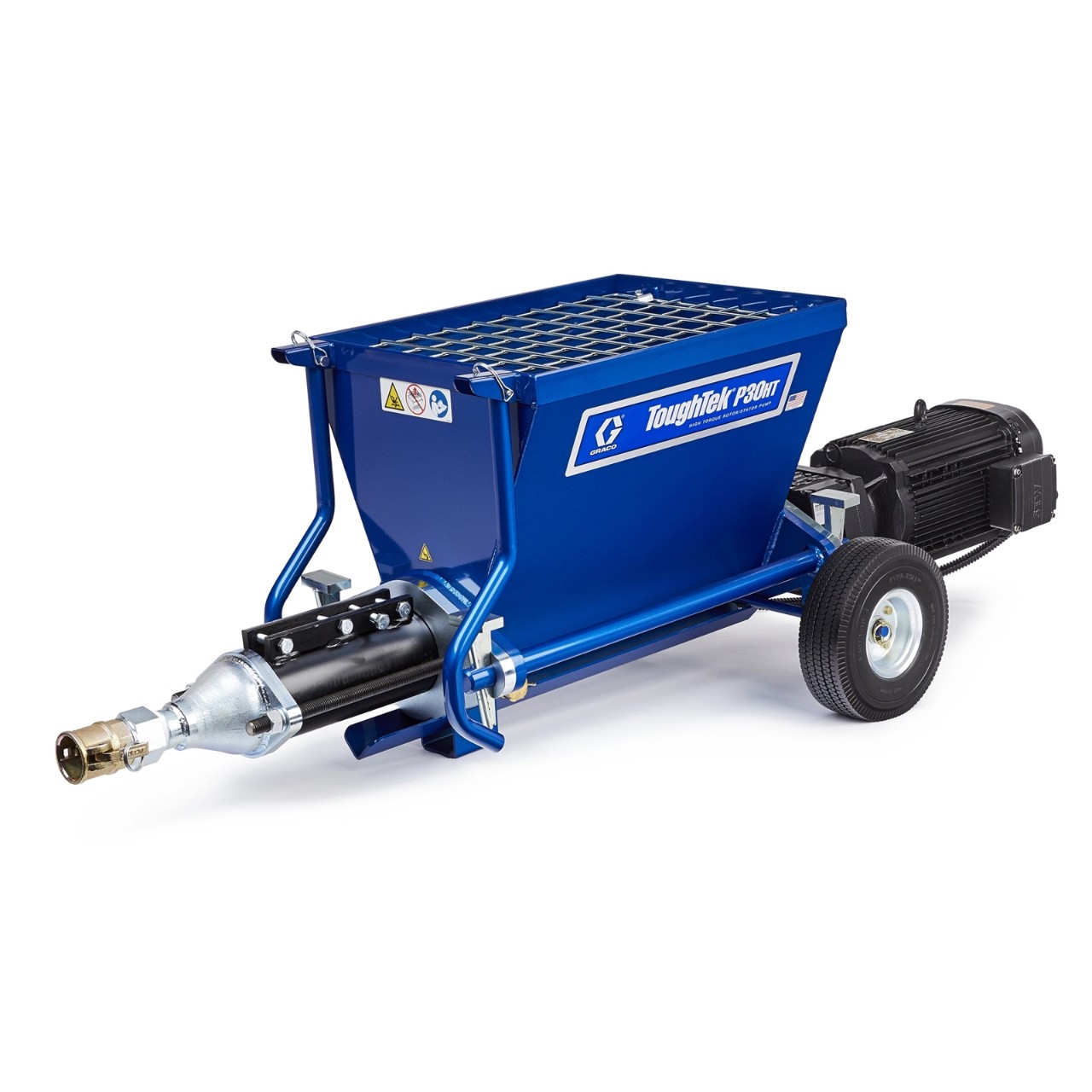

ToughTek P30HT Rotor Stator Pump Package, 230V, 30A, 1Ph
Part Number: 25M132
ToughTek P30HT
ToughTek P30HT Rotor Stator Pump Package, 230V, 30A, 1Ph
Part Number: 25M132
If you like the compact size of the P20 rotor stator pump, but are looking for more output, the ToughTek P30HT is the perfect fit for your business. Upgrade to this pump if you plan to use epoxy-based mortars (or other thick high-viscosity materials) or plan to spray taller buildings, such as sport ...
More InfoIf you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
If you like the compact size of the P20 rotor stator pump, but are looking for more output, the ToughTek P30HT is the perfect fit for your business. Upgrade to this pump if you plan to use epoxy-based mortars (or other thick high-viscosity materials) or plan to spray taller buildings, such as sport stadiums, high-rises, apartment complexes, hospitals and parking garages to name a few.
Built for mid-range mortar applications
- Easy to use, easy to move
- Variable pump output lets you adjust material flow
- Optional remote control operation
- Flow rate: 10 gpm (38 lpm)
- Output (underlayment): 200 bags per hour (based on 50-lb/22.6 kg bags)
- Pumping distance: 100 feet + (30 m)
- Pumping height: 60 feet (18 m)
- Reversible pump direction
- Hopper capacity: 19 Gal (72 L)
- Power requirements: 230V, 30A, 1-ph
Specifications & Documents
Technical Specifications
Convert to Metric| Compatible Material | Water-Based Material |
|---|---|
| Construction | Tool Steel, Painted Steel, Plated Steel, PORON |
| Fluid Inlet Size (in) | 3.8 |
| Fluid Outlet Size (in) | 1-1/3 |
| Fluid Outlet Thread Gender | Male |
| Fluid Outlet Thread Type | NPT |
| Hopper Capacity (gal) | 16 |
| Includes | Applicator, Hose, Adapter |
| Material Output (bags/hr) | 30 |
| Maximum Flow Rate (GPM) | 9.8 |
| Maximum Hose Length (ft) | 150 |
| Maximum Input Amperage (A) | 30 |
| Maximum Operating Temperature (°F) | 120 |
| Maximum Solid Size (in) | 1/4 |
| Maximum Speed (RPM) | 186 |
| Maximum Working Pressure (MPa) | 2.1 |
| Maximum Working Pressure (psi) | 300 |
| Minimum Operating Temperature (°F) | 32 |
| Model | ToughTek |
| Phase | 1 |
| Series | P30HT |
| Sound Pressure Level (dB(A)) | 88 |
| Type | Electric Rotor Stator Pump |
| Voltage (V ac) | 230 |
| Weight (lb) | 320 |
| Compatible Material | Water-Based Material |
| Construction | Tool Steel, Painted Steel, Plated Steel, PORON |
| Fluid Inlet Size (in) | 3.8 |
| Fluid Inlet Size (mm) | 96.5 |
| Fluid Outlet Size (in) | 1-1/3 |
| Fluid Outlet Size (mm) | 33.87 |
| Fluid Outlet Thread Gender | Male |
| Fluid Outlet Thread Type | NPT |
| Includes | Applicator, Hose, Adapter |
| Material Output (bags/hr) | 30 |
| Maximum Flow Rate (L/min) | 37.1 |
| Maximum Input Amperage (A) | 30 |
| Maximum Operating Temperature (°C) | 49 |
| Maximum Solid Size (mm) | 6 |
| Maximum Speed (RPM) | 186 |
| Maximum Working Pressure (MPa) | 2.1 |
| Maximum Working Pressure (bar) | 21 |
| Maximum Working Pressure (kPa) | 2100 |
| Maximum Working Pressure (psi) | 300 |
| Minimum Operating Temperature (°C) | 0 |
| Model | ToughTek |
| Phase | 1 |
| Series | P30HT |
| Sound Pressure Level (dB(A)) | 88 |
| Type | Electric Rotor Stator Pump |
| Voltage (V ac) | 230 |
| Weight (kg) | 145 |
