Auto

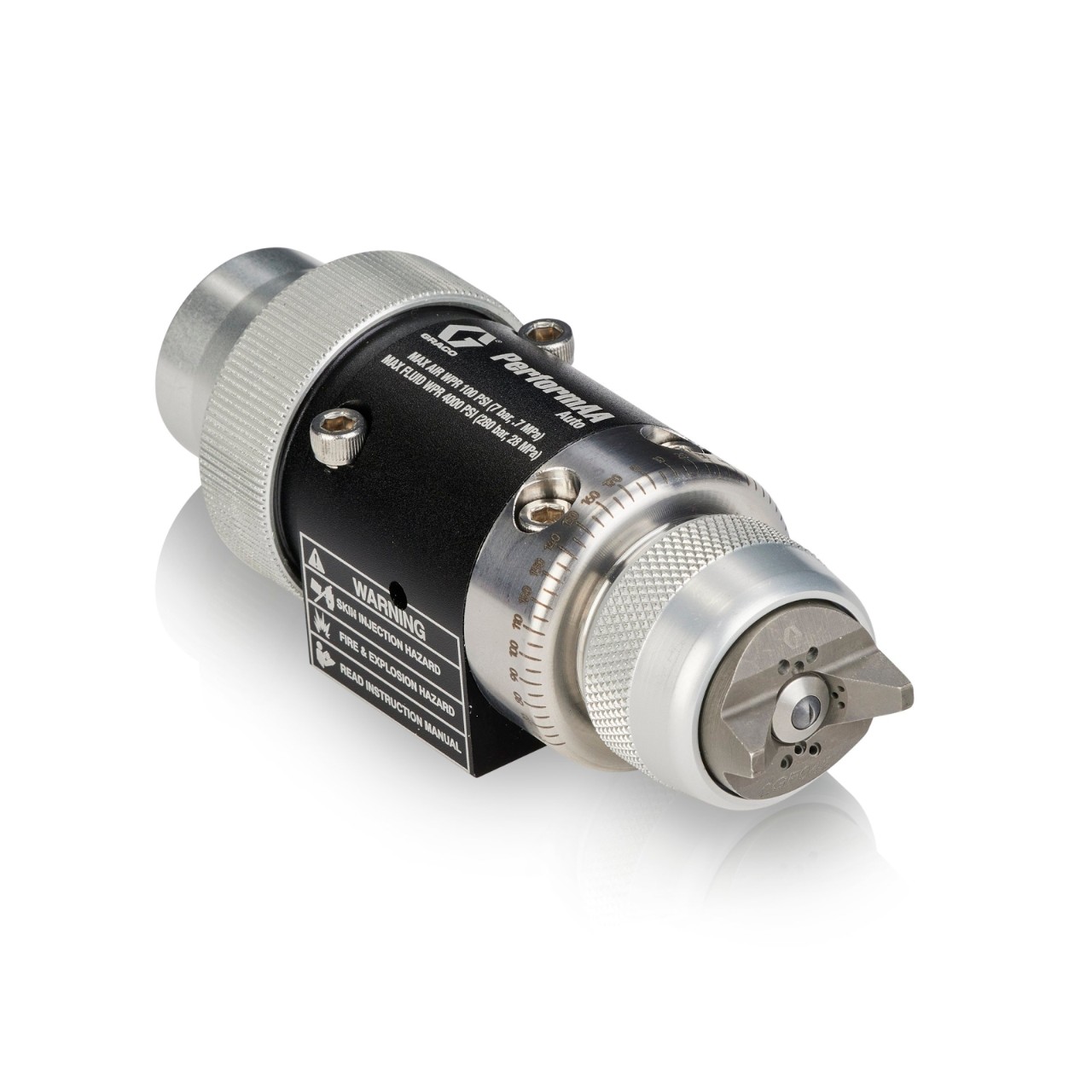

PerformAA Auto Air Assist Spray Gun with General Finishing (GF) air cap

Part Number: 26B570

Image is for illustrative purposes only.

Auto

PerformAA Auto Air Assist Spray Gun with General Finishing (GF) air cap

Part Number: 26B570

Automatic air-assisted spray gun delivers performance above all for all general finishing needs.
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
Automatic air-assisted spray gun delivers performance above all for all general finishing needs.
  • Automatic air-assisted sprayer is easy to set up, use and service on flat lines, robots, reciprocators and other automated systems
  • Air cap angle indicators help operators and maintenance technicians set and quickly repeat the exact angle needed to optimize spray. For greater accuracy and ease, especially with flat line finishing, add the Graco Gauge kit 26B736.
  • Manifold options, including a rear port for robots or compact spaces, have the same tool center point as legacy Graco automatic air-assisted spray guns.

Specifications & Documents

Technical Specifications

Convert to Metric
Air Inlet Size (in) 1/4
Air Inlet Thread Gender Male
Air Inlet Thread Type NPSM
Applicator Type Automatic
Bleed Type Bleeder
Body Material Metal
Compatible Material Epoxies, High Solids, Lacquer, Latex, Plural Component Materials, Polyurethane, Solventborne, Urethane, UV Coating, Varnish
Fluid Inlet Size (in) 1/4
Fluid Inlet Thread Type NPSM
Gun Activation Automatic
Gun Type Air-Assisted Gun
Gun Weight (lb) 1.2
Gun Weight (oz) 19.2
Maximum Air Inlet Pressure (MPa) 0.7
Maximum Air Inlet Pressure (psi) 100
Maximum Air Pressure (MPa) 0.7
Maximum Air Pressure (psi) 100
Maximum Fluid Pressure (MPa) 28
Maximum Fluid Pressure (psi) 4000
Maximum Fluid Temperature (°F) 120
Overall Height (in) 3
Overall Length (in) 5.3
Overall Width (in) 2
Product Type Spray Gun
Purge Method Air
Series Auto
Sound Power Level (dB(A)) 91.9
Sound Pressure Level (dB(A)) 91.75
Spray Type Air-Assisted
Type Spray Gun
Air Inlet Size (cm) 0.635
Air Inlet Size (mm) 6.35
Air Inlet Thread Gender Male
Air Inlet Thread Type NPSM
Applicator Type Automatic
Bleed Type Bleeder
Body Material Metal
Compatible Material Epoxies, High Solids, Lacquer, Latex, Plural Component Materials, Polyurethane, Solventborne, Urethane, UV Coating, Varnish
Fluid Inlet Size (cm) 0.635
Fluid Inlet Size (mm) 6.35
Fluid Inlet Thread Type NPSM
Gun Activation Automatic
Gun Type Air-Assisted Gun
Gun Weight (g) 544
Gun Weight (kg) 0.544
Maximum Air Inlet Pressure (MPa) 0.7
Maximum Air Inlet Pressure (bar) 7
Maximum Air Inlet Pressure (kPa) 700
Maximum Air Pressure (MPa) 0.7
Maximum Air Pressure (bar) 7
Maximum Air Pressure (kPa) 700
Maximum Fluid Pressure (MPa) 28
Maximum Fluid Pressure (bar) 280
Maximum Fluid Pressure (kPa) 28000
Maximum Fluid Temperature (°C) 49
Overall Height (cm) 7.6
Overall Height (mm) 76.2
Overall Length (cm) 13
Overall Length (mm) 135
Overall Width (cm) 5.1
Overall Width (mm) 50.8
Product Type Spray Gun
Purge Method Air
Series Auto
Sound Power Level (dB(A)) 91.9
Sound Pressure Level (dB(A)) 91.75
Spray Type Air-Assisted
Type Spray Gun
