Finex
Finex Air Spray Package with Conventional Finex Gun, 0.055 in (1.4 mm) needle/ nozzle size
289353
The Finex air spray package includes a Husky 307 diaphragm pump and a Finex spray gun. This combination makes it the perfect solution for a variety of applications, including custom wood shops and job shops.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product BrochureThe Finex air spray package includes a Husky 307 diaphragm pump and a Finex spray gun. This combination makes it the perfect solution for a variety of applications, including custom wood shops and job shops.
- Small and lightweight package on a 2-legged stand is easy to transport
- Finex Pressure Feed gun provides high quality spray performance
- Durable Husky 307 pump with stainless steel components

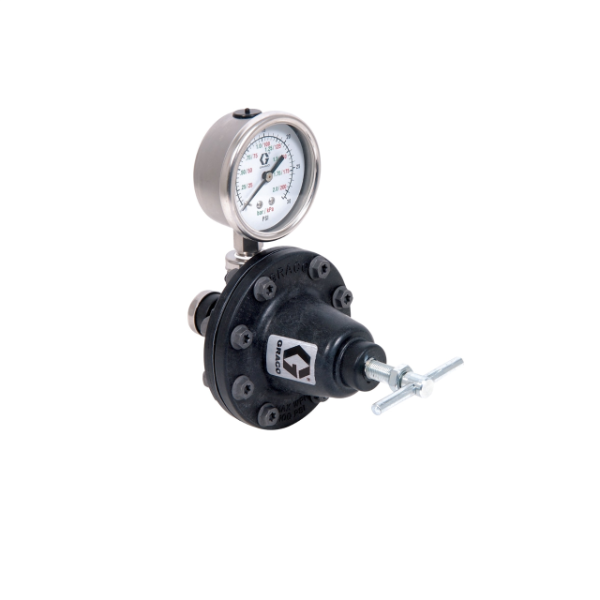

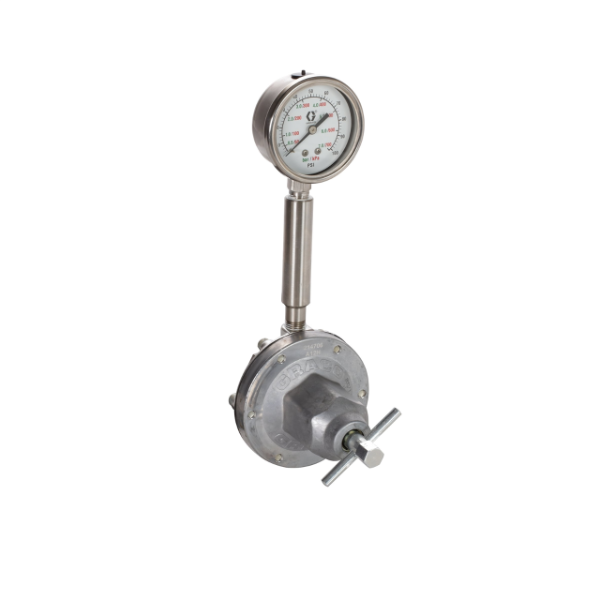

- Low pulsation output due to fluid regulator
- Package includes a 25 foot (7.6 m) air and fluid hose
Specifications & Documents
Technical Specifications
Convert to MetricCompatible Material | Latex, Lacquer, Metallics, Stains, Single Components, Solventborne Paints, Solventborne, Varnish Primers |
---|---|
Feed Type | Suction Hose |
Fluid Inlet Size (in) | 3/8 |
Fluid Inlet Thread Type | NPT |
Fluid Outlet Size (in) | 3/8 |
Fluid Outlet Thread Type | NPT |
Gun Activation | Manual |
Gun Included | 1 |
Gun Technology | Conventional |
Gun Type | Air Spray |
Includes | 25 ft Air Hose, 25 ft Fluid Hose, Regulator, Conventional Gun |
Maximum Air Inlet Pressure (psi) | 100 |
Maximum Flow Rate (GPM) | 7 |
Maximum Working Pressure (psi) | 100 |
Mount Location | Stand Mount |
Mount Type | Stand Mount |
Power Source | Air |
Pressure Type | Low Pressure |
Product Type | Spray Package |
Pump Ratio | 1:1 |
Pump Type | Pneumatic Diaphragm Pump |
Spray Type | Air-Powered |
Sprayer Type | Air Spray |
Technology Type | Conventional |
Type | Air-Powered Sprayer |
Weight (lb) | 19.84 |
Wetted Material | Acetal, PTFE, Stainless Steel, Aluminum, Engineered Plastic, Nylon |
Compatible Material | Latex, Lacquer, Metallics, Stains, Single Components, Solventborne Paints, Solventborne, Varnish Primers |
Feed Type | Suction Hose |
Fluid Inlet Size (cm) | 0.9525 |
Fluid Inlet Size (mm) | 9.525 |
Fluid Inlet Thread Type | NPT |
Fluid Outlet Size (cm) | 0.9525 |
Fluid Outlet Size (mm) | 9.525 |
Fluid Outlet Thread Type | NPT |
Gun Activation | Manual |
Gun Included | 1 |
Gun Technology | Conventional |
Gun Type | Air Spray |
Includes | 25 ft Air Hose, 25 ft Fluid Hose, Regulator, Conventional Gun |
Maximum Air Inlet Pressure (bar) | 7 |
Maximum Air Inlet Pressure (kPa) | 700 |
Maximum Flow Rate (L/min) | 26.5 |
Maximum Working Pressure (bar) | 7 |
Maximum Working Pressure (kPa) | 700 |
Maximum Working Pressure (kg/cm²) | 7.03 |
Mount Location | Stand Mount |
Mount Type | Stand Mount |
Power Source | Air |
Pressure Type | Low Pressure |
Product Type | Spray Package |
Pump Ratio | 1:1 |
Pump Type | Pneumatic Diaphragm Pump |
Spray Type | Air-Powered |
Sprayer Type | Air Spray |
Technology Type | Conventional |
Type | Air-Powered Sprayer |
Weight (kg) | 9 |
Wetted Material | Acetal, PTFE, Stainless Steel, Aluminum, Engineered Plastic, Nylon |
Repair Parts
Part No. | Description |
---|---|
24J883 | Needle, Nozzle, Air Cap Kit for Finex Side Cup Gravity Feed Conventional, 0.055 inch (1.4 mm) Nozzle |
237210 | Polypropylene Split Manifold Kit for Husky 307 Pumps |
239952 | Air Valve Replacement Kit for 307 3/8 in. Air-Operated Double-Diaphragm Transfer Pumps |
24F061 | Trigger Repair Kit with SST Trigger for Finex Conventional and HVLP Guns (excludes Mini-HVLP) for 0.039-0.098 inch (1.0-2.5 mm) Nozzle |
24J879 | Needle, Nozzle, Air Cap Kit for Finex Side Cup Gravity Feed HVLP, 0.047 inch (1.2 mm) Nozzle |
24J881 | Needle, Nozzle, Air Cap Kit for Finex Side Cup Gravity Feed Conventional, 0.040 inch (1.0 mm) Nozzle |
222011 | Ground wire for grounding pump and other components and equipment in the spray location, 12 gauge, 25 ft (7.6 m) |
239014 | Diaphragm Shaft Kit |
24J880 | Needle, Nozzle, Air Cap Kit for Finex Side Cup Gravity Feed HVLP, 0.055 inch (1.4 mm) Nozzle |
24J882 | Needle, Nozzle, Air Cap Kit for Finex Side Cup Gravity Feed Conventional, 0.047 inch (1.2 mm) Nozzle |
237211 | Acetal Dual Manifold Kit for Husky 307 Pumps |
