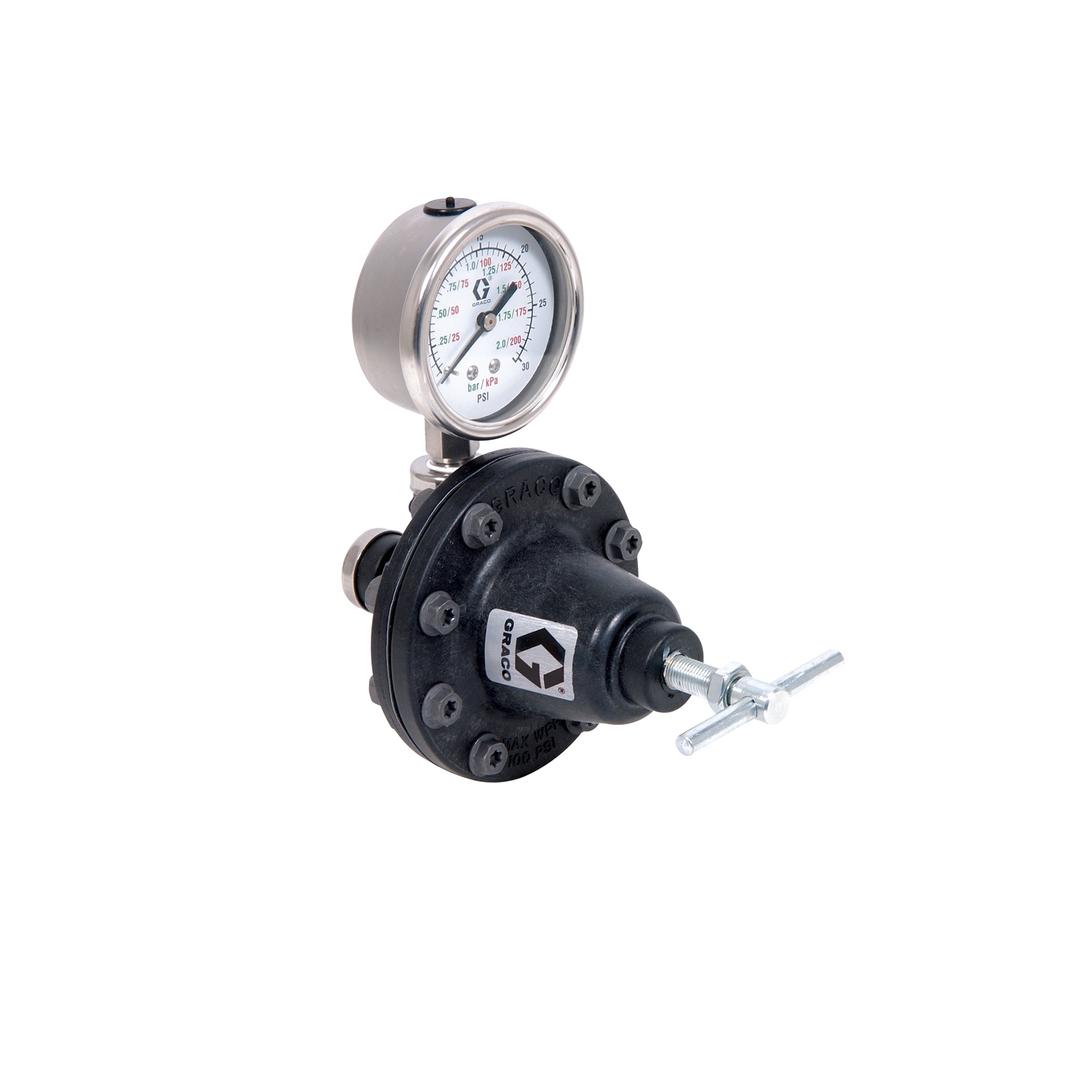

Low Pressure Lightweight Fluid Regulator, 3-30 psi (0.2-2 bar), 0.5 gpm, Acetal, Air, 1/4(f) x 1/4(f), 1/4(f) Port

241976

Low Pressure Lightweight Fluid Regulator, 3-30 psi (0.2-2 bar), 0.5 gpm, Acetal, Air, 1/4(f) x 1/4(f), 1/4(f) Port

241976

Fluid pressure regulators control pressure of the downstream fluid, allowing operators to accurately control the pressure to guns, applicators and dispense valves. This ensures the process is stable and maintains the optimal conditions needed for a smooth paint finish, consistent extrusion or steady... More Info

Find a Distributor Request a Quote

Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Low Pressure Lightweight Fluid Regulator, 3-30 psi (0.2-2 bar), 0.5 gpm, Acetal, Air, 1/4(f) x 1/4(f), 1/4(f) Port

241976

Find a Distributor

Features

Product Brochure

Fluid pressure regulators control pressure of the downstream fluid, allowing operators to accurately control the pressure to guns, applicators and dispense valves. This ensures the process is stable and maintains the optimal conditions needed for a smooth paint finish, consistent extrusion or steady flow.

Lightweight composite material is compatible with waterborne materials
PTFE, stainless steel seat, and carbide ball provide wear resistance
Pressure adjustment key with locking mechanism protects production settings
Air operated model provides easy automation opportunities

Product Brochure

Specifications

Technical Specifications

Convert to Metric

Actuation Type	Spring
Gauge Port Size (in)	1/4
Gauge Port Type	NPT
Includes	Regulator Only
Inlet Size (in)	1/4
Inlet Thread Type	NPT
Maximum Flow Rate (GPM)	0.5
Maximum Regulated Pressure (psi)	30
Maximum Viscosity (cP)	1000
Maximum Working Pressure (MPa)	0.7
Maximum Working Pressure (psi)	100
Minimum Regulated Pressure (psi)	3
Outlet Size (in)	1/4
Type	Fluid Regulator
Wetted Material	Acetal
Actuation Type	Spring
Gauge Port Size (cm)	0.635
Gauge Port Size (mm)	6.35
Gauge Port Type	NPT
Includes	Regulator Only
Inlet Size (cm)	0.635
Inlet Size (mm)	6.35
Inlet Thread Type	NPT
Maximum Flow Rate (L/min)	1.89
Maximum Regulated Pressure (MPa)	0.21
Maximum Regulated Pressure (bar)	2.1
Maximum Regulated Pressure (kPa)	210
Maximum Viscosity (cP)	1000
Maximum Working Pressure (MPa)	0.7
Maximum Working Pressure (bar)	7
Maximum Working Pressure (kPa)	700
Minimum Regulated Pressure (MPa)	0.02
Minimum Regulated Pressure (bar)	0.2
Minimum Regulated Pressure (kPa)	20
Outlet Size (cm)	0.635
Outlet Size (mm)	6.35
Type	Fluid Regulator
Wetted Material	Acetal

Product Manuals

306563L, Low Pressure Fluid Regulators, Instructions-Parts Manual, English (174 KB)

309474T, Manual, Low Pressure Fluid Regulators, Instructions, English (1 MB)

307212ZAG, Fluid Pressure Regulators, Instructions, English (309 KB)

308325E Fluid Pressure Regulators (474 KB)
