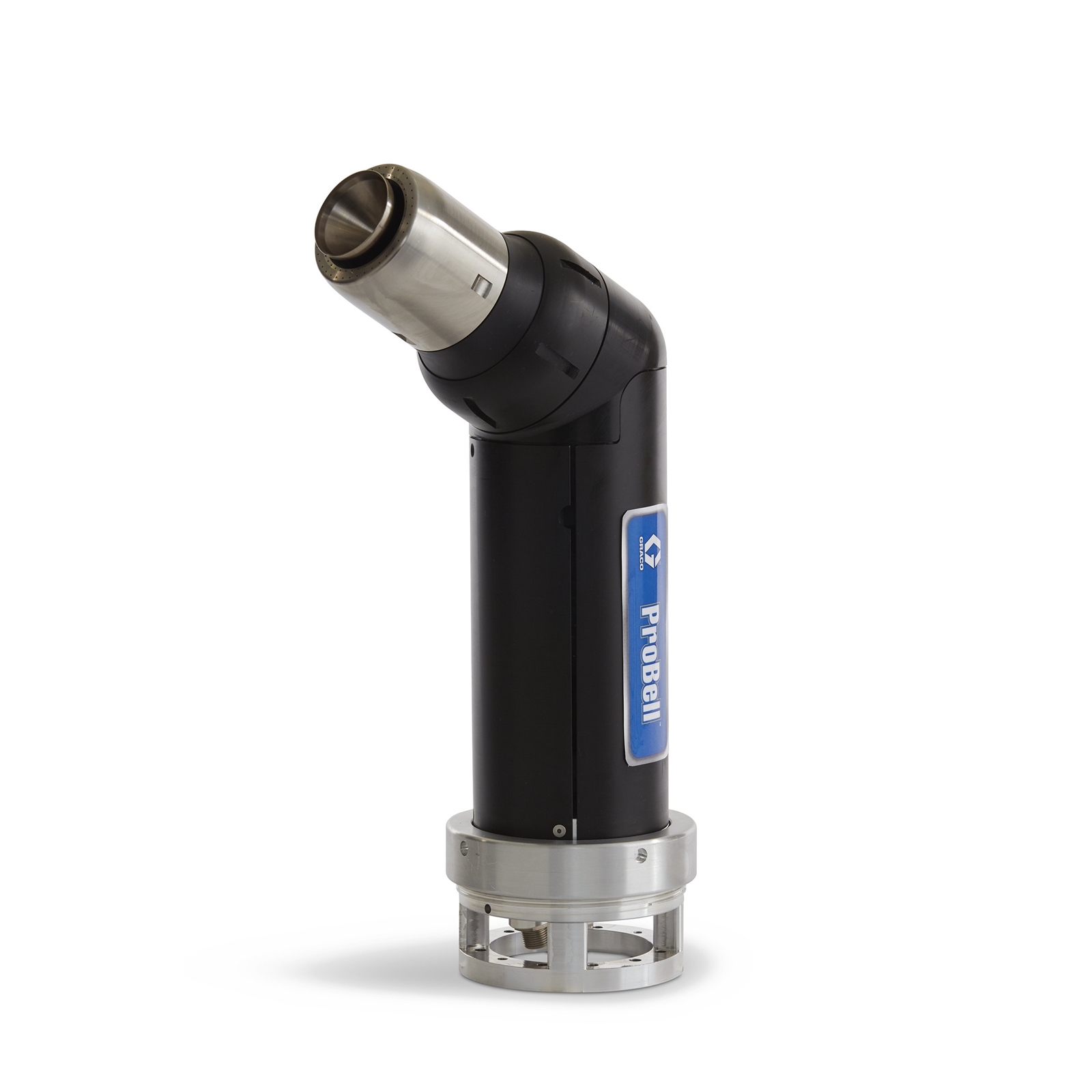

ProBell Applicator System, Hollow Wrist Robot, Solventborne, 50 mm bell cup, 1.25 mm nozzle and R5A250 applicator

Part Number: P5A250

product image product image
Image is for illustrative purposes only.

ProBell

ProBell Applicator System, Hollow Wrist Robot, Solventborne, 50 mm bell cup, 1.25 mm nozzle and R5A250 applicator

Part Number: P5A250

Adding rotary bell atomization to electrostatics is proven to provide up to 95 percent transfer efficiency. This ProBell system integrates with hollow wrist robots. A quick disconnect plate allows you to remove the electrostatic spray gun from the robot without touching hose connections, making main... More Info
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
Adding rotary bell atomization to electrostatics is proven to provide up to 95 percent transfer efficiency. This ProBell system integrates with hollow wrist robots. A quick disconnect plate allows you to remove the electrostatic spray gun from the robot without touching hose connections, making maintenance easy.

ProBell delivers the spray performance, pattern and finish quality needed to exceed in any industry. Applications for which the rotary bell atomizer has proven itself include Tier 1 automotive, architectural panels and extruded aluminum, wood products, and more.

  • User-friendly controller interface lets operators easily manage spray parameters.
  • Coiled fluid tube controls electrostatic resistivity for a wide range of material.
  • Rotary bell atomizer has an aluminum bell cup with serrated edge. Equally spaced axial grooves act as channels for paint flow, producing uniform particles - ideal for atomizing difficult material like clear coats.

Specifications & Documents

Technical Specifications

Convert to Metric
Applicator Type Automatic
Bell Cup Edge Type Serrated
Bell Cup Material Aluminum Standard
Bell Cup Size (in) 2.0
Compatible Paint Type Solventborne
For Use With R5A250 Applicator System
Gun Activation Automatic
Gun Model Solventborne
Gun Mount Hollow Wrist
Gun Type Rotary Applicator
Maximum Air Pressure (MPa) 0.7
Maximum Air Pressure (psi) 100
Maximum Current Draw (µA) 150
Maximum Fluid Pressure (MPa) 1.03
Maximum Fluid Pressure (psi) 150
Maximum Turbine Speed (RPM) 60000
Maximum Viscosity (cSt) 150
Maximum Working Pressure (MPa) 1
Maximum Working Pressure (psi) 150
Minimum Bearing Air Pressure (MPa) 0.5
Minimum Bearing Air Pressure (psi) 70
Minimum Viscosity (cSt) 30
Model ProBell
Nozzle Size (in) 0.049
Output Voltage (kV) 100
Spray Type Rotary Bell, Electrostatic
Technology Type Rotary Atomization
Type Rotary Applicator
Applicator Type Automatic
Bell Cup Edge Type Serrated
Bell Cup Material Aluminum Standard
Bell Cup Size (cm) 5
Bell Cup Size (in) 2.0
Bell Cup Size (mm) 50
Compatible Paint Type Solventborne
For Use With R5A250 Applicator System
Gun Activation Automatic
Gun Model Solventborne
Gun Mount Hollow Wrist
Gun Type Rotary Applicator
Maximum Air Pressure (MPa) 0.7
Maximum Air Pressure (bar) 7.0
Maximum Air Pressure (kPa) 700
Maximum Air Pressure (psi) 100
Maximum Current Draw (µA) 150
Maximum Fluid Pressure (MPa) 1.03
Maximum Fluid Pressure (bar) 10.3
Maximum Fluid Pressure (kPa) 1030
Maximum Fluid Pressure (psi) 150
Maximum Turbine Speed (RPM) 60000
Maximum Viscosity (cSt) 150
Maximum Working Pressure (MPa) 1
Maximum Working Pressure (bar) 10.3
Maximum Working Pressure (kPa) 1030
Maximum Working Pressure (psi) 150
Minimum Bearing Air Pressure (MPa) 0.5
Minimum Bearing Air Pressure (bar) 5
Minimum Bearing Air Pressure (psi) 70
Minimum Viscosity (cSt) 30
Model ProBell
Nozzle Size (cm) 0.125
Nozzle Size (mm) 1.25
Output Voltage (kV) 100
Spray Type Rotary Bell, Electrostatic
Technology Type Rotary Atomization
Type Rotary Applicator

Product Manuals

CAD Drawings

Installation & Service Videos

Learn how to install and connect a ProBell rotary bell applicator on a hollow wrist robot mount. Get step-by-step instructions on how to keep the automatic electrostatic atomizer in good working order.
