SaniForce 2150 HS

SaniForce 2.0 HS Series Pneumatic Diaphragm Pump, 2150, S01A, SSA, SS, SP, S, C21

Part Number: SP2B.0016

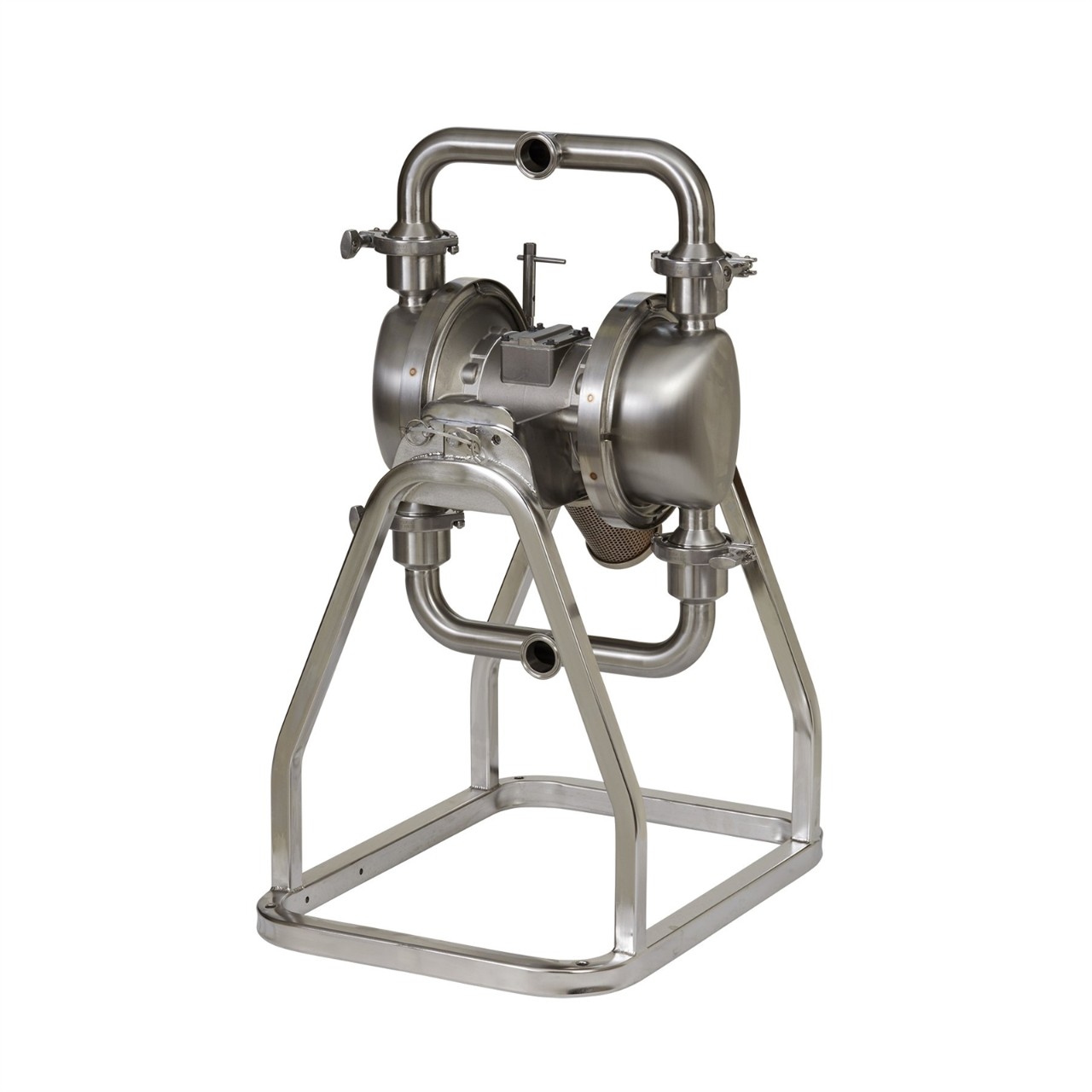

product image

SaniForce 2150 HS

SaniForce 2.0 HS Series Pneumatic Diaphragm Pump, 2150, S01A, SSA, SS, SP, S, C21

Part Number: SP2B.0016

SaniForce pneumatic diaphragm pumps are designed to meet requirements for the most rigorous food, beverage, personal care, and pharmaceutical transfer applications. SaniForce AODD pumps reduce the amount of tri-clamps and gaskets utilized in the fluid path creating a pump that is easier to sanitize ... More Info
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

SaniForce pneumatic diaphragm pumps are designed to meet requirements for the most rigorous food, beverage, personal care, and pharmaceutical transfer applications. SaniForce AODD pumps reduce the amount of tri-clamps and gaskets utilized in the fluid path creating a pump that is easier to sanitize and clean as well as quicker and easier to disassemble and maintain. Handle solids up to 3.8 inches in diameter and allow for vertical and horizontal pump installation. 316L stainless steel fluid section and multiple elastomer options provide flexibility to handle almost any material and cleaning chemical. Elastomer options for high temperature fluids or steam cleaning options.

Sanitary pneumatic diaphragm pumps with size ranging from 1 inch up to 4 inch (101 mm)

  • Flow rates up to 150 gpm (567 lpm) and pressure up to 125 psi (8.6 bar)
  • Handle solids up to 3.8" (96.5 mm) in diameter
  • Single piece manifolds reduce tri-clamps and gaskets creating a cleaner fluid path and design.
  • Surface finish options or 125, 32, or 20 Ra
  • Multiple approval and certification options: 3A, ATEX, USP Class VI, CE, 3.1 certification
  • Optional leak sensors notify users when processes may be compromised
  • 316L stainless steel wetted section
  • Multiple internal elastomers to be compatible with you material and cleaning chemicals
  • Tri-clamp and sanitary DIN connections available

Specifications & Documents

Technical Specifications

Convert to Metric
Air Exhaust Port Size (in) 3/4
Air Exhaust Port Thread Gender Female
Air Exhaust Port Thread Type NPT
Air Inlet Size (in) 1/2
Air Inlet Thread Gender Female
Air Inlet Thread Type NPT
Application Sanitary
Ball Material Santoprene
Center Section Material Stainless Steel
Compatible Material Edible Oil, Food, Personal Care
Connection Type Tri-Clamp
Construction Stainless Steel, Santoprene
Diaphragm Compatible Material Santoprene
Diaphragm Material Santoprene
Fluid Inlet Size (in) 2
Fluid Outlet Size (in) 2
Fluid Section Material 316L Stainless Steel
For Use With Food, Personal Care
Manifold Configuration Center Port
Manifold O-Ring Material EPDM
Material Certification EN 1024:2004 Type 2.1 (Standard)
Maximum Air Consumption (SCFM) 200
Maximum Air Pressure (MPa) 0.827
Maximum Air Pressure (psi) 120
Maximum Cycle Rate (CPM) 135
Maximum Flow Rate (GPM) 150
Maximum Fluid Pressure (MPa) 0.827
Maximum Fluid Pressure (psi) 120
Maximum Operating Temperature (°F) 180
Maximum Solid Size (in) 0.5
Minimum Operating Temperature (°F) -40
Model SaniForce
Overall Height (in) 35.7
Power Source Pneumatic
Pump Ratio 1:1
Seat Material 316L Stainless Steel
Series 2150 HS
Standards Met CE, ATEX, FDA Compliant Materials
Type Pneumatic Diaphragm Pump
Weight (lb) 111
Air Exhaust Port Size (in) 3/4
Air Exhaust Port Thread Gender Female
Air Exhaust Port Thread Type NPT
Air Inlet Size (in) 1/2
Air Inlet Thread Gender Female
Air Inlet Thread Type NPT
Application Sanitary
Ball Material Santoprene
Center Section Material Stainless Steel
Compatible Material Edible Oil, Food, Personal Care
Connection Type Tri-Clamp
Construction Stainless Steel, Santoprene
Diaphragm Compatible Material Santoprene
Diaphragm Material Santoprene
Fluid Inlet Size (cm) 5.08
Fluid Inlet Size (in) 2
Fluid Inlet Size (mm) 50.8
Fluid Outlet Size (cm) 5.08
Fluid Outlet Size (in) 2
Fluid Outlet Size (mm) 50.8
Fluid Section Material 316L Stainless Steel
For Use With Food, Personal Care
Manifold Configuration Center Port
Manifold O-Ring Material EPDM
Material Certification EN 1024:2004 Type 2.1 (Standard)
Maximum Air Pressure (MPa) 0.827
Maximum Air Pressure (bar) 8.27
Maximum Air Pressure (kPa) 827
Maximum Air Pressure (psi) 120
Maximum Cycle Rate (CPM) 135
Maximum Flow Rate (L/min) 568
Maximum Fluid Pressure (MPa) 0.827
Maximum Fluid Pressure (bar) 8.27
Maximum Fluid Pressure (kPa) 827
Maximum Fluid Pressure (psi) 120
Maximum Operating Temperature (°C) 82
Maximum Solid Size (cm) 1.27
Maximum Solid Size (mm) 12.7
Minimum Operating Temperature (°C) -40
Model SaniForce
Power Source Pneumatic
Pump Ratio 1:1
Seat Material 316L Stainless Steel
Series 2150 HS
Standards Met CE, ATEX, FDA Compliant Materials
Type Pneumatic Diaphragm Pump

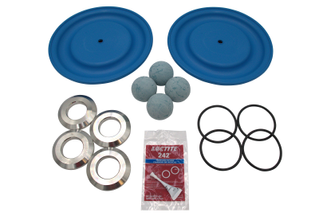

Repair Parts

Part No. Description
255061 Air Valve Repair Kit
