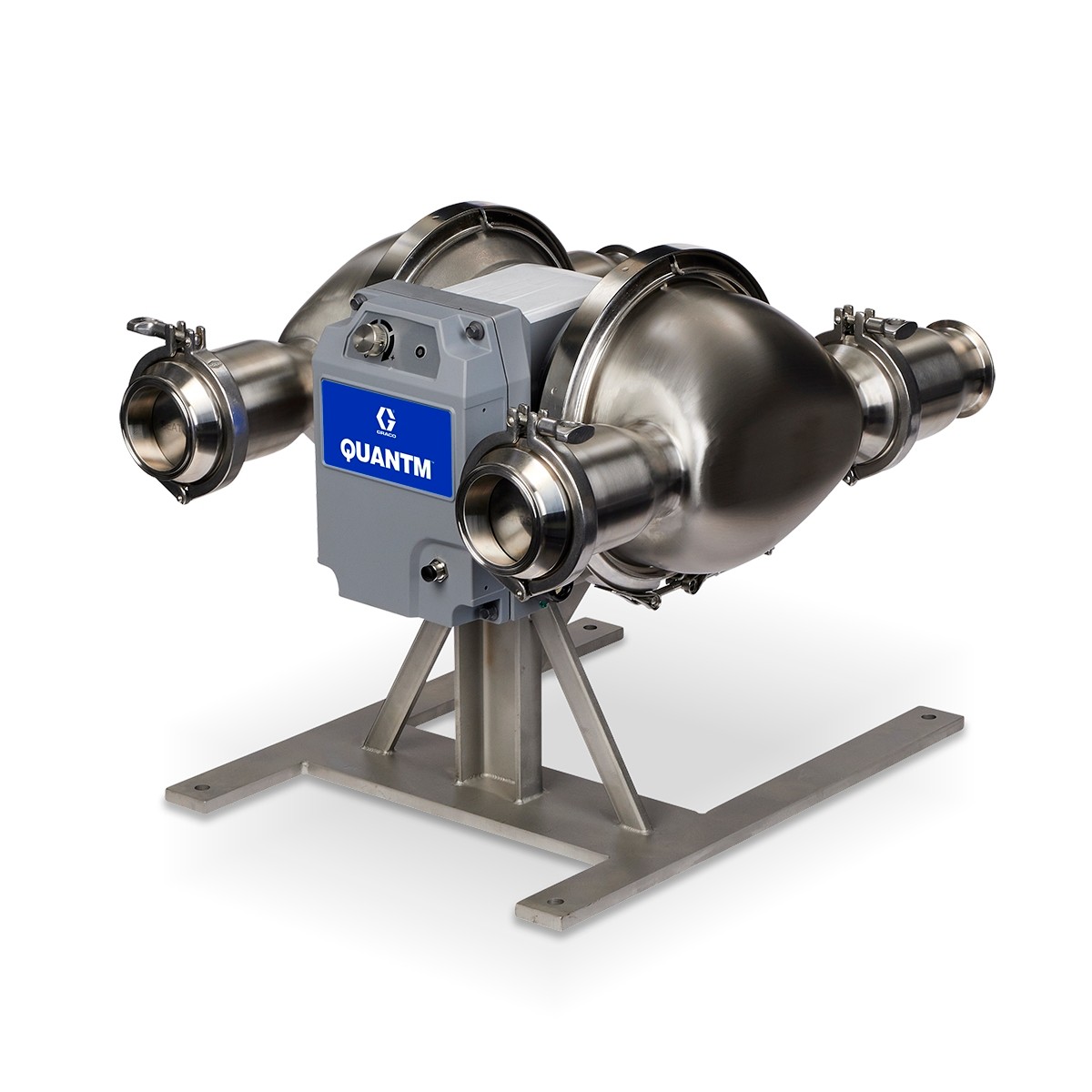

QUANTM Large Particle EODD pumps handle solids up to 3.8 inches without damage, ideal for meat, poultry, fruit fillings, and ice cream variegates. With self-priming, seal-less design, and smooth flow, they upgrade inefficient air-operated pumps. The powerful XT motor and drive delivers 8x more torque at low speeds, while plug-and-play 120V, 240V and 480V installation fits AODD footprints with no extra investment.

• Efficiency
  • Up to 80% more efficient than AODD, 50% more efficient compared to competitive electric technologies—displacing fossil fuel, hydraulics, and air power
• Quick Knockdown Design
  • Designed with DIN or Tri-clamp fluid connections, designed for CIP-applications
• Automation
  • I/O port for integration with plant PLC enabling remote and hands-free management
• Versatility
  • Wide operating range and material compatibility—handles abrasives, solids, and shear-sensitive materials
• Xtreme Torque Motor Technology
  • Operates at much lower RPM than competitive electric pump technology, increasing torque and power density while minimizing size and resistance losses
• Overmolded Diaphragm Plates
  • Designed with PTFE on the fluid side and EPDM on the air side
  • Does not contain crevices that can harbor bacteria
• Unique Stall Feature
  • The only electric diaphragm pump on the market that stalls under pressure, eliminating the need for pressure sensors and additional controllers and reducing downtime by preventing pump failures caused by clogged lines or closed valves
