InvisiPac HM10

InvisiPac HM10 System, 4 Channel, 480 Voltage

Part Number: 20B718

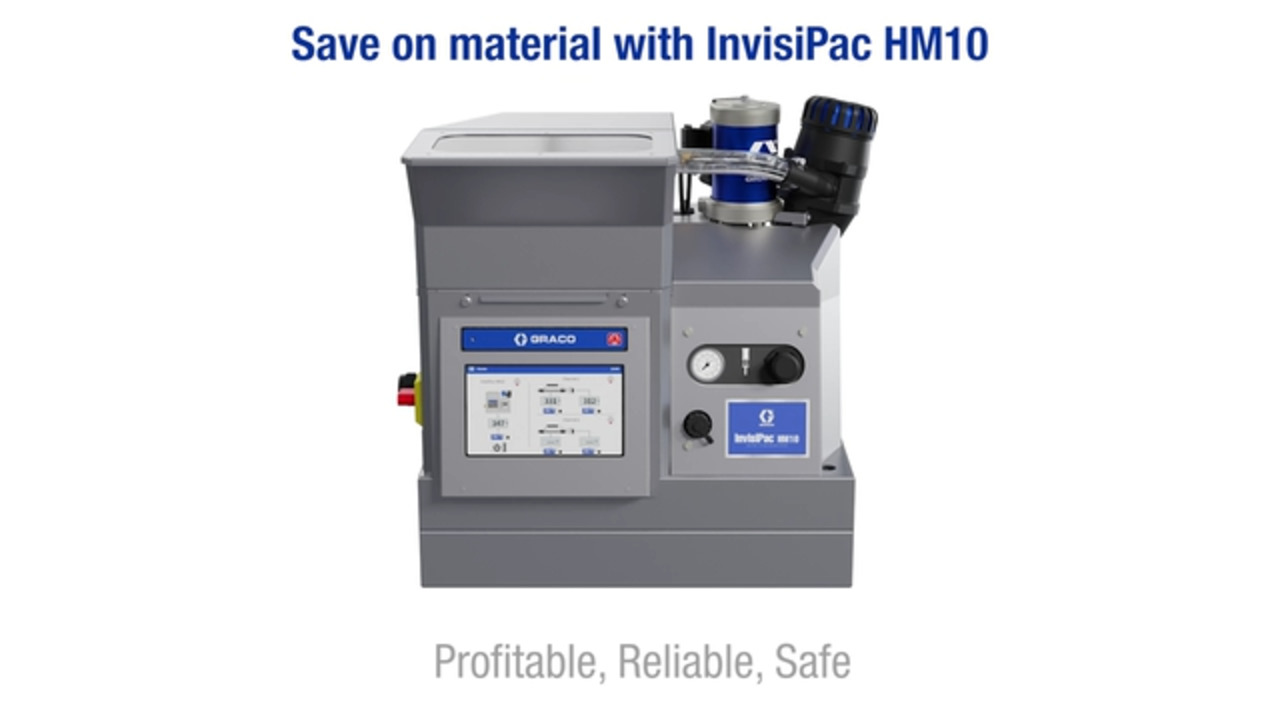

product image
Video Player is loading.
Current Time 0:00
Duration 0:00
Loaded: 0%
Stream Type LIVE
Remaining Time 0:00

1x
  • Chapters
  • descriptions off, selected
  • captions off, selected
    Video Player is loading.
    Current Time 0:00
    Duration 0:00
    Loaded: 0%
    Stream Type LIVE
    Remaining Time 0:00

    1x
    • Chapters
    • descriptions off, selected
    • captions off, selected
      Image is for illustrative purposes only.

      InvisiPac HM10

      InvisiPac HM10 System, 4 Channel, 480 Voltage

      Part Number: 20B718

      With a 10 pound (4.5 kilogram) per hour melt rate, this hot melt system brings profitability, reliability and safety to case and carton sealing.
      Questions About this Product?

      If you’re not finding the information you need, ask one of our experts.

      Ask an Expert

      Features

      Product Brochure
      With a 10 pound (4.5 kilogram) per hour melt rate, this hot melt system brings profitability, reliability and safety to case and carton sealing.

      Tank-Free™ melter dispenses adhesive at low flow, low volume rates for case and carton sealing, labeling, side seaming, and applications involving small packaging.

      • Four channel dispense accommodates four Plug-Free™ applicators and four heated hoses.
      • On-board hopper holds 20 pounds (9 kilograms) of hot melt pellets and is part of the unit, saving space at the end of any packaging line.
      • The hopper is unheated and has a clear lid, preventing burn injuries and helping operators easily see when to add more hot melt adhesive pellets.
      • Touchscreen with intuitive user interface makes it easy for packaging line operators and maintenance technicians to monitor and control temperature, flow and material use.
      • 10-minute start-up time saves energy and reduces waste.
      • Melt-on-demand system conserves adhesive and drastically reduces downtime due to charring.
      • First-in-first-out (FIFO) melter keeps adhesive at the right temperature and viscosity for dispense, preventing thermal shock and charring.

      Specifications & Documents

      Technical Specifications

      Convert to Metric
      Air Inlet Size (in) 0.375
      Ambient/Warm Melt/Hot Melt Hot Melt
      Amperage (A) 16
      Application Bonding
      Applicator Type Automatic
      Channels 4
      Component Type Single Component
      Construction Aluminum, PTFE, Stainless Steel, Brass, Chrome, Zinc Plating, Carbon Steel, Carbide, Chemically Resistant O-Rings
      Gun Activation Automatic
      Maximum Air Inlet Pressure (psi) 100
      Maximum Operating Temperature (°F) 400
      Maximum Working Pressure (psi) 1200
      Model InvisiPac
      Overall Depth (in) 13
      Overall Height (in) 23.85
      Phase 3
      Power Source Electric
      Power Type Electric
      Pump Ratio 12:1
      Series HM10
      Type Dispensing System
      Voltage (V ac) 400-480
      Air Inlet Size (in) 0.375
      Ambient/Warm Melt/Hot Melt Hot Melt
      Amperage (A) 16
      Application Bonding
      Applicator Type Automatic
      Channels 4
      Component Type Single Component
      Construction Aluminum, PTFE, Stainless Steel, Brass, Chrome, Zinc Plating, Carbon Steel, Carbide, Chemically Resistant O-Rings
      Gun Activation Automatic
      Maximum Air Inlet Pressure (bar) 7
      Maximum Air Inlet Pressure (psi) 100
      Maximum Operating Temperature (°C) 204
      Maximum Working Pressure (bar) 80
      Maximum Working Pressure (kPa) 8000
      Maximum Working Pressure (psi) 1200
      Model InvisiPac
      Phase 3
      Power Source Electric
      Power Type Electric
      Pump Ratio 12:1
      Series HM10
      Type Dispensing System
      Voltage (V ac) 400-480
