LD

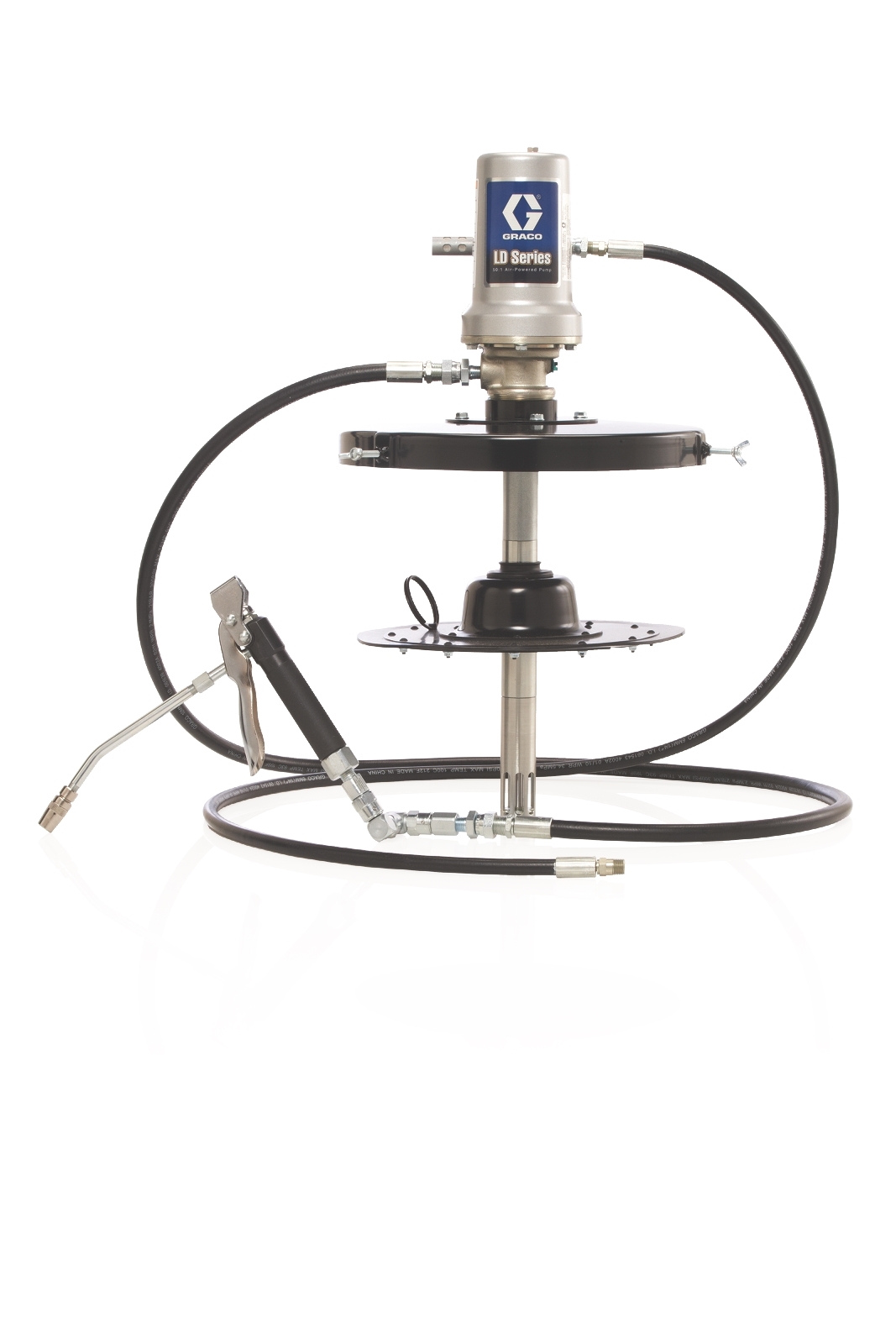

LD Series 50:1 35 lb (16 kg) Grease Pump - Stationary Package

Part Number: 24J030

product image product image product image
Image is for illustrative purposes only.
Image is for illustrative purposes only.
Image is for illustrative purposes only.

LD

LD Series 50:1 35 lb (16 kg) Grease Pump - Stationary Package

Part Number: 24J030

Stay ahead of the competition with LD Series pumps. These affordable and full-featured pumps are designed for lower-volume up to 7,000 lb./year (3175 kg./year) applications. LD pumps are fine-tuned for a compact, flexible and durable solution.

Questions About this Product?

If you're not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure

Stay ahead of the competition with LD Series pumps. These affordable and full-featured pumps are designed for lower-volume up to 7,000 lb./year (3175 kg./year) applications. LD pumps are fine-tuned for a compact, flexible and durable solution.

  • Three Inch Air Motor - Provides more power to create better flow.
  • Engineered for Durability - Patented cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution.
  • Modular Air Valve - Air inlet and exhaust locations are easy to configure with just four bolts for simple, hassle free installations.
  • Pilot Valves - Patented self-cleaning design increases reliability in dirty air environments and minimizes pressure drop with rapid changeovers for reduced stalling and smoother flow.

Specifications & Documents

Technical Specifications

Convert to Metric
Air Inlet Size (in) 0.25
Application Grease
Compatible Material Grease
Construction Steel, Brass, Nitrile Rubber, Polyurethane, UHMWPE, Acetal
Container Size (lb) 35
Fluid Outlet Size (in) 1/4
Maximum Working Pressure (MPa) 35
Maximum Working Pressure (psi) 5000
Model LD
Power Type Pneumatic
Pump Ratio 50:1
Type Piston Pump Package
Air Inlet Size (in) 0.25
Application Grease
Compatible Material Grease
Construction Steel, Brass, Nitrile Rubber, Polyurethane, UHMWPE, Acetal
Fluid Outlet Size (cm) 0.635
Fluid Outlet Size (in) 1/4
Fluid Outlet Size (mm) 6.35
Maximum Working Pressure (MPa) 35
Maximum Working Pressure (bar) 345
Maximum Working Pressure (kPa) 34500
Maximum Working Pressure (psi) 5000
Model LD
Power Type Pneumatic
Pump Ratio 50:1
Type Piston Pump Package

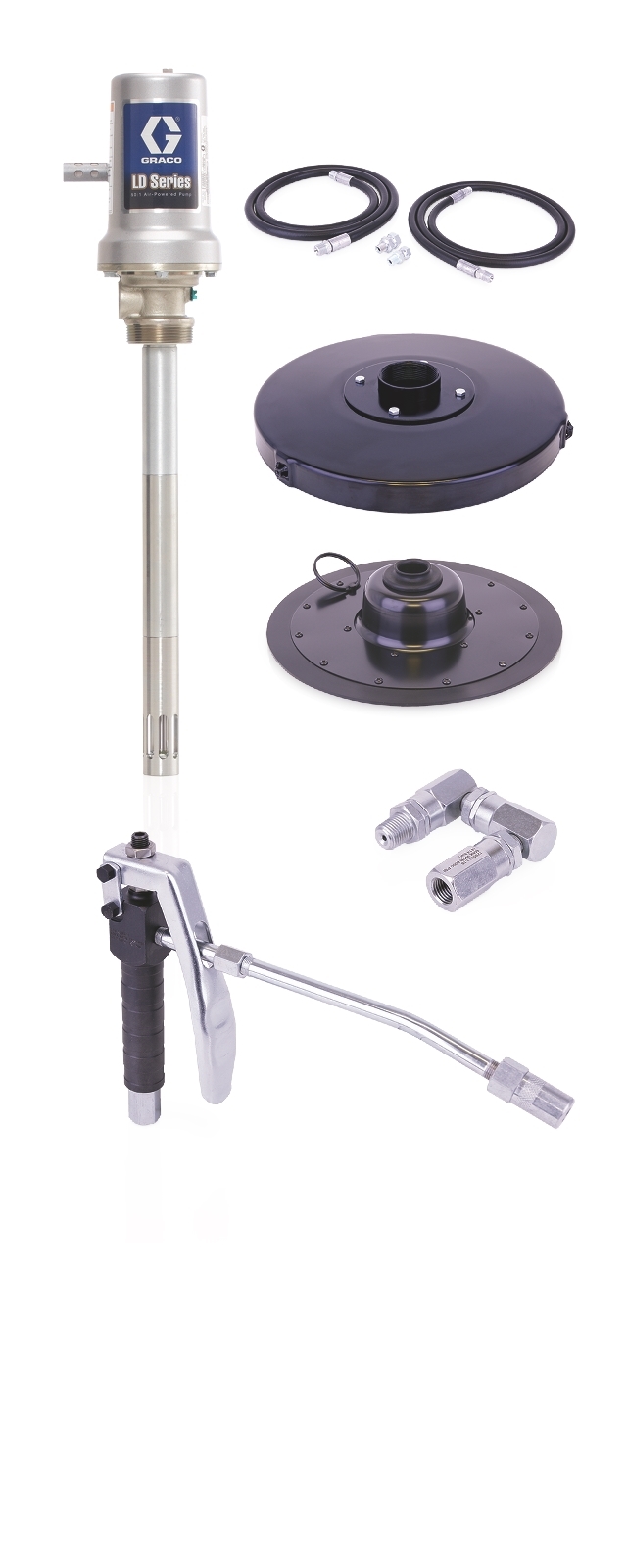

What's Included

Part No. Description Qty Unit
24G600 LD Series 50:1 Pump for 35 lb (16 kg). Pail - NPT ea
129581 VALVE, GREASE, 1/4" NPT ea
129591 LD Z-Swivel - NPT ea
