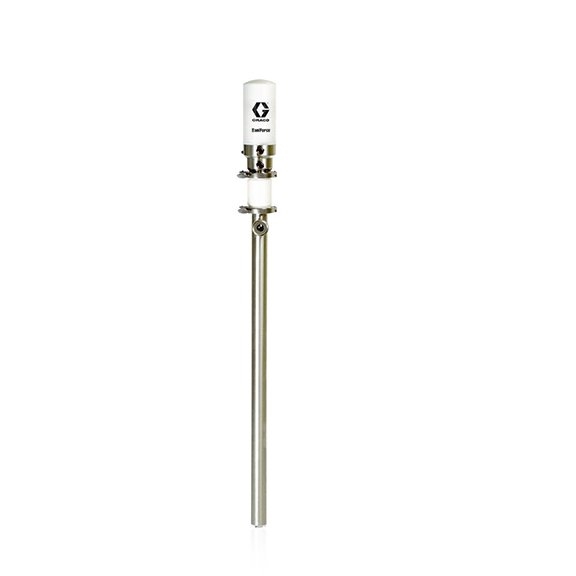

2:1 Ratio SaniForce Standard Drum Length Double Ball Piston Pump with PTFE & FKM Packings
Part Number: 24R047
SaniForce
2:1 Ratio SaniForce Standard Drum Length Double Ball Piston Pump with PTFE & FKM Packings
Part Number: 24R047
Easily transfer low to medium viscosity food and personal care materials up to 50,000 cps out of drums and totes. Graco's SaniForce 2:1 piston pump utilizes proven Graco air motor technology and smart sanitary design. The pump is extremely portable, weighing between 24 lb (10.8 kg) for the standard ...
More InfoIf you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
Easily transfer low to medium viscosity food and personal care materials up to 50,000 cps out of drums and totes. Graco's SaniForce 2:1 piston pump utilizes proven Graco air motor technology and smart sanitary design. The pump is extremely portable, weighing between 24 lb (10.8 kg) for the standard drum length and 26 lb (11.7 kg) for the long length. Plus, it fits through a standard bung hole.
Quick Knockdown Sanitary Piston Pump for Food and Personal Care Applications
SaniForce 2:1 Sanitary Piston Pump:
- Flow rates range from 1.5 gpm (5.7 lpm) at 60 cpm, up to 2.5 gpm (9.5 lpm) at 100 cpm
- Quick disconnect clamps for easy disassembly
- Fluid transfer and supply of materials up to 50,000 cps
- Suitable to pump products such as: fruit juice concentrates, creamy candy fillings, ice cream variegates, and cosmetics
Easy Mounting:
- SaniForce 2:1 pump fits through standard bung hole
- FDA-compliant bung adapter accessory available for easy mounting
Specifications & Documents
Technical Specifications
Convert to Metric| Air Inlet Size (in) | 3/8 |
|---|---|
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Sanitary |
| Compatible Material | Food, Personal Care |
| Construction | Stainless Steel, Acetal, PTFE, FKM, UHMWPE |
| Fluid Outlet Size (in) | 1 |
| For Use With | Food, Personal Care, & Pharmaceutical |
| Maximum Air Consumption (SCFM) | 6 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Continuous Cycle Rate (CPM) | 60 |
| Maximum Flow Rate (GPM) | 2.5 |
| Maximum Intermittent Cycle Rate (CPM) | 60 |
| Maximum Working Pressure (MPa) | 1.7 |
| Maximum Working Pressure (psi) | 250 |
| Model | SaniForce |
| Portable | Non-Portable |
| Pump Ratio | 2:1 |
| Seal Material | PTFE, Nitrile |
| Standards Met | FDA Compliant Materials, CE |
| Type | Pneumatic Piston Pump |
| Air Inlet Size (in) | 3/8 |
| Air Inlet Size (mm) | 9.525 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Sanitary |
| Compatible Material | Food, Personal Care |
| Construction | Stainless Steel, Acetal, PTFE, FKM, UHMWPE |
| Fluid Outlet Size (in) | 1 |
| Fluid Outlet Size (mm) | 25.4 |
| For Use With | Food, Personal Care, & Pharmaceutical |
| Maximum Air Inlet Pressure (bar) | 6.9 |
| Maximum Air Inlet Pressure (kPa) | 690 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Continuous Cycle Rate (CPM) | 60 |
| Maximum Flow Rate (L/min) | 9.46 |
| Maximum Intermittent Cycle Rate (CPM) | 60 |
| Maximum Working Pressure (MPa) | 1.7 |
| Maximum Working Pressure (bar) | 17 |
| Maximum Working Pressure (kPa) | 1700 |
| Maximum Working Pressure (psi) | 250 |
| Model | SaniForce |
| Portable | Non-Portable |
| Pump Ratio | 2:1 |
| Seal Material | PTFE, Nitrile |
| Standards Met | FDA Compliant Materials, CE |
| Type | Pneumatic Piston Pump |
