ProControl 1KE Plus

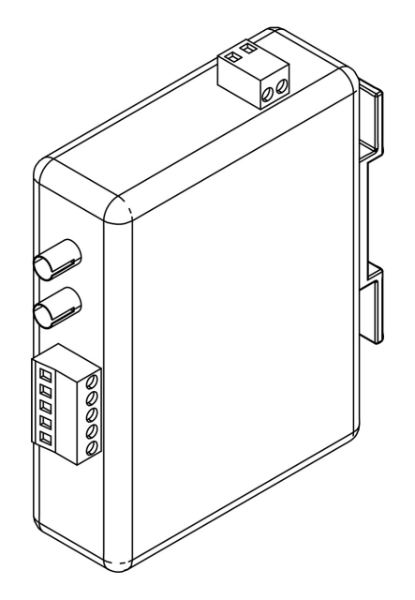

ProControl 1KE Plus Advanced Display Control Module (ADCM) with software and bracket only
Part Number: 25B283
Image is for illustrative purposes only.
ProControl 1KE Plus
ProControl 1KE Plus Advanced Display Control Module (ADCM) with software and bracket only
Part Number: 25B283
This ProControl 1KE Plus package makes one component (1K) fluid management simple and cost-effective. Add component(s) to customize for specific finishing needs.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
This ProControl 1KE Plus package makes one component (1K) fluid management simple and cost-effective. Add component(s) to customize for specific finishing needs.
- Advanced Display Control Module (ADCM) gives operator instant feedback by showing comprehensive system parameters and material usage on an easy-to-read screen.
- Settings protected by Personal Identification Number (PIN) security lock or limit adjustable ranges, helping ensure consistency and optimal results from operator to operator, job to job.
- Fluid management package works with manual paint spray guns or automatic spray applicators.
Specifications & Documents
Technical Specifications
Convert to Metric| Control Box Voltage (V dc) | 15 |
|---|---|
| Flow Control Type | Fluid Control, Controller only |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Operating Temperature (°F) | 120 |
| Minimum Operating Temperature (°F) | 32 |
| Model | ProControl |
| Power Source | Order separate |
| Series | 1KE Plus |
| System Type | Fluid Flow Control |
| Type | Control Module |
| Control Box Voltage (V dc) | 15 |
| Flow Control Type | Fluid Control, Controller only |
| Maximum Air Inlet Pressure (bar) | 7 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Operating Temperature (°C) | 50 |
| Minimum Operating Temperature (°C) | 0 |
| Model | ProControl |
| Power Source | Order separate |
| Series | 1KE Plus |
| System Type | Fluid Flow Control |
| Type | Control Module |
Product Manuals
Sales Literature
Certifications
MSD201EN, Loctite 567 Low Strength Thread Sealant, Safety Data Sheet, English
(141 KB)
(English Only)
