SoloTech h26

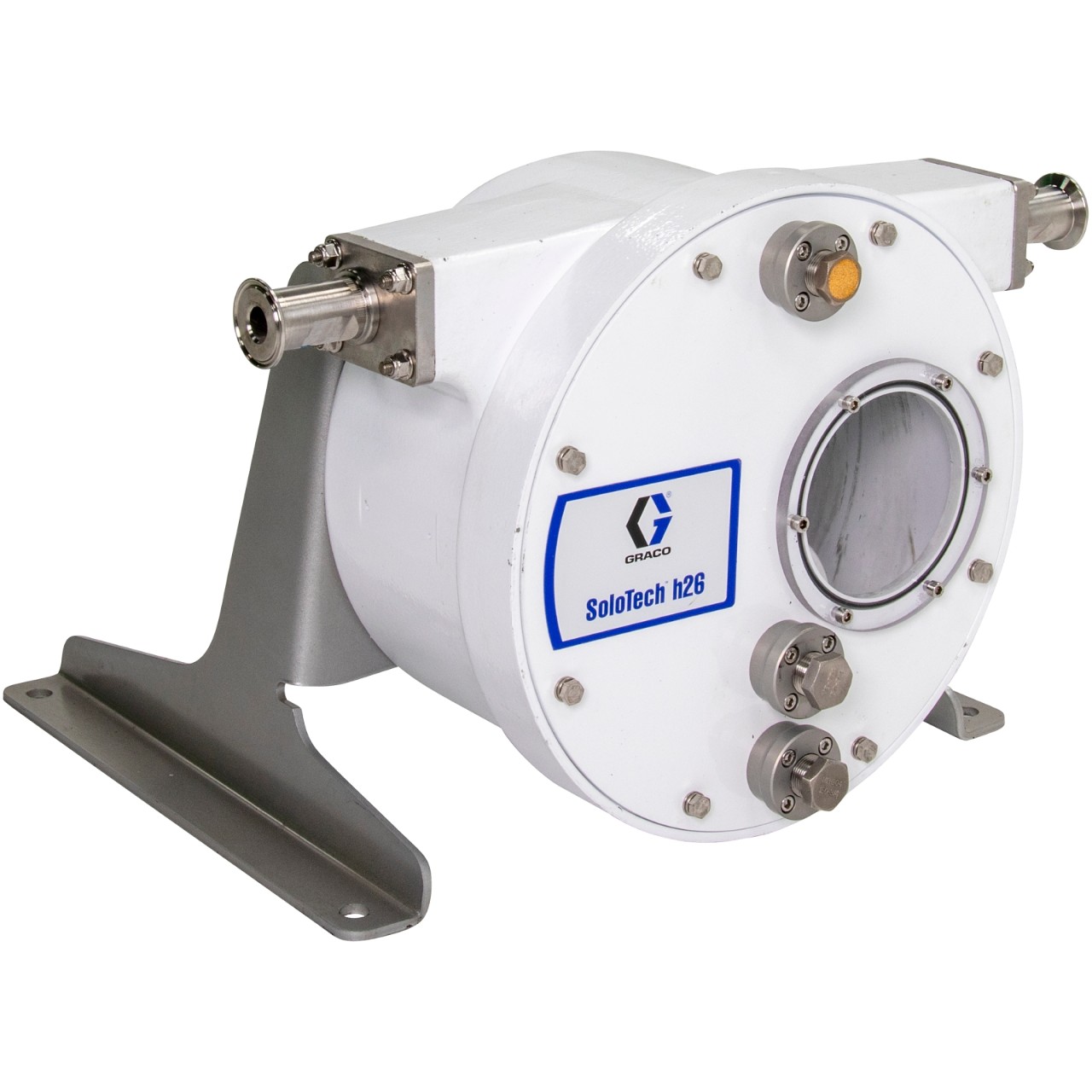

SoloTech™ h26 Peristaltic Pump, No Motor or gear reducer, FDA Nitrile Hose, SST Sanitary Clamp Barb
Part Number: 19D100
SoloTech h26
SoloTech™ h26 Peristaltic Pump, No Motor or gear reducer, FDA Nitrile Hose, SST Sanitary Clamp Barb
Part Number: 19D100
With only the hose in contact with the fluid being pumped and no check valves in line, Graco's SoloTech peristaltic pumps are ideal for materials other pumps can't handle.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
With only the hose in contact with the fluid being pumped and no check valves in line, Graco's SoloTech peristaltic pumps are ideal for materials other pumps can't handle.
For metering and dosing flavorants, colorants, solids, abrasives, and slurries for food, beverage, and personal care products.
- Single Roller Design
- The single roller compresses an engineered hose through a full 360 degrees of rotation. This reduces compressions, temperature, and friction; improving hose life.
- Hose Design
- SoloTech customers routinely experience fewer failures and perform much less maintenance compared to other pump technology.
- Hose Barb Assembly
- Easy to install or remove – no special tools needed
- 316 SST sanitary clamp design for easy cleaning
- Removable Cover
- Powder-coated aluminum cover with large sight window makes it easy to access and see internal parts
- Optional leak detector kit mounts on cover
- Pump Construction
- Powder-coated aluminum housing reduces pump weight
- Improved mounting flexibility with adjustable feet
- Pumps are reversible and can be used to empty lines or clear blockages
Specifications & Documents
Technical Specifications
Convert to Metric| Barb Material | 316 Stainless Steel |
|---|---|
| Gear Ratio | 0 |
| Hose Diameter (in) | 0.98 |
| Hose Diameter (mm) | 26 |
| Hose Material | FDA Nitrile |
| Housing Material | Powder Coated Aluminum |
| Inlet Size (in) | 2.0 |
| Inlet Thread Type | Tri-Clamp |
| Lubricant Material | FDA Glycerin |
| Maximum Flow Rate (GPH) | 0 |
| Maximum Flow Rate (GPM) | 0 |
| Maximum Fluid Pressure (psi) | 125 |
| Maximum Operating Temperature (°F) | 104 |
| Maximum Pump Speed (RPM) | 0 |
| Minimum Flow Rate (GPM) | 0 |
| Minimum Pump Speed (RPM) | 0 |
| Minimum Temperature (°F) | 14 |
| Model | SoloTech |
| Motor Type | None |
| Outlet Size (in) | 2.0 |
| Overall Height (in) | 16.5 |
| Overall Length (in) | 0 |
| Overall Width (in) | 21.7 |
| Power Rating (HP) | 0 |
| Power Rating (kW) | 0 |
| Series | h26 |
| Standards Met | FDA Compliant Materials, EC 1935/2004, CE |
| Type | Electric Peristaltic Pump |
| Voltage (V ac) | 230/460 |
| Voltage (V dc) | 0 |
| Barb Material | 316 Stainless Steel |
| Gear Ratio | 0 |
| Hose Diameter (cm) | 2.5 |
| Hose Diameter (in) | 0.98 |
| Hose Diameter (mm) | 26 |
| Hose Material | FDA Nitrile |
| Housing Material | Powder Coated Aluminum |
| Inlet Size (cm) | 5.1 |
| Inlet Size (in) | 2.0 |
| Inlet Size (mm) | 50.8 |
| Inlet Thread Type | Tri-Clamp |
| Lubricant Material | FDA Glycerin |
| Maximum Flow Rate (L/h) | 0 |
| Maximum Flow Rate (L/min) | 0 |
| Maximum Fluid Pressure (bar) | 8.6 |
| Maximum Fluid Pressure (kPa) | 861.8 |
| Maximum Fluid Pressure (psi) | 125 |
| Maximum Operating Temperature (°C) | 40 |
| Maximum Pump Speed (RPM) | 0 |
| Minimum Pump Speed (RPM) | 0 |
| Minimum Temperature (°C) | -10 |
| Model | SoloTech |
| Motor Type | None |
| Outlet Size (cm) | 5.1 |
| Outlet Size (in) | 2.0 |
| Outlet Size (mm) | 50.8 |
| Overall Height (cm) | 42 |
| Overall Height (mm) | 419 |
| Overall Length (cm) | 0 |
| Overall Length (mm) | 0 |
| Overall Width (cm) | 55 |
| Overall Width (mm) | 551 |
| Power Rating (kW) | 0 |
| Series | h26 |
| Standards Met | FDA Compliant Materials, EC 1935/2004, CE |
| Type | Electric Peristaltic Pump |
| Voltage (V ac) | 230/460 |
| Voltage (V dc) | 0 |
