President 2-Ball

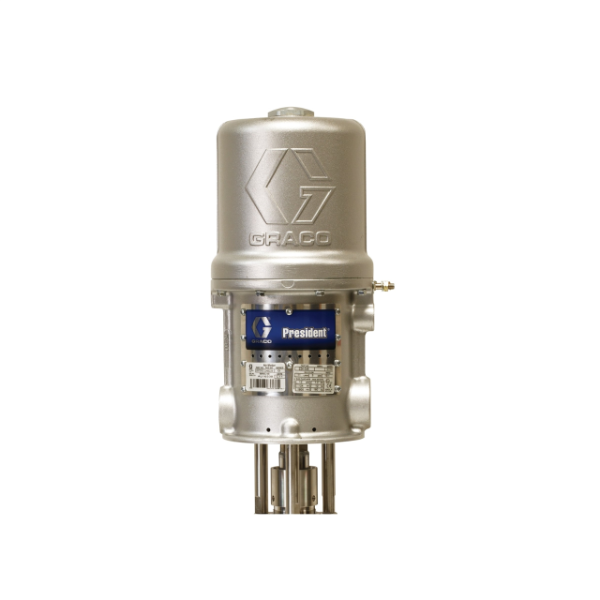

President 30:1 Pneumatic 2-Ball Piston Pump, Stubby Length
Part Number: 243664
Image is for illustrative purposes only.
President 2-Ball
President 30:1 Pneumatic 2-Ball Piston Pump, Stubby Length
Part Number: 243664
2-ball pneumatic piston pumps for a wide range of applications.
Product is Discontinued
Replacement Product Not Available
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
2-ball pneumatic piston pumps for a wide range of applications.
- Reliable President air motor designed for low maintenance operation and long life
- Positive displacement, 2-ball piston design provides uniform and easily controlled delivery
- Stainless steel or carbon steel models available to handle various fluids, including catalyzed materials
Specifications & Documents
Technical Specifications
Convert to Metric| Air Inlet Size (in) | 0.5 |
|---|---|
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Supply |
| Compatible Material | Waterborne, Solventborne, High Solids, Xirallic, CARC, Metallics, Topcoats, Stains, Varnish |
| Construction | Carbon Steel |
| Fluid Outlet Size (in) | 3/8 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| Fluid Section Type | 2-Ball |
| Includes | Stubby Length |
| Material | Carbon Steel |
| Maximum Air Inlet Pressure (psi) | 120 |
| Maximum Continuous Cycle Rate (CPM) | 60 |
| Maximum Flow Rate (GPM) | 1 |
| Maximum Operating Temperature (°F) | 180 |
| Maximum Working Pressure (MPa) | 12.4 |
| Maximum Working Pressure (psi) | 1800 |
| Model | President |
| Portable | Non-Portable |
| Pump Ratio | 30:1 |
| Seal Material | Tuff-Stack |
| Series | 2-Ball |
| Type | Pneumatic Piston Pump |
| Air Inlet Size (in) | 0.5 |
| Air Inlet Size (mm) | 12.7 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Supply |
| Compatible Material | Waterborne, Solventborne, High Solids, Xirallic, CARC, Metallics, Topcoats, Stains, Varnish |
| Construction | Carbon Steel |
| Fluid Outlet Size (in) | 3/8 |
| Fluid Outlet Size (mm) | 9.525 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| Fluid Section Type | 2-Ball |
| Includes | Stubby Length |
| Material | Carbon Steel |
| Maximum Air Inlet Pressure (bar) | 8.27 |
| Maximum Air Inlet Pressure (kPa) | 827 |
| Maximum Air Inlet Pressure (psi) | 120 |
| Maximum Continuous Cycle Rate (CPM) | 60 |
| Maximum Flow Rate (L/min) | 3.79 |
| Maximum Operating Temperature (°C) | 82 |
| Maximum Working Pressure (MPa) | 12.4 |
| Maximum Working Pressure (bar) | 124 |
| Maximum Working Pressure (kPa) | 12400 |
| Maximum Working Pressure (psi) | 1800 |
| Model | President |
| Portable | Non-Portable |
| Pump Ratio | 30:1 |
| Seal Material | Tuff-Stack |
| Series | 2-Ball |
| Type | Pneumatic Piston Pump |
Product Manuals
310566C President Circulation Packages, Wall Mount, Floor Stand and High Flo
(800 KB)
(English Only)
406137F - 235636 Repair Kit for Model 239175 Severe-Duty Displacement Pump, English
(101 KB)
(English Only)
CAD Drawings
243664-3D-EN.zip
(757 KB)
