ProDispense Fluid Panel Kit, Grease/ Paint Meter, wide viscosity, high accuracy
Part Number: 26A131

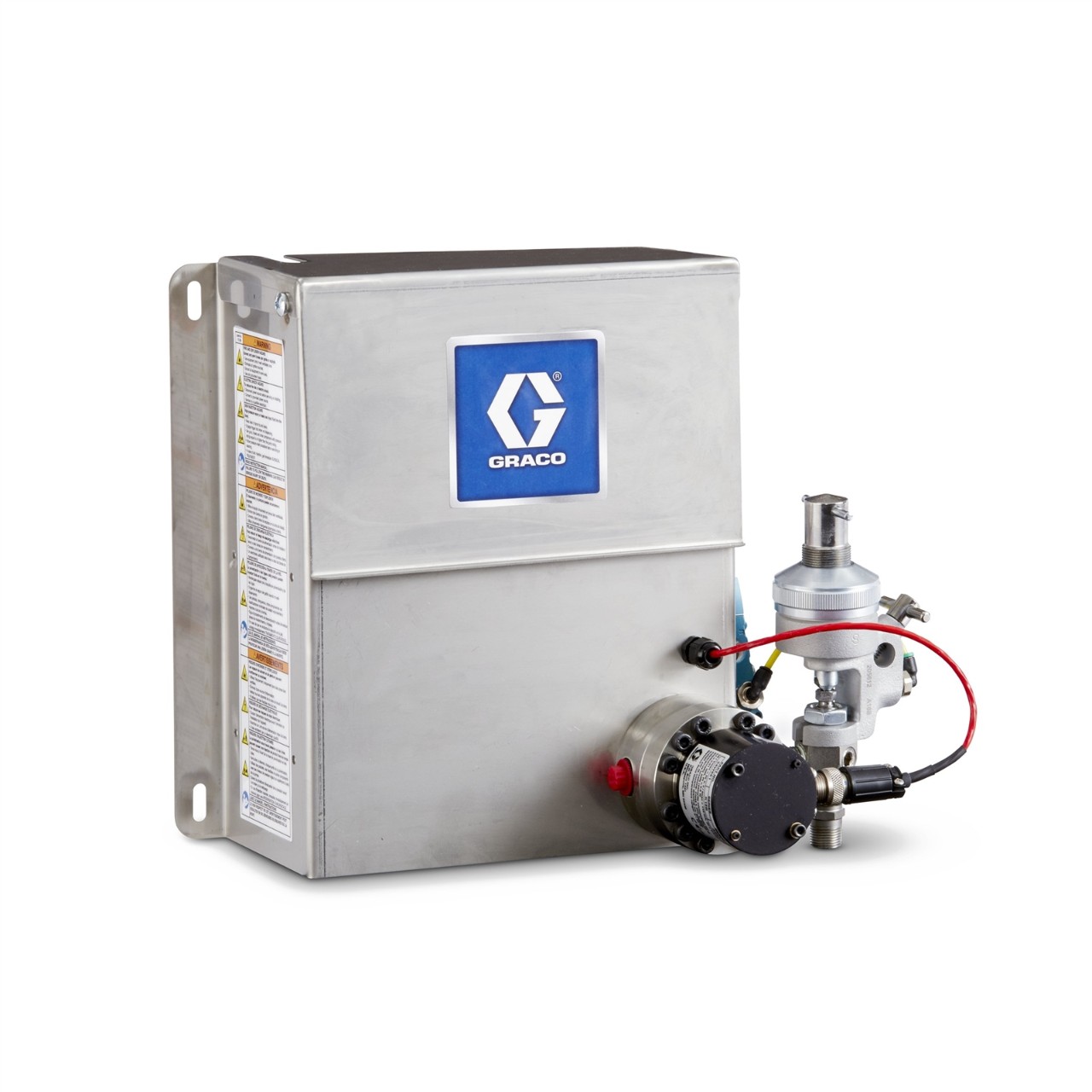

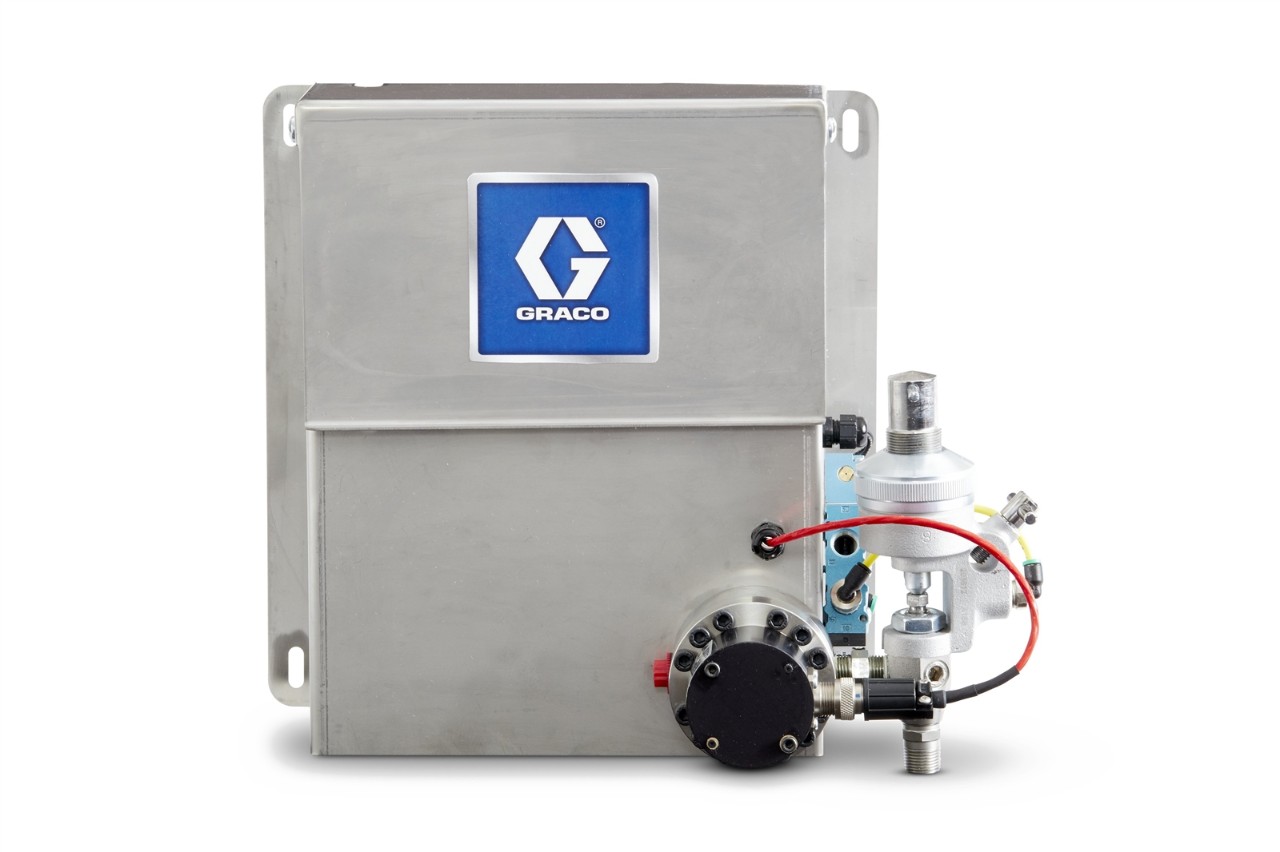

Image is for illustrative purposes only.
ProDispense
ProDispense Fluid Panel Kit, Grease/ Paint Meter, wide viscosity, high accuracy
Part Number: 26A131
This fluid panel kit for the ProDispense Electronic Preset Dispense System is ideal for grease and paint applications.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
This fluid panel kit for the ProDispense Electronic Preset Dispense System is ideal for grease and paint applications.
For grease and paint applications
Specifications & Documents
Technical Specifications
Convert to Metric| Air Inlet Size (in) | 5/32 |
|---|---|
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | Push |
| Fluid Inlet Size (in) | 1/4 |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (in) | 3/8 |
| Fluid Outlet Thread Gender | Male |
| Fluid Outlet Thread Type | NPT |
| For Use With | G3000 meter |
| Maximum Air Pressure (psi) | 102 |
| Maximum Flow Rate (GPM) | 1 |
| Maximum Working Pressure (psi) | 3000 |
| Minimum Flow Rate (GPM) | 0.02 |
| Model | ProDispense |
| Type | Fluid Panel |
| Weight (lb) | 18.5 |
| Air Inlet Size (in) | 5/32 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | Push |
| Fluid Inlet Size (in) | 1/4 |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (in) | 3/8 |
| Fluid Outlet Thread Gender | Male |
| Fluid Outlet Thread Type | NPT |
| For Use With | G3000 meter |
| Maximum Air Pressure (bar) | 7.03 |
| Maximum Air Pressure (kPa) | 703 |
| Maximum Air Pressure (psi) | 102 |
| Maximum Flow Rate (L/min) | 3.8 |
| Maximum Flow Rate (cc/min) | 3800 |
| Maximum Working Pressure (bar) | 207 |
| Maximum Working Pressure (psi) | 3000 |
| Model | ProDispense |
| Type | Fluid Panel |
| Weight (kg) | 8.4 |
